TR-2A
Transmission Argo Service Manual
Argo Transmission Disassembly

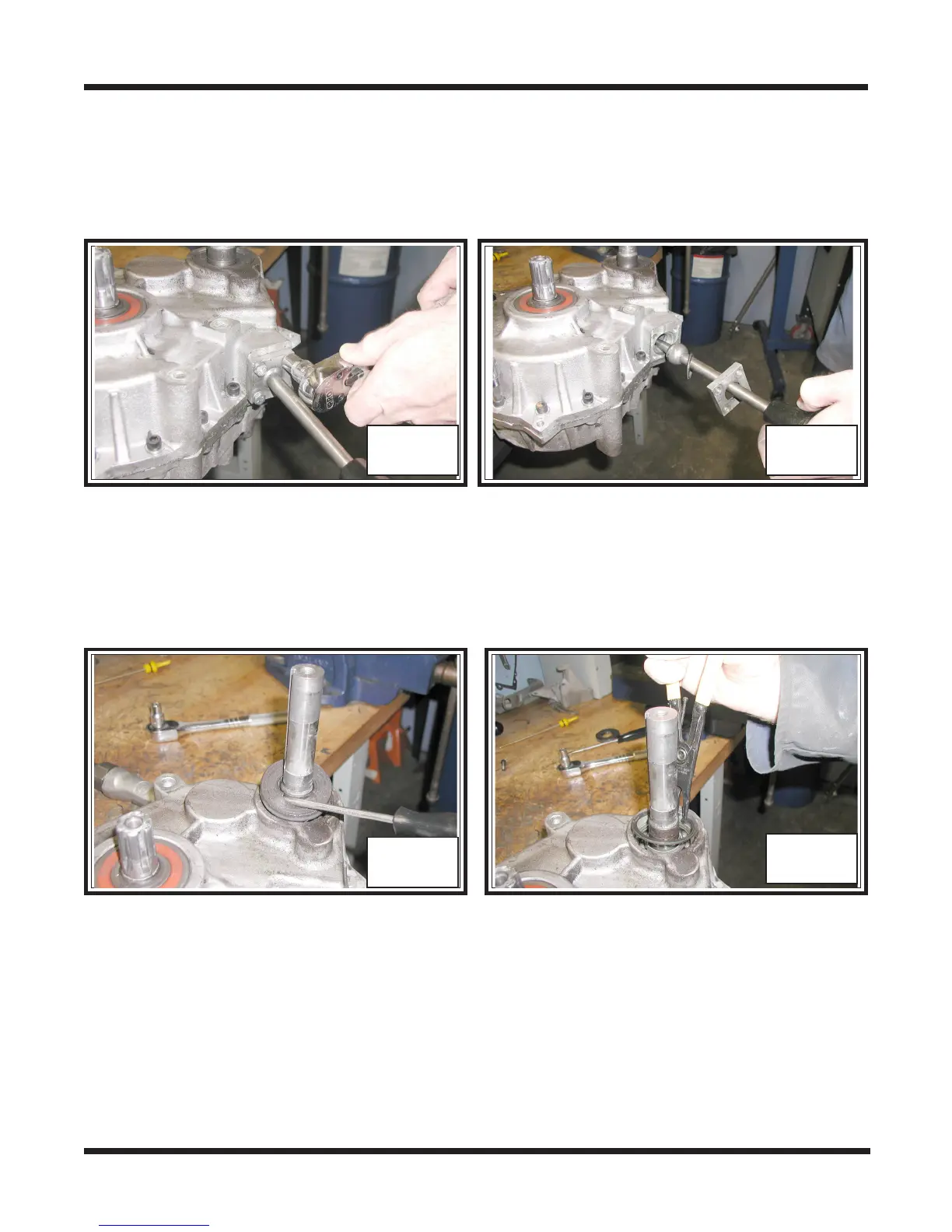

1. Drain oil and unthread the 4 fasteners securing the shifter lever assembly to top end
of the transmission and remove the lever. Photo TR-1 & 2
TR-1 TR-2
3. Remove the oil seal from the input shaft. Photo TR-3
4. Remove the retaining ring from the input shaft. Photo TR-4
TR-3
TR-4
2. Remove all fasteners securing the housing halves together. There are 11 located on
the input shaft side and 4 located on the opposite side. Ensure that all fasteners have
been removed before proceeding to seperate the transmission housings.
5. Remove the retaining rings from both output shafts. There may or may not
be shims below the retaining rings. Photo TR-5
Separating the Transmission
6. There are 3 threaded tab locations provided on the Avenger transmission housing
(input shaft side). These locations are used to assist in separating the two halves of
the transmission during disassembly. As 3 bolts are threaded into the housing, they
come into contact with the opposite housing, pushing and separating the 2 halves.
