Brake System
Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-19
4. Temporarily install the cover and gas-
ket onto the master cylinder reservoir.
Master Cylinder Installation

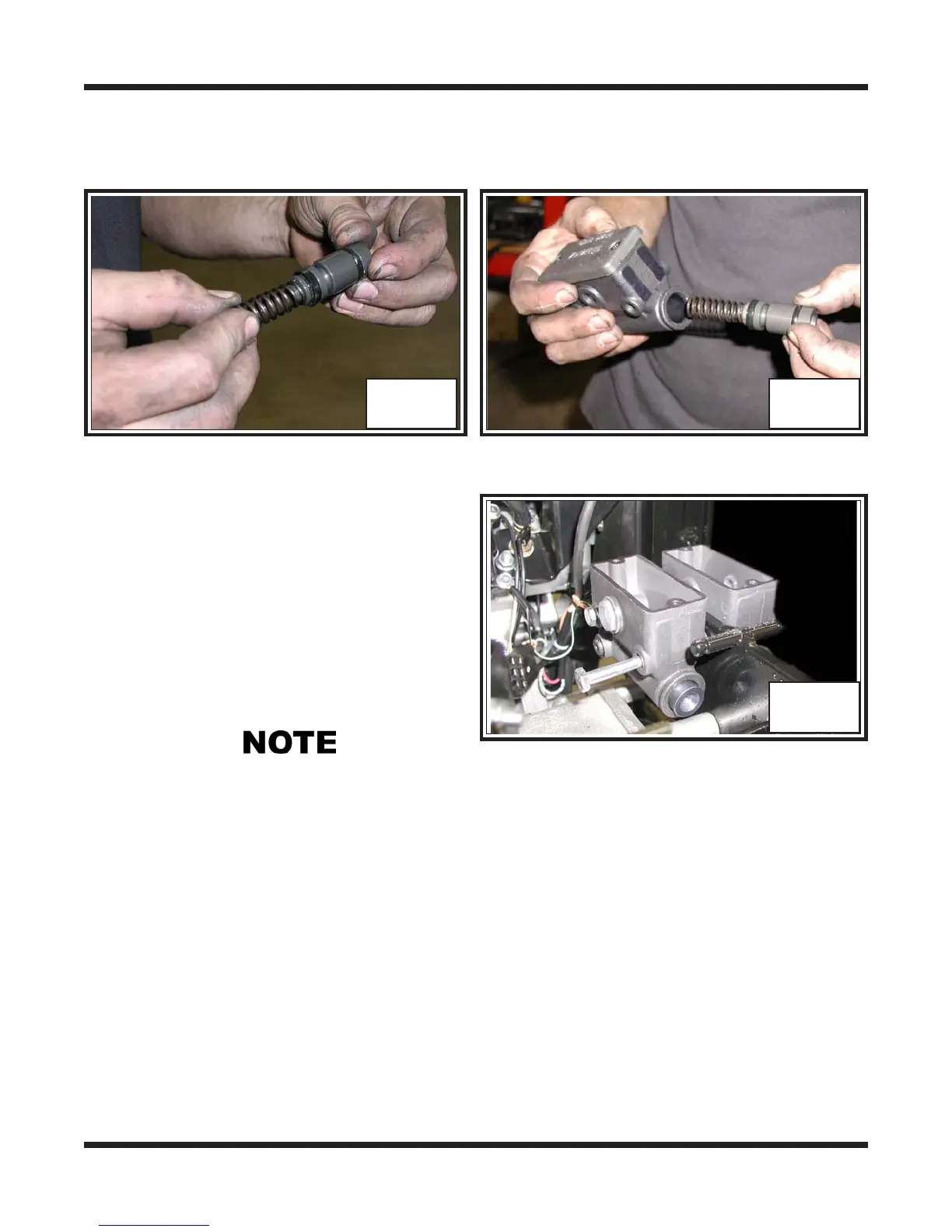

3. Install the piston into the piston bore. Slide the end with the primary seal in first.
Photo BR-27
BR-26 BR-27
1. Line up the holes in the mounting
bracket with those of the master cylin-
der and insert the 2 mounting bolts.
Photo BR-28
Conquest models require the rear mounting bolt to also secure the igniter box at the
master cylinder.
2. Reinstall the nylon locknuts and tighten to anchor the master cylinders into position.
3. Reconnect the brake lines to the master cylinders. Always use new copper washer
seals on the banjo bolts. Torque to specifications.
4. Refill the master cylinders using DOT 5 brake fluid. Use of other types of brake
fluids or combining different types of brake fluids, may result in damage to steering/
braking components or seriously impair the way in which the vehicle performs.
BR-28
