Clutch System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
CS-20

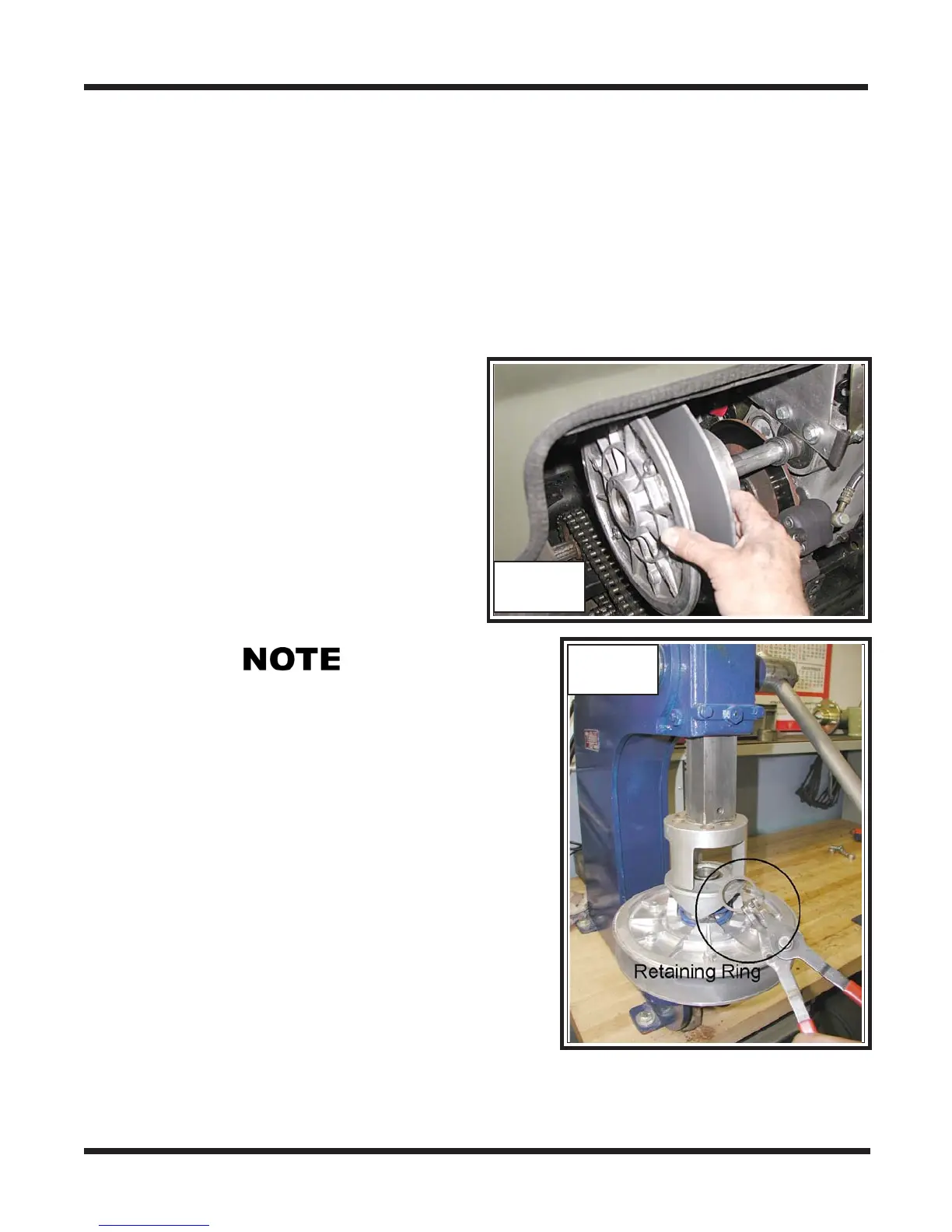

Driven Clutch Disassembly
5. Remove the driven clutch to a clean
work area.
2. With the retaining ring removed, slowly release
the arbor press off the cam until the cam is free
of the fixed pulley’s shaft and the spring has un-
wound . Photo CS-46
1. Place the clutch in an arbor press and
gently apply pressure to the spring cam
until the retaining ring can be removed.
The use of an old discarded 34-08 ARGO
transmission cage is a useful tool to em-
ploy between arbor press and clutch.
Photo CS-45
CS-45
Removing the Driven Clutch
4. Slip the driven clutch from the transmission. Photo CS-44
Depending on the age of the vehicle, the movable
cam may be secured by 2 retaining rings and may
also have spacers installed beneath the retaining
ring.
CS-44
1. Perform the servicing procedure, Removing the Firewall, in section VB
2. Perform the servicing procedure, Removing the Drive Belt.
3. Locate and remove the bolt, lock washer and flat washer securing the clutch to the
input shaft of the transmission.
