The cam is under spring tension. Wear eye
protection and keep fingers clear of the clutch.
3.Remove the cam and key from the keyway.

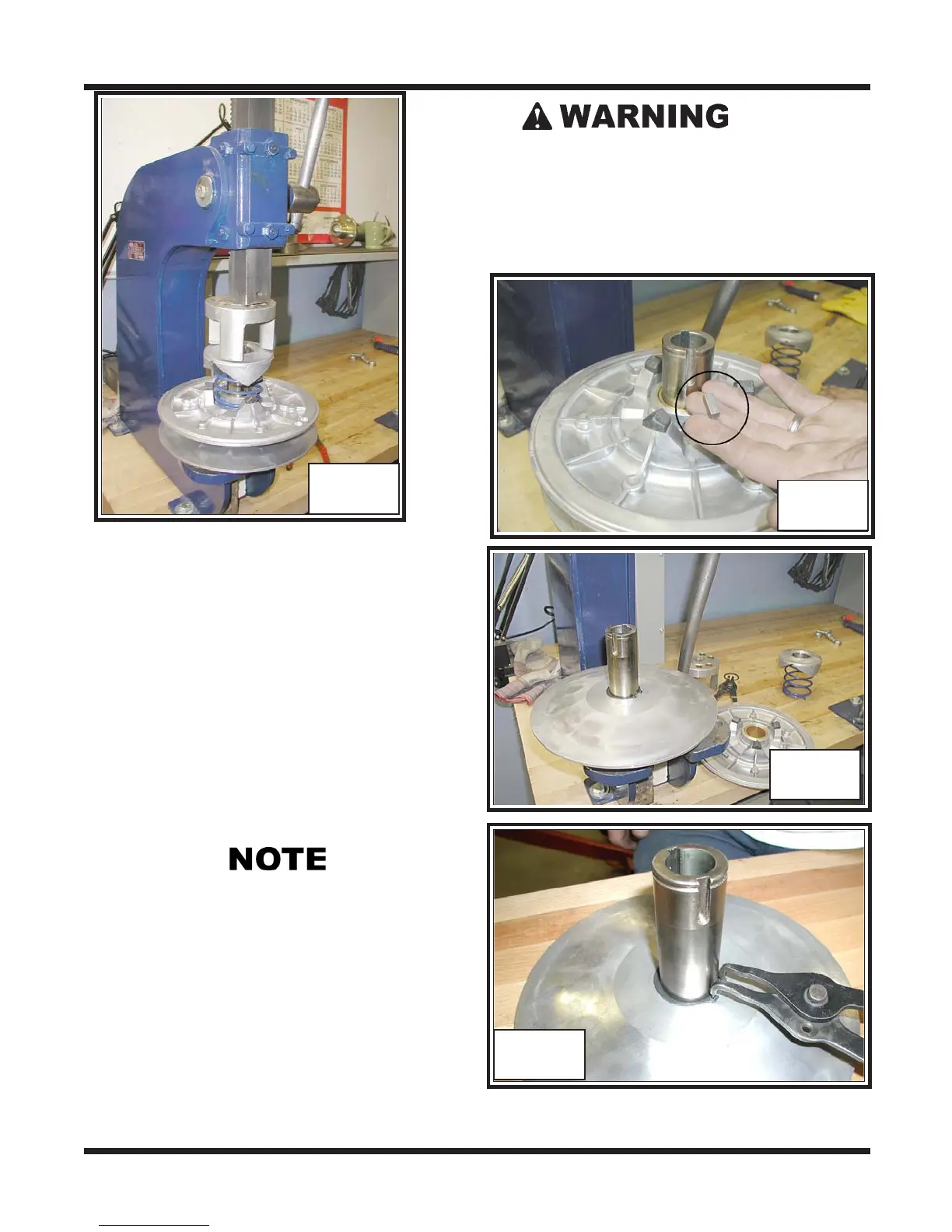

Photo CS-47
CS-46
CS-47
5. Remove the retaining ring and
spacer(s) from the shaft of the fixed
pulley. Photo CS-49
6. The Oilite bushing of the 126-24 driven
Clutch movable face is secured with a
spring pin. Remove the spring pin and
press the bushing from the movable
face. Photo CS-50
CS-49
CS-48
4. Slide the movable face from the fixed
pulley. Photo CS-48
The 127-136 Avenger driven clutch does not
utilize this oilite bushing in it's design.
7. The Super Oilite Bushing used in the
127-129 Driven clutch is NOT secured
with a spring pin, but uses a retaining
style ring at the end to secure the
bushing. Photo 50A
