BR-16A

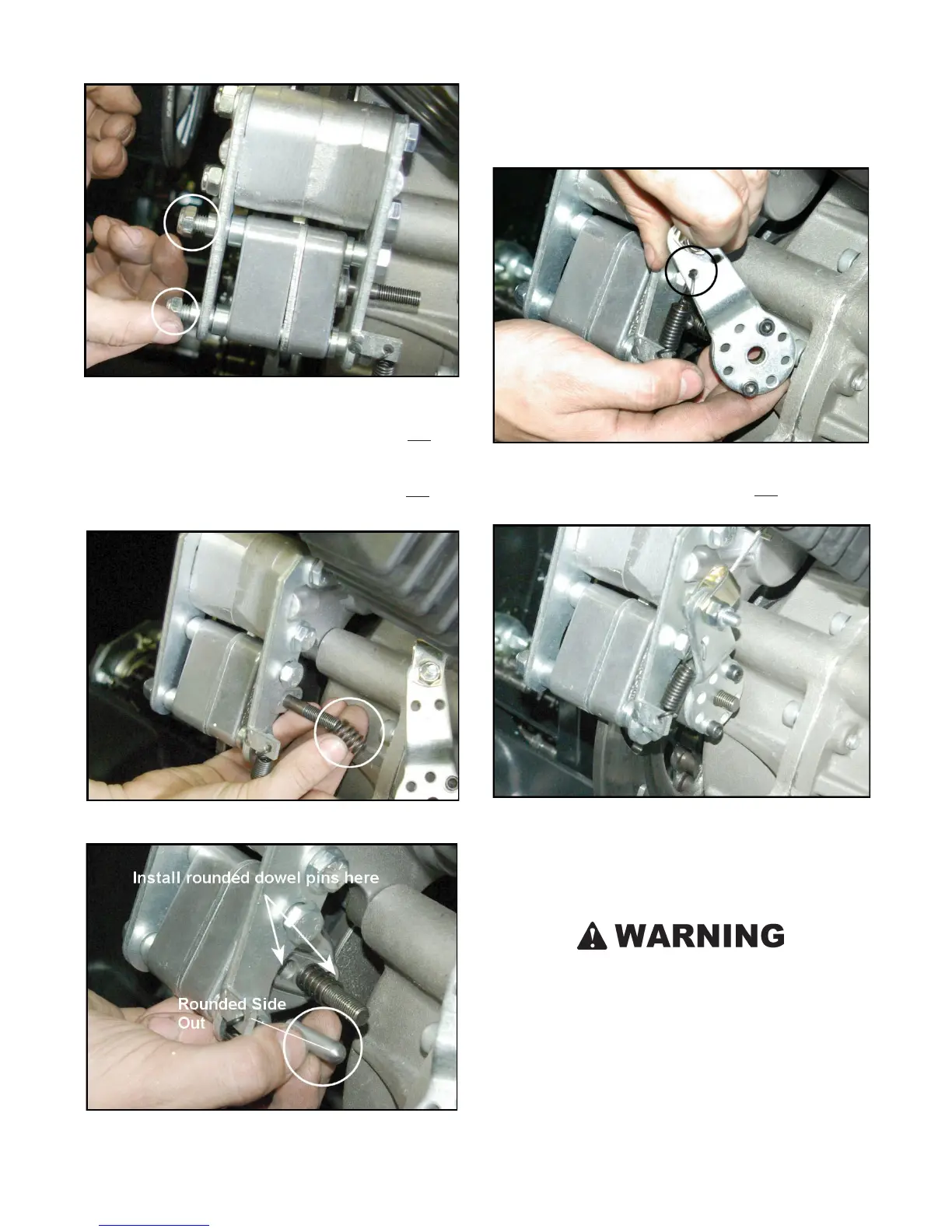

Figure 13 - Secure With Nylon Locknuts.
17. Install the compression spring to the stud of the live side
housing. Figure 14.
18. Install the (2) dowel pins to the cavities of the live side
housing (rounded side facing out). Figure 15.
.
Figure 14 - Install Spring.
Figure 15 - Dowel Pins.
19. Locate the brake lever assembly and reattach the exten-
sion spring to the hole provided. If the spring was com-
pletely removed, it should be attached first to the tab on
the mounting bracket, then to the cam lever. Figure 16.
Figure 16 - Spring Attached.
20. Install the lever to the stud of the live side housing.
Figure 17.
Figure 17 - Cam Installed.
21. Start the castle nut but do not tighten down.yet.
EMERGENCY/PARKING BRAKE ADJUSTMENT (ALL
MODELS)
The use of an improperly adjusted emergency/parking
brake is a serious hazard, and could lead to vehicle
damage or personal injury.
The hand brake lever should be adjusted such that when pulled
up firmly it is capable of holding the vehicle from rolling on a
grade. It should also ensure a good braking response when
applied to stop the vehicle during normal operation.
Ontario Drive & Gear
Phone (519) 662-2840 Fax (519) 662-2421
