Removing the Firewall (Conquest, Response, Bigfoot & Vanguard2)
All Conquest, Response, Bigfoot and Vanguard2 models utilize a quick release firewall
assembly. The firewall may be removed quickly and easily with little effort and no tools
required.
If replacing the firewall, when ordering, the same part number covers all the above
models.

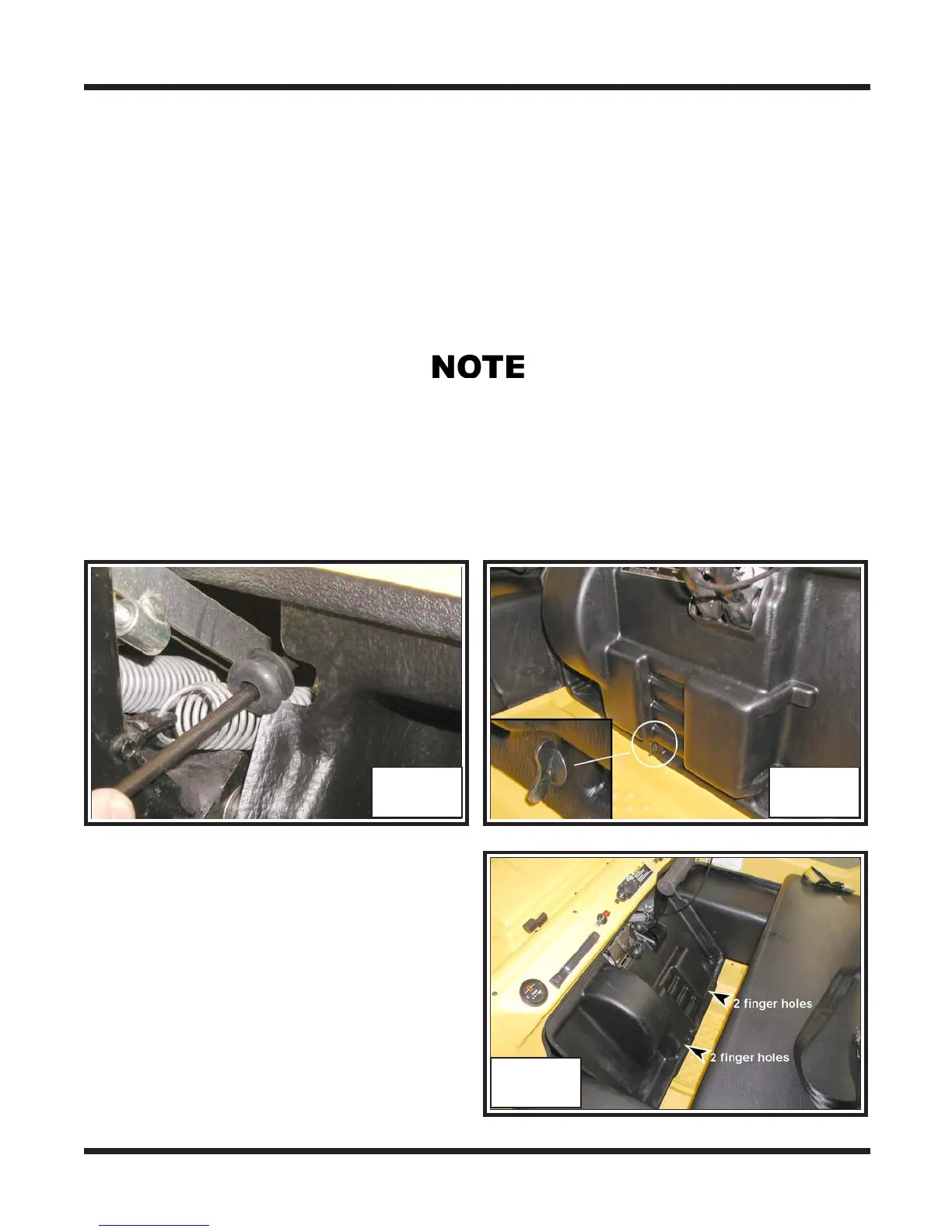

2. Locate the wing stud fastener at the central lower portion of the firewall.
Photo VB-2
3. Turn the wing stud fastener to release the firewall from the clip that secures it to the
lower frame.
The front floor pan need not be removed when pulling the firewall from the vehicle.
4. There are 4 “finger” access holes in the
bottom part of the firewall. This pro-
vides a place to grab the firewall while
pulling it out towards the driver's com-
partment. Photo VB-3
VB-1 VB-2
1. Pull the throttle cable free of the firewall at the rubber grommet. Photo VB-1
VB-3
5. Pull the firewall into the drivers com-
partment.
To Next Page
