Brake System
Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-31
BR-46
Mechanical Brake Caliper Installation

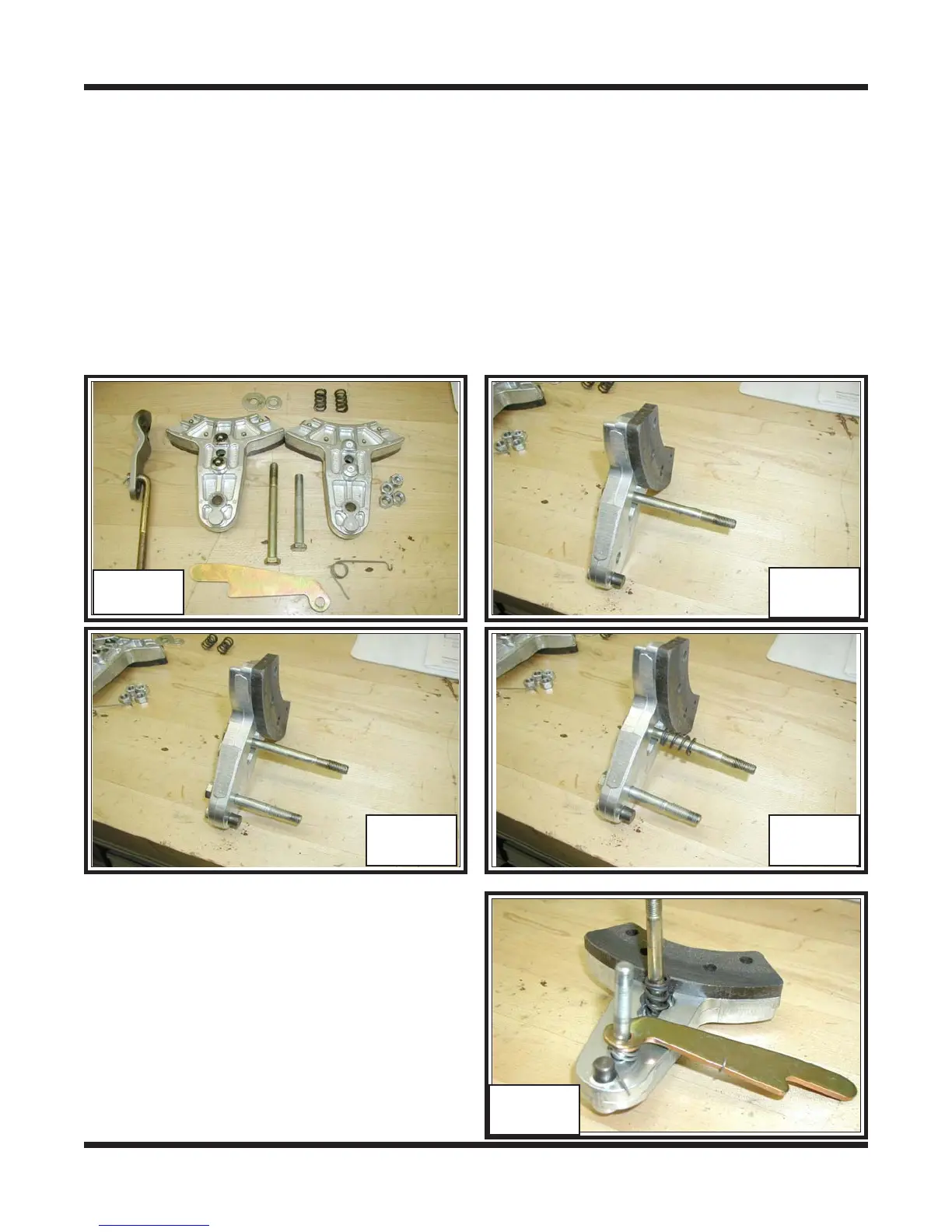

1. Lay out mechanical brake caliper components onto the work bench. Photo BR-46
BR-47
BR-48 BR-49
6. Install the left caliper half to the brake
bracket on the power pack frame. Photo
BR-51
4. Place 1 compression spring on to the longer of the two mounting bolts.
Photo BR-49
3. Insert the shorter of the two bolts into the rear hole of the caliper. Photo BR-48
2. Take the longer of the two mounting bolts and place it through the front hole of the
caliper. Photo BR-47
Take note of the orientation of the brake cam to the adjustment rod, and be sure to
assemble accordingly if this assembly has been disassembled for any reason.
7. Place the second compression spring to
the caliper. Photo BR-52
5. On the right hand side brake assembly ,
make sure to assemble the parking brake
bracket first before installing it to the
power pack bracket. Photo BR-50
BR-50
