Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
Argo Service Manual Transmission
TR-19
TR-48

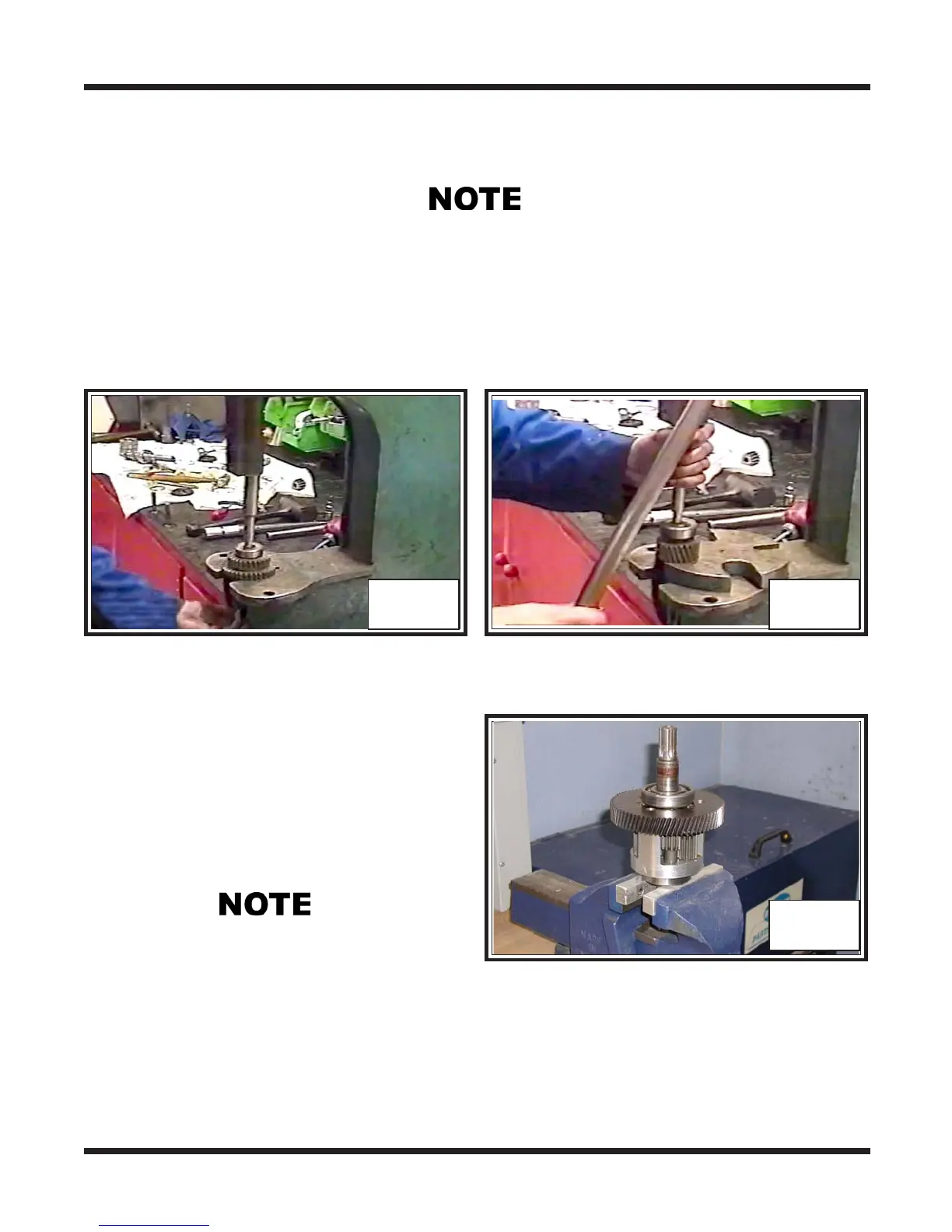

37. Place the Shifter Assembly into the arbor and press the Splined Shaft from the
101-01 Bearing and the Double Gear. Photo TR-48
38. Turn the Splined Shaft to the other end to remove the 101-01 Bearing and Drive
Gear. Photo TR-49
Be aware of the Ball & Spring within the Double Gear when pressing the spline shaft from
the assembly.
TR-49
Disassembling the Differential
40. Secure the Differential by the Output
shaft on the cage side within a vise. A
vise equipped with aluminum jaws must
be used to avoid any damage to the out-
put shaft. Photo TR-51
TR-51
When removing the 3 fasteners that secure
the differential's Gear Plate and Aluminum
cage together, earlier transmissions may also have a lockwasher
installed. If this is the case, when reassembling the differential,
eliminate the lockwashers and use Red 271 LOCTITE on both the
threads of the fastener as well as on the internal threads of the
aluminum cage.
