Clutch System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
CS-16
CS-38
CS-39

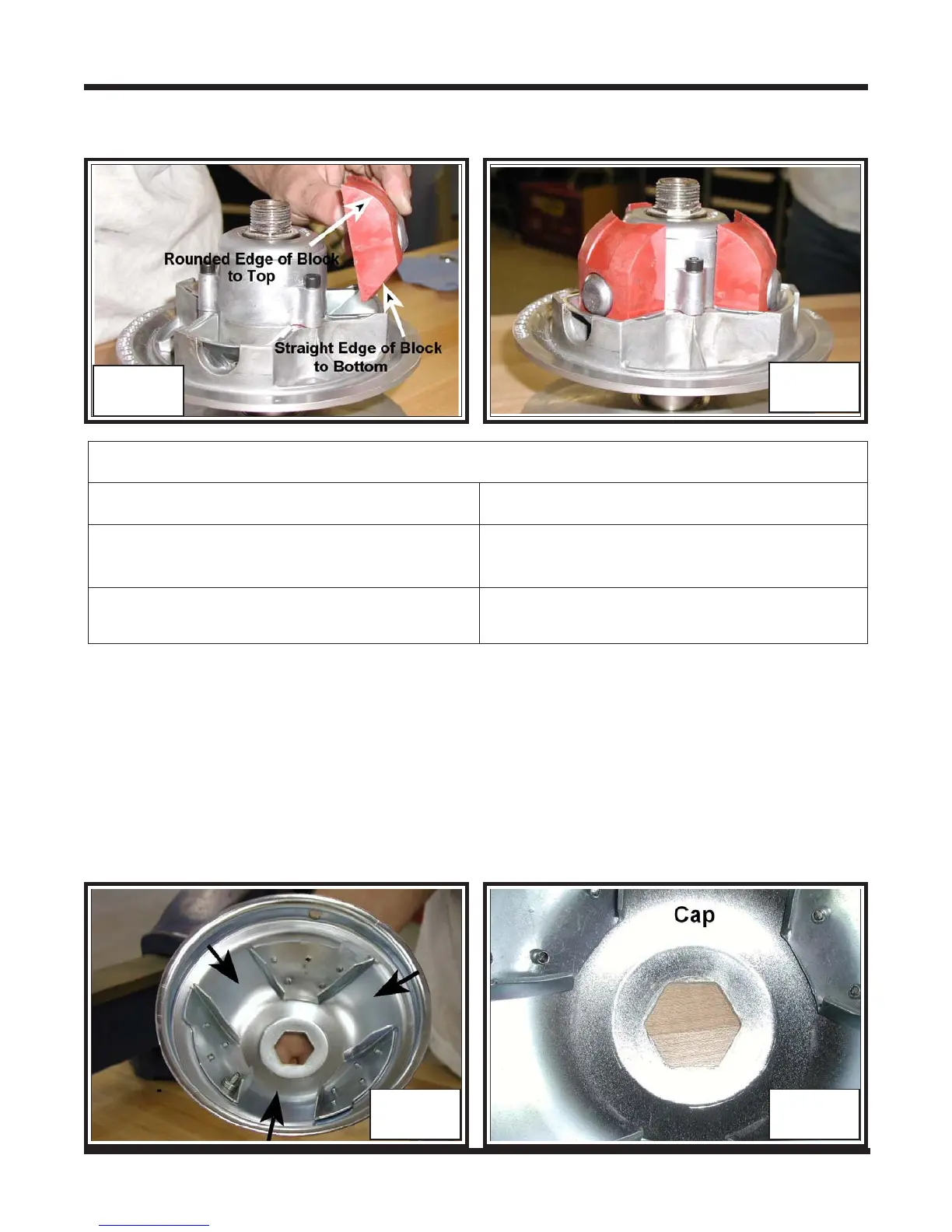

8. Install the cap over the weights and blocks making sure that the blocks are aligned
with the guides riveted into the cap. Photo CS-40
10. Install the nut and torque to specifications.
7. Place each of the weights and blocks into the moveable face and orient as shown in
Photo CS-38 & 39
9. Before installing and tightening the flat washer and nut, be certain that hexagon
shaped hole in the cap is mated to the one at the base of the threaded shaft. Photo
CS-41, 42 & 43
CS-41CS-40
Response & Bigfoot Vehicles 225g
Conquest Vehicles prior to CB17506 266g
Conquest Vehicles from CB17506 260g
Vanguard & Vanguard2 Vehicles 200g
Clutch Weight Chart
