Brake System Argo Service Manual
BR-30
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-43
3. Clear the remainder of the rivets with a
11/64" drill bit.
4. Remove the pad and discard.

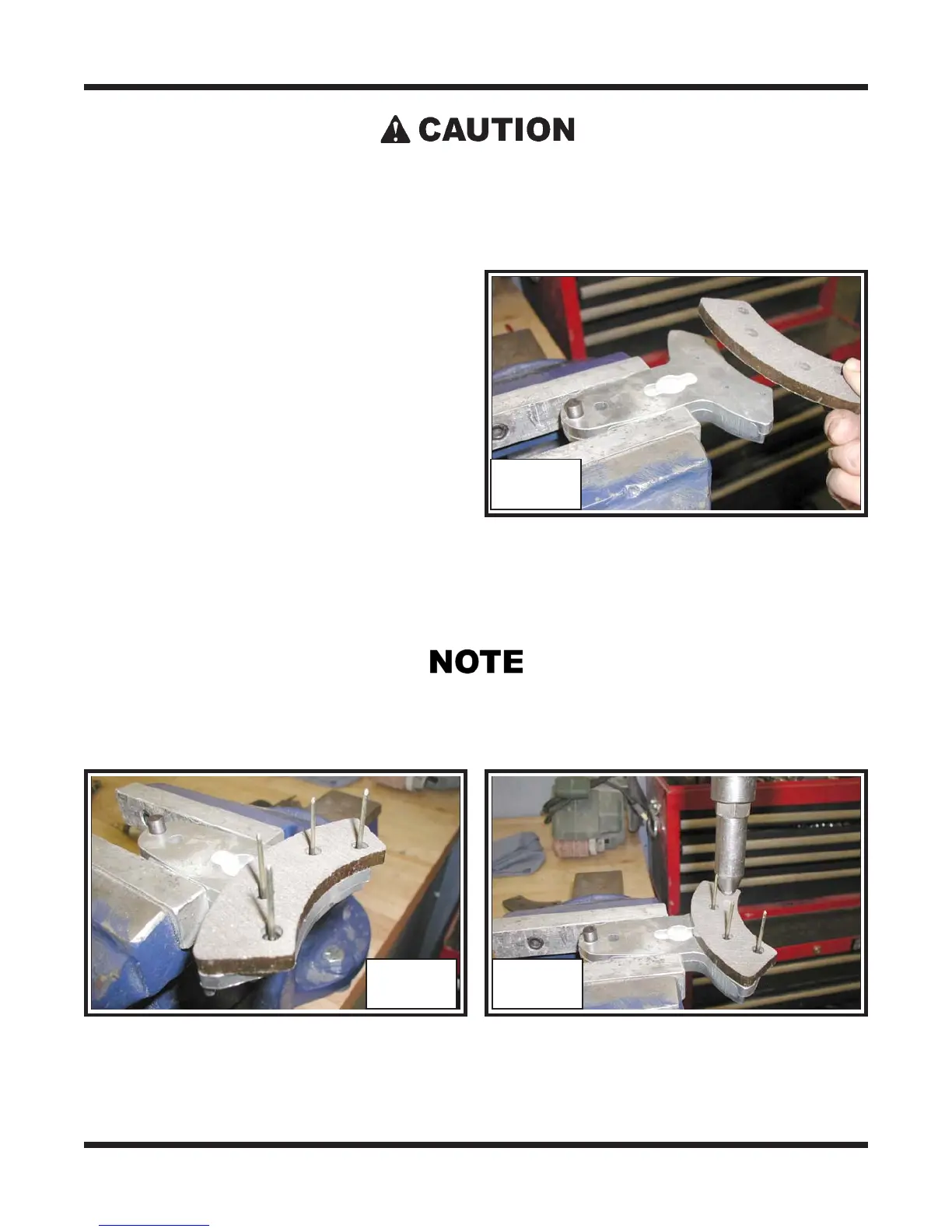

Photo BR-43
Take care in drilling out old pop rivets. Damage to the caliper casting could occur,
requiring a more expensive caliper replacement.
Installing the Brake Pads (Mechanical)
1. Place the new brake pad on to the caliper. Be sure that the counter-sunk side is
facing up. Photo BR-44
2. Using a pop riveting tool, fasten the brake pad to the caliper. Photo BR-45
Make sure that the brake pad is completely flat to the caliper when pulling the rivets
and that there is no obstruction between the caliper and the back side of the pad.
IMPORTANT
BR-44 BR-45
The tip of the riveting tool may need to be modified to allow it to fit into the counter bored
hole in the pad. This will ensure that the head of the rivet is tight against the pad when it
is pulled.
