Argo S - Assembling the Idler Gear Bore Assembly

Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
TR-12A
Transmission Argo Service Manual
Assembling the Idler Gear Bore Assembly

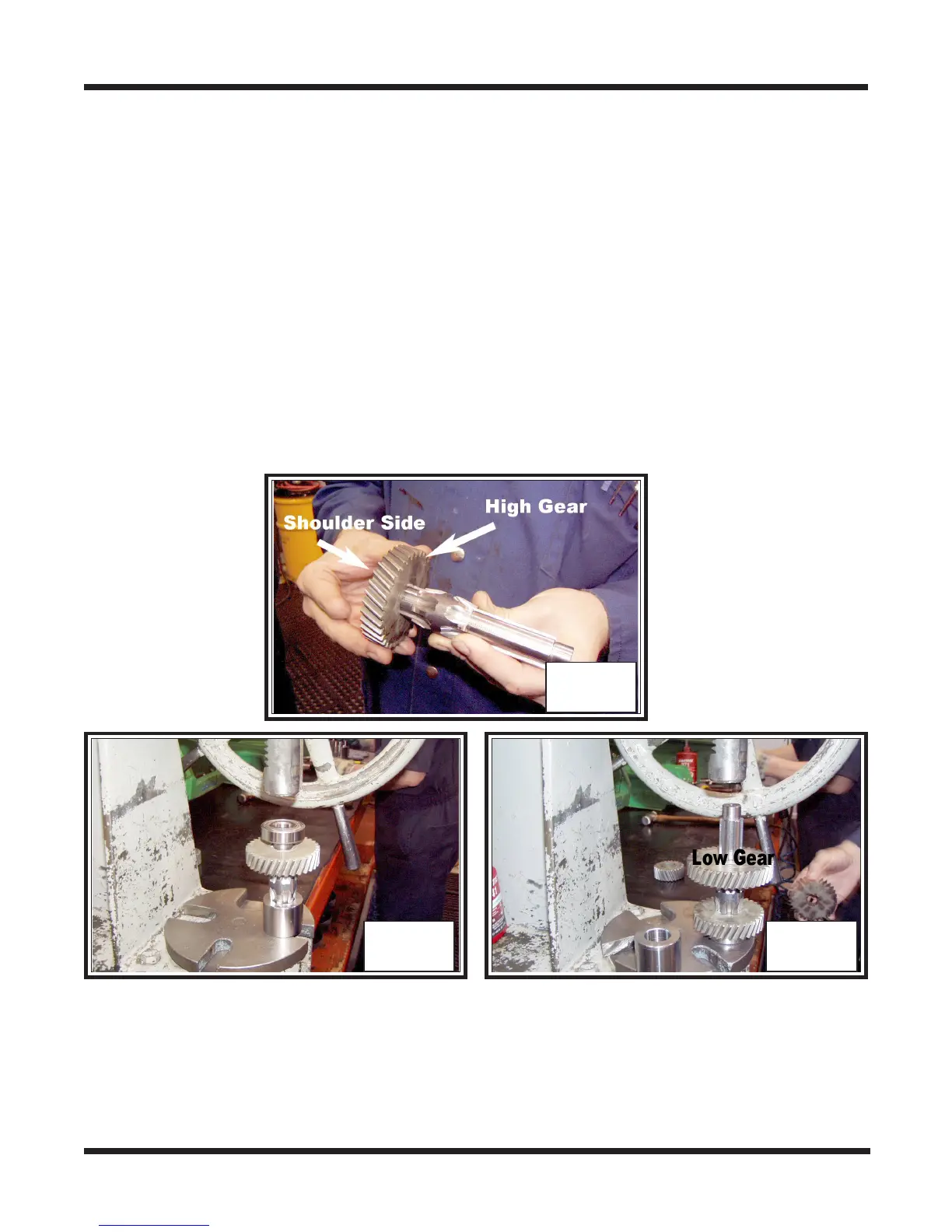

1. Install the 34-109 High Gear to the short side of the 34-112 Splined Shaft. Photo
TR-41
2. Press the 101-01 Bearing to the High Gear end of the Splined Shaft with the shielded
side facing out. Photo TR-42
TR-41
TR-42 TR-43
Install the High Gear with the machined shoulder up. See Photo TR-41
3. Install the 34-110 Low Gear to the opposite side of the Splined Shaft (long side).
Photo TR-43
Install the Low Gear with the machined shoulder up.
