TR-13A
Argo Service Manual Transmission

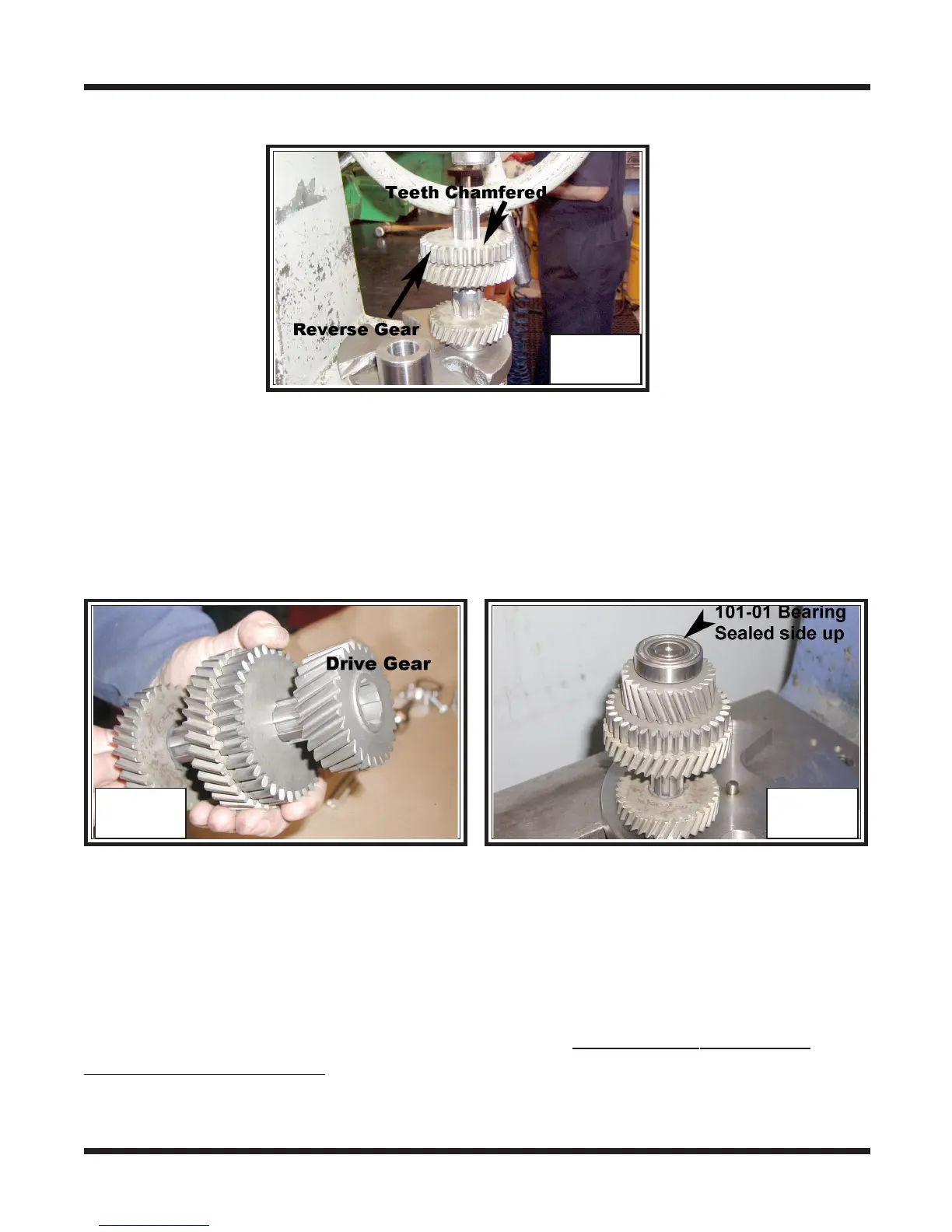

4. Slip on the 34-111 Reverse Gear up against the previously installed Low gear.
Photo TR-45
TR-44
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
The 34-111 Reverse gear must be assembled to the Splined Shaft with the
chamfered teeth side facing up. Photo TR-45
5. Install the 34-123 Drive gear to the top of the previously installed Reverse Gear.
Photo TR-46
TR-46 TR-47
6. Press on the 101-01 bearing to the end of the shaft, shielded side up. Photo TR-47
See assembled component on the following page.
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
Do not install this 101-01 Bearing to the end of the shaft if the differential assembly
has the high ratio 3.3 Gear Plate. This bearing should be installed to the housing
at the same time as the 101-03 Bearing (step 16 of Assembling Transmission
Components to Housing pg. TR-25). Interference between this Bearing and Gear
Plate teeth will be apparent later on when installing along side the differential
assembly if this is not observed.
