Argo Service Manual Wheels, Axles & Chains
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
WA-53

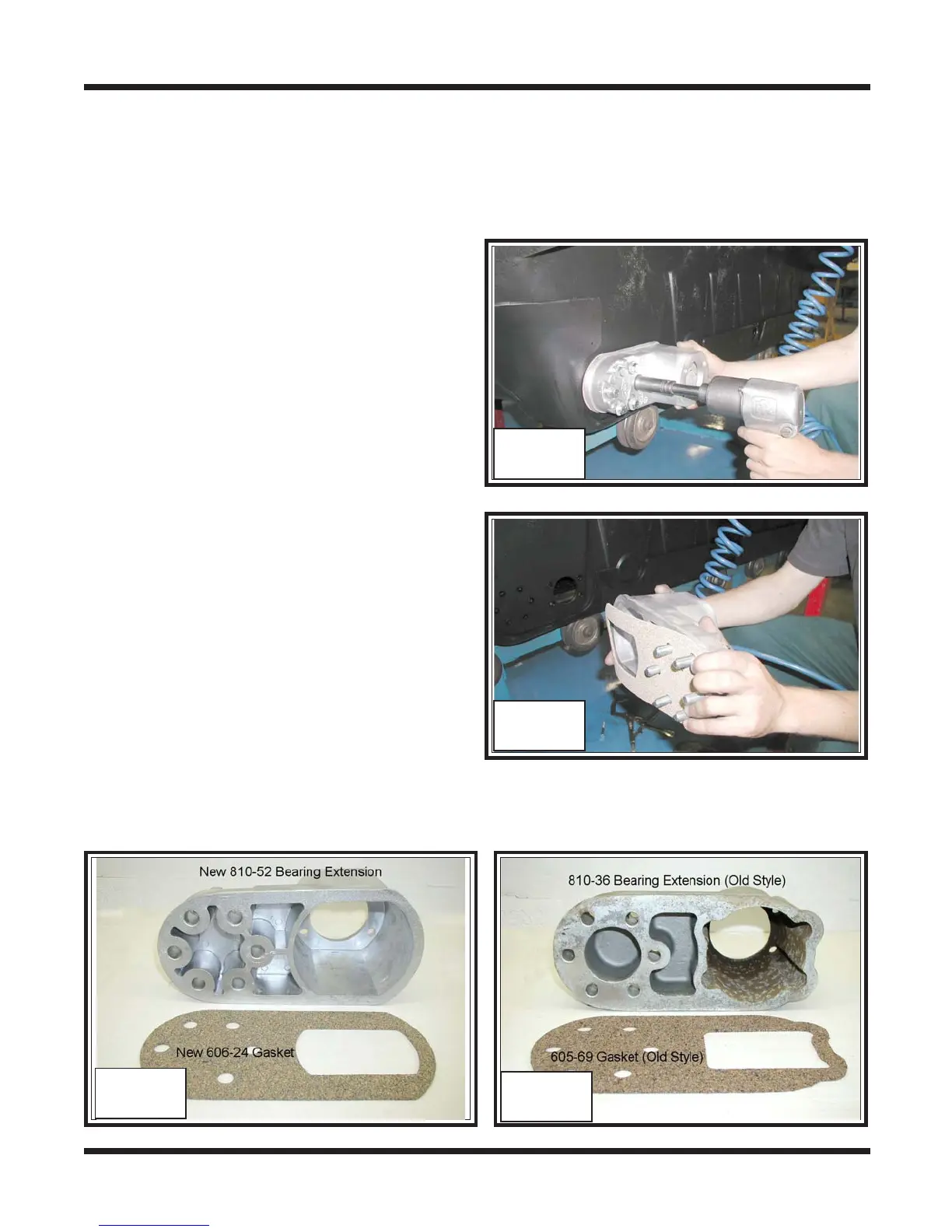

Removing the Bearing Extension
1. Perform the servicing procedure, Removing an Axle (With Bearing Extension).
2. Locate and remove the 6 bolts and flat
washers securing the extension to the
frame. Photo WA-131
3. Remove the extension.
4. Remove any old gasket that may still be
present on the lower body from the pre-
vious extension. Clean the area thor-
oughly before assembling the new ex-
tension to the lower body frame.
Installing the Bearing Extension
1. Slip 6 bolts through the bearing exten-
sion mounting holes and install the gas-
ket to the bottom of the extension.
Photo WA-132
IMPORTANT
Older style bearing extensions that have been
replaced with the new design type, will
require a new style gasket as well. Vehicles
manufactured from S/N CB19200, RB19204,
BF13178 & C13176 feature this new design. Older design extensions are no longer
available as a stock item. Photo WA-133 & 134
WA-132
WA-133
WA-134
WA-131
To Next Page
