Argo S - Chain Tensioner Inspection; Replacing the Slider Block

Argo Service Manual Wheels, Axles & Chains
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
WA-11
Chain Tensioner Inspection (Earlier Style)


 On 8x8 models manufactured prior to serial numbers CB16049 & RB16104, or
6x6 models prior to serial numbers SN10191 & S10178:
1. Remove the front and rear floor
pans.
WA-13
2. Place the new slider block over the shaft
of the tensioner arm, and using a nee-
dle nose vise grip, squeeze the new
block until it snaps on to the shaft of
the tensioner arm. Photo WA-14
Replacing the Slider Block
WA-14
Maintenance Interval - Inspect every 10
hours of vehicle operation.
This chain tensioning system consists of an
upper and lower chain tensioner arm which is
supported by a pivot pin secured between the
outer and inner frame channel. A tensioner
spring is connected between the upper and
lower assembly keeping a constant tension on
any slack there may be in the chain.

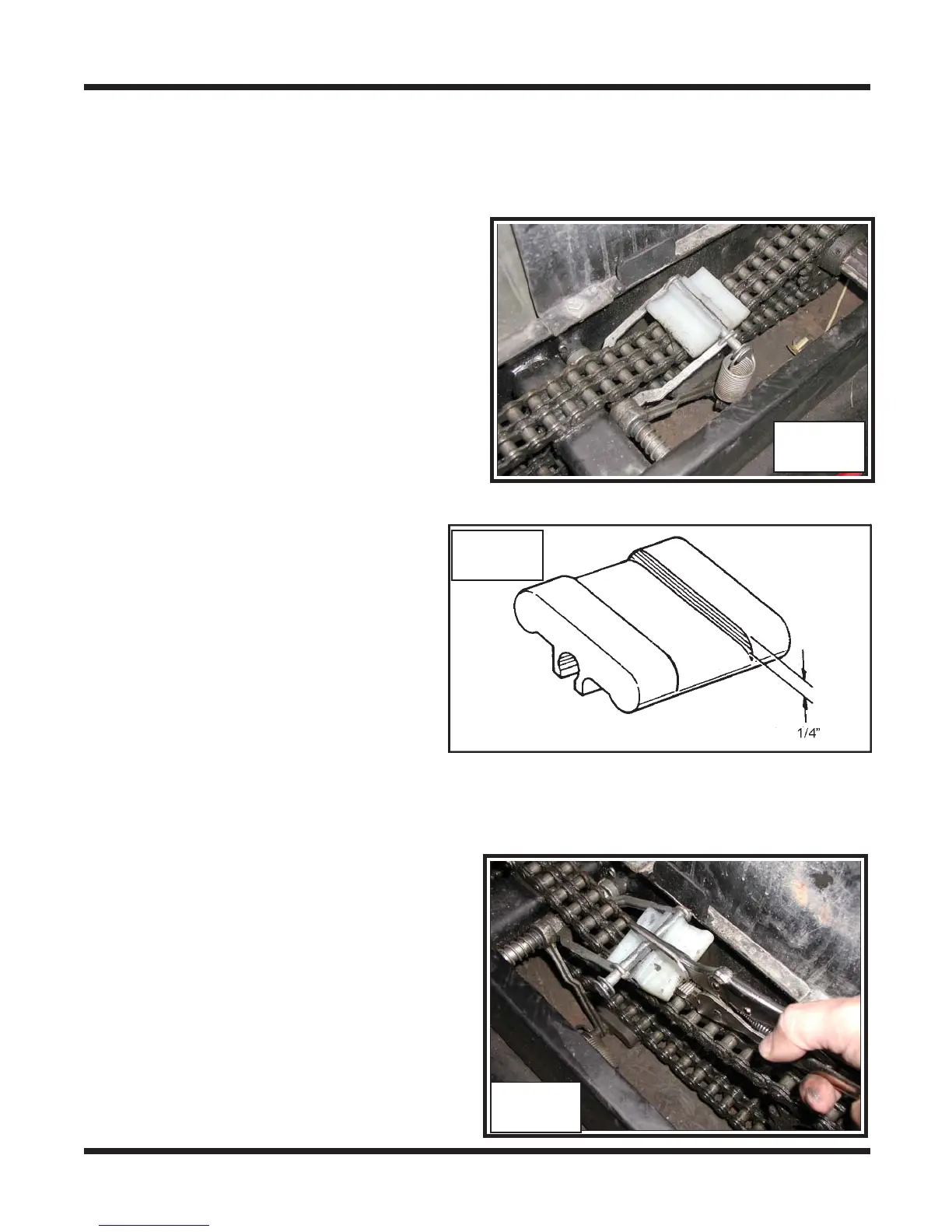

Photo WA-12
1. If the nylon slider block needs replac-
ing, pry the old block off of the shaft
with a pair of pliers.
2. Press the upper and lower slider
blocks together and, using pliers,
remove the tensioner spring.
WA-12
3 The friction of the chains will cause
wear to the nylon slider blocks in
the chain tensioning system. In-
spect the face of each slider block.
4. If the wear groove on the slider block, as shown in DIAGRAM WA-13, is 1/4"
(6mm) or greater, replace the nylon
slider block.
