Argo Service Manual Brake/Steering System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-1A
Disassembling the Moto Cross Style Steering Column (All Models)
1. Perform the servicing procedure, Removing the Firewall.
2. Cut the tie wrap securing cables to the steering column.
3. Remove the (4) fasteners securing the steering bar to the steering column assembly.

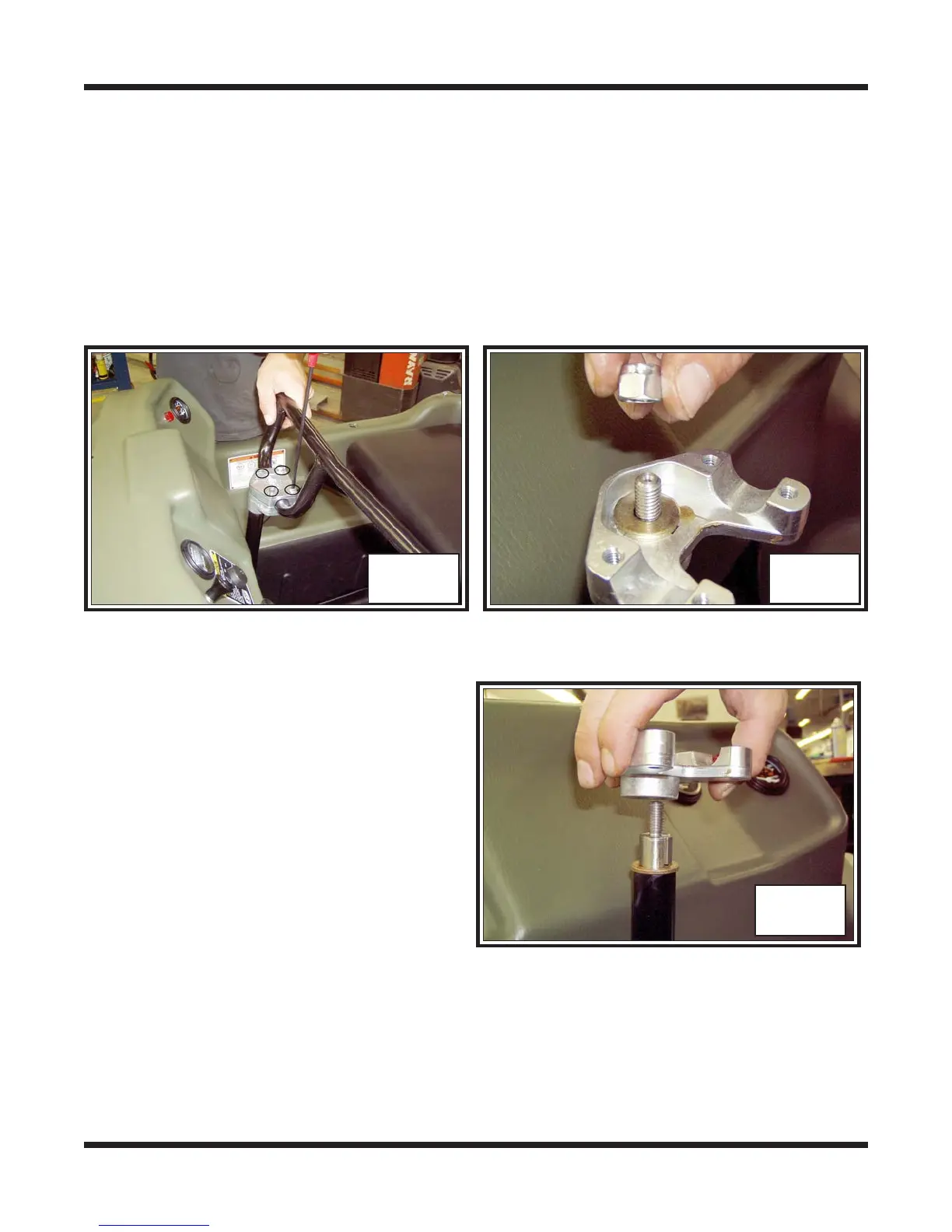

Photo ST-1
ST-1 ST-2
4. Remove the Nylon Locknut and Flat Washer from the top of the Lower Handle Bar
Clamp. Discard the nylon locknut. Photo ST-2
5. Remove the Lower Handle Bar Clamp
from the steering shaft. Photo ST-3
IMPORTANT
Be aware of the small key(s) installed into
the steering shaft and ensure they are
installed when reassembling the steering
system.
ST-3
6. Disconnect the hand brake lever cable
at the steering arms.
7. Apply pressure to the left hand side plunger pin by pushing on the steering arm
with the palm of your hand and insert a shim between the locking collar and the
welded tab stop. Photo ST 4 Repeat on the right hand side master cylinder. Follow-
ing this procedure will ensure that there is no interference between the plunger pins
and steering arms, when sliding the shaft from the steering column.
Read all the instructions thoroughly before starting and attempting ANY repairs.
Consult your Argo Dealer if you have any questions.
