Brake/Steering System Argo Service Manual
BR-2A
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
Vehicles manufactured from V22441, C22453, R22452, B14700, A14743, N14708:
1 Retaining Ring is located between the two Steering Arms.
i. Remove the 2 Spring Pins and Steering Arms from the Steering Shaft. Photo ST-7
A Retaining Ring is located between the two steering arms.
i. Place the Steering Shaft on a clean work bench and remove the 4 roll pins. Photo
ST-6 Slide each steering arm and centering spring from the shaft.
Avenger Models Only
On all models manufactured from C22453, R22452, B14700, A14743, N14708

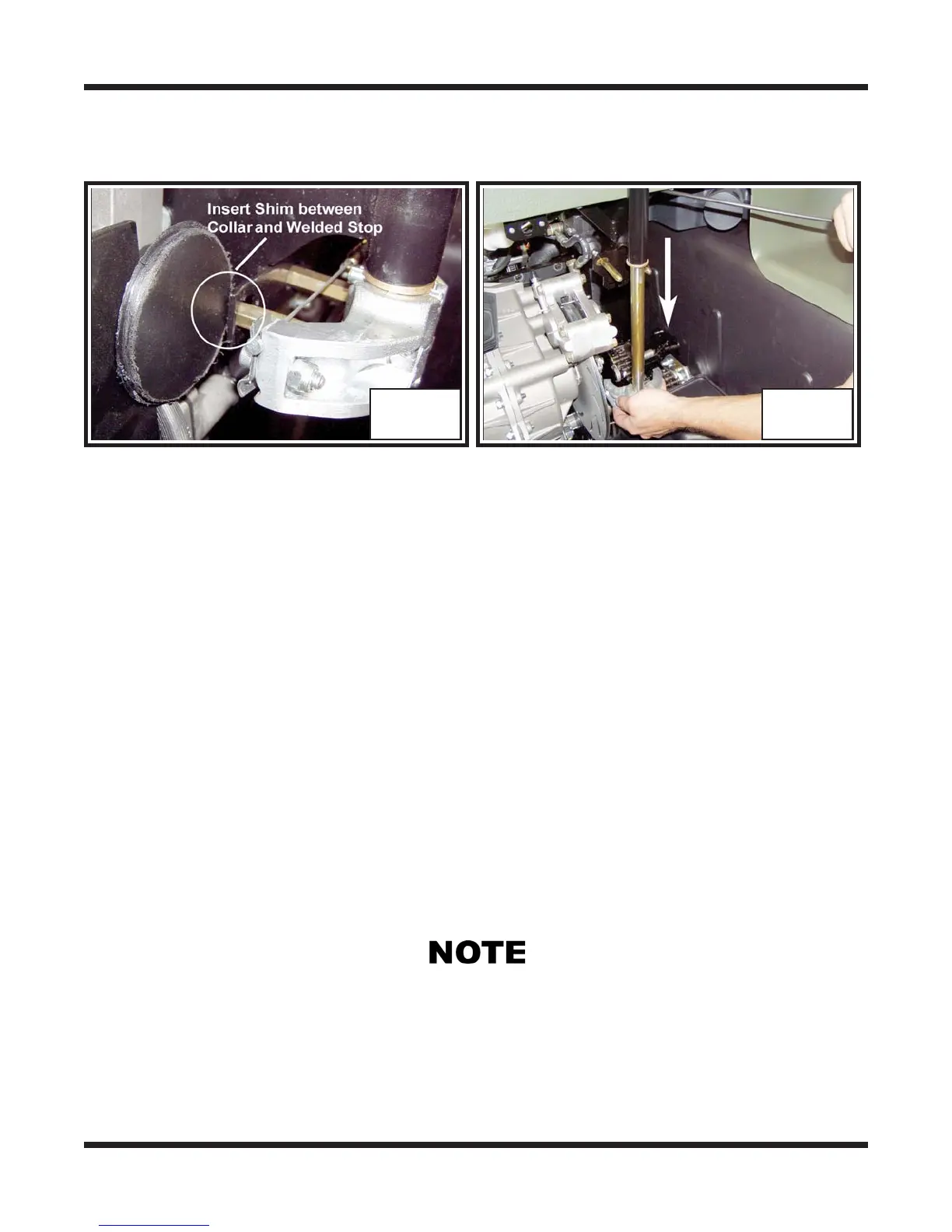

ST-5
i. Slip the Steering Shaft from the Steering Column Assembly. Photo ST-5
On Avenger Models Only - Prior to V22441
ST-4
i. Remove the (3) fasteners securing the 612-117 steering column assembly to the
transmission. Photo ST-18A You must do this in order for the steering shaft to clear
the brake calipers below when slipping it from the steering column.
IMPORTANT
Be aware of the 108-08 Flat Washer Spacers used between the Steering Column
Frame Assembly and the transmission mounting bosses.
ii. Slip the shaft from the column.
8. Disassemble the steering shaft as follows:.
