Fuel System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
FS-6
Installing the Fuel Tank
1. Thread the new pickup tube into the top of the fuel tank. Position the outlet facing
the rear of the tank.
2. Slip the new or cleaned tank through the
top of the seat support frame, or in from the rear compartment of the Argo. See
IMPORTANT on previous page.
3. Reconnect the filler hose to the tank and secure with the gear clamp.
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
Be sure to replace any missing or damaged
cushioning required on the fuel tank frame
assembly before installing the tank. All
cushioning provides a secure fit for the
tank, and protects the tank from wear due

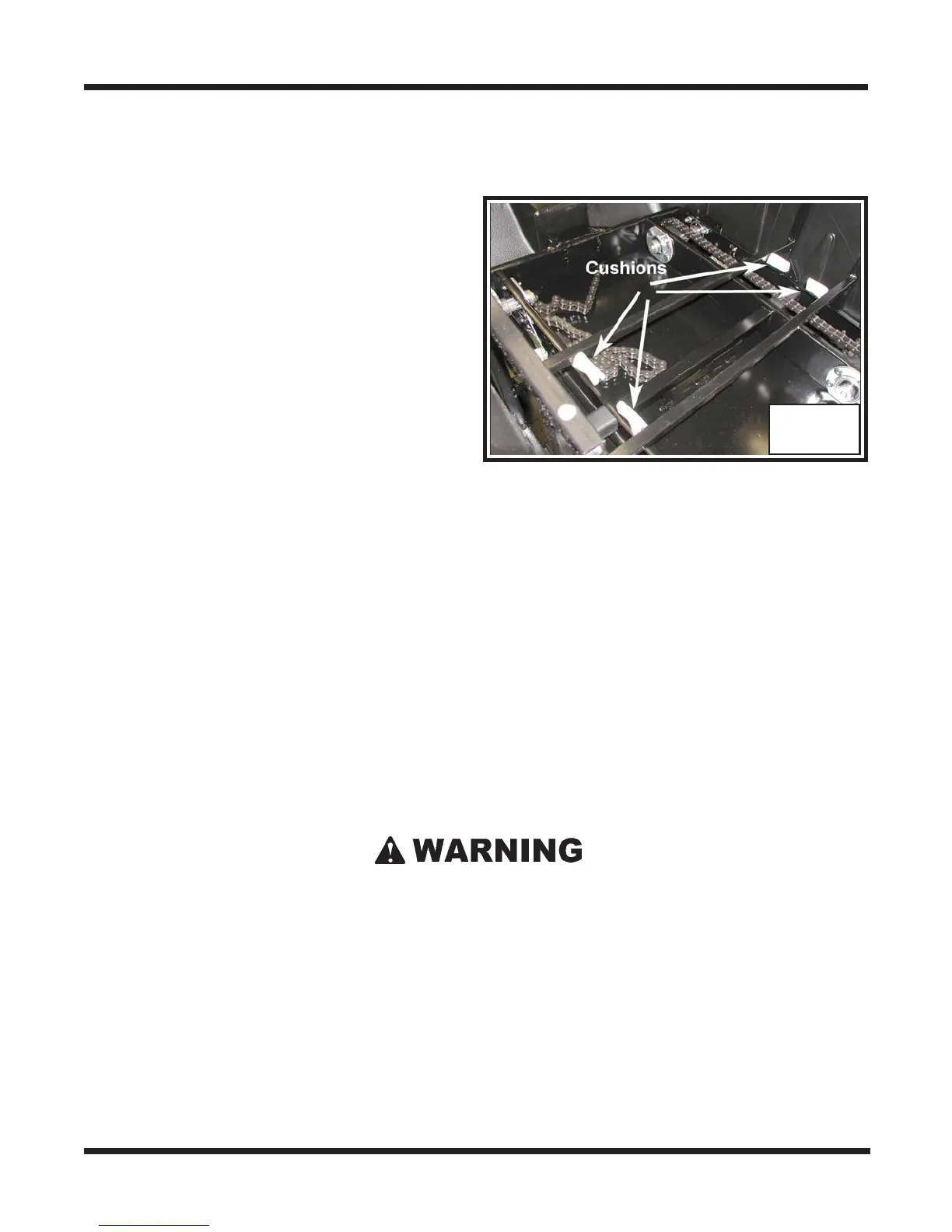

to vibration. Photo FS-6
FS-6
4. Be sure to reconnect the fuel vent hose at the filler neck and ensure that it is facing
up and not kinked or pinched in any way.
5. With the tank in place, reinstall the tool box and secure with the 4 fasteners
6. Replace the fuel filter with a new one.
7. Place the front seat back into the vehicle.
Inspecting the Fuel Tank and Fuel Line
Leakage in the fuel system is very dangerous! A spark or open flame can ignite
gasoline fumes, causing serious injury or death. Extensive vehicle damage will also
occur.
Regular inspection of the fuel tank and fuel line is essential to personal safety and good
vehicle performance. Inspect the fuel tank for:
• cracks or leaks
• loose or broken clamps
• loose connection in pick-up pipe
To Next Page
