2. Reattach the brake line at the caliper.

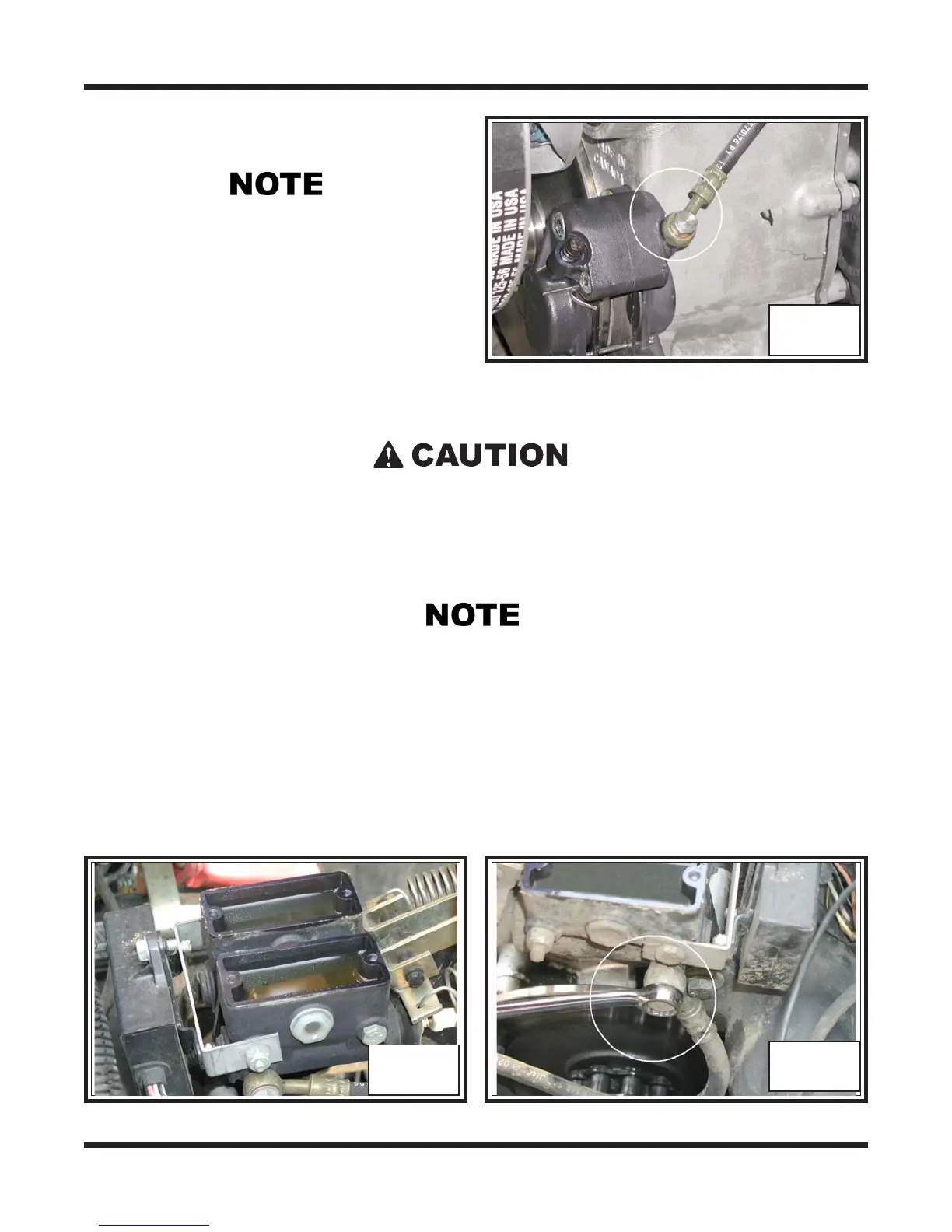

Photo BR-20
3. Perform the servicing procedure, Bleed-
ing the Hydraulic Brake System.
Always use new copper washer seals at all
brake line connections
BR-20
Removing the Master Cylinder
Clean the master cylinder casting and caliper casting and fittings. This will prevent
dirt from contaminating the brake system. Contaminants in the brake fluid can
damage components or cause premature wear. This will result in a loss of braking/
steering effectiveness.
To rebuild a master cylinder, removal of the component is necessary to insure a clean and
thorough job.
1. Remove the covers from the master cylinders and empty the cylinders of their con-
tent. Photo BR-21 If you have access to a vacuum style hand pump, this works
well for sucking the fluid from the reservoirs. If this is not an option, disconnect
the brake hose from the caliper and allow the reservoir to drain through the hose into
a container. Pumping the steering levers speed up the draining process.
BR-22
BR-21
2. Disconnect the brake line at the master cylinders. Photo BR-22
