Argo Service Manual Wheels, Axles & Chains
Assembling The Idler Shafts To The Vehicle (Avenger Models Prior to 25622)

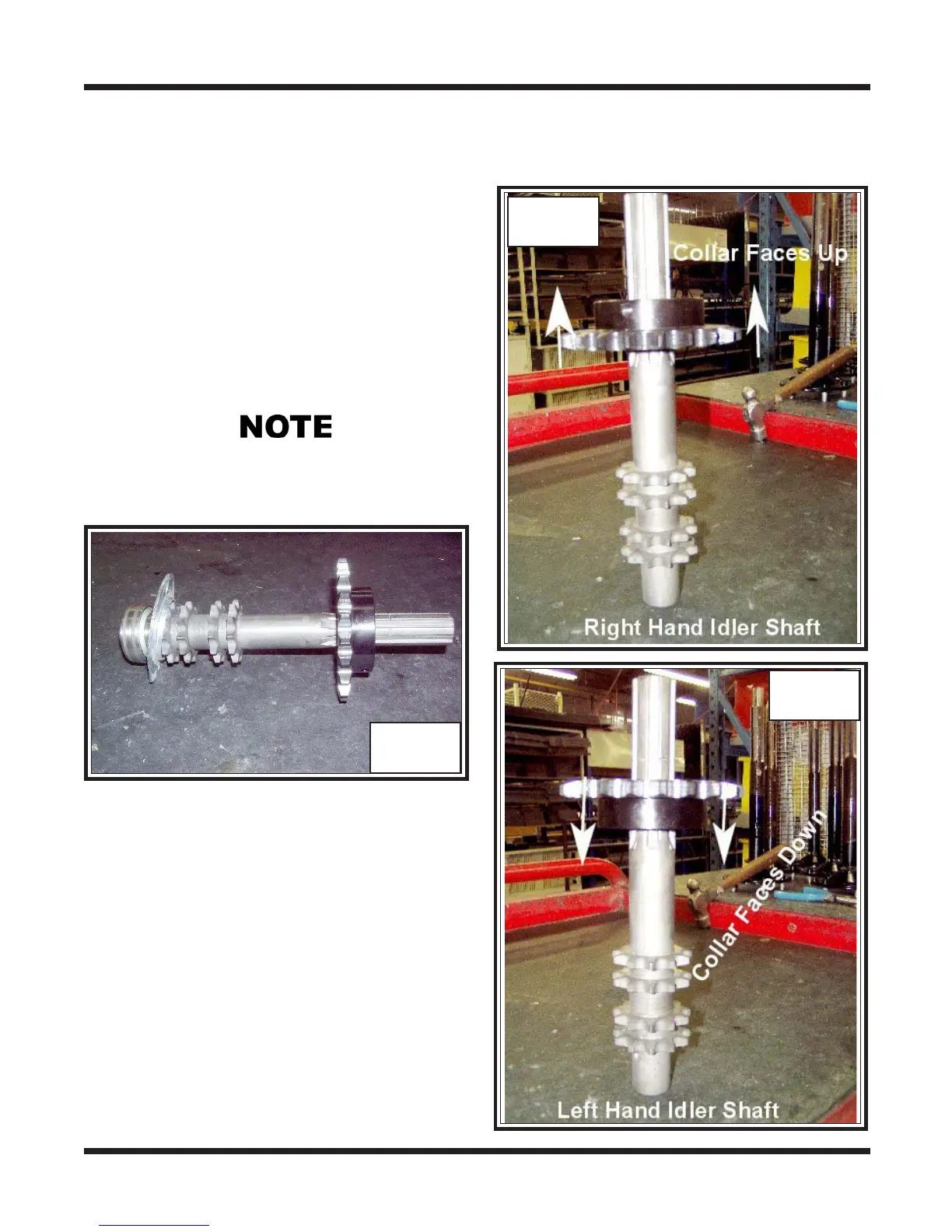

1. Apply some LOCTITE anti-sieze compound to each end of the 810-32 idler shafts .
2. Install a 606-72 idler sprocket to a 810-
32 idler shaft. Install it with the collar of
the sprocket facing up. Photo 15A
Next, install a 101-20 greasable flange
followed by a 101-35 bearing to the op-
posite end of the shaft. Photo 15B
15A
Right Hand Idler Shaft
Face the collar of the 101-35 bearing
towards the sprocket
15B
Left Hand Idler Shaft
1. Install a 606-72 idler sprocket to a 810-
32 idler shaft. Install it with the collar of
the sprocket facing down. Photo 15C
Next, on the opposite end of the shaft
install a 101-20 greasable flange fol-
lowed by a 101-35 bearing. Photo 15D
(See NOTE above).
15C
2. Install the inner axle bearing assemblies
to the inner bearing locations on both
sides of the vehicle. This consists of a
Avenger Models From Serial # V23216
WA-32A
To Next Page
