Argo S - Disassembling the Driver Clutch; Re-Assembling the Driver Clutch

Argo Service Manual Clutch System
Re-assembling the Driver Clutch (Avenger Models)
Disassembling the Driver Clutch (Avenger Models)

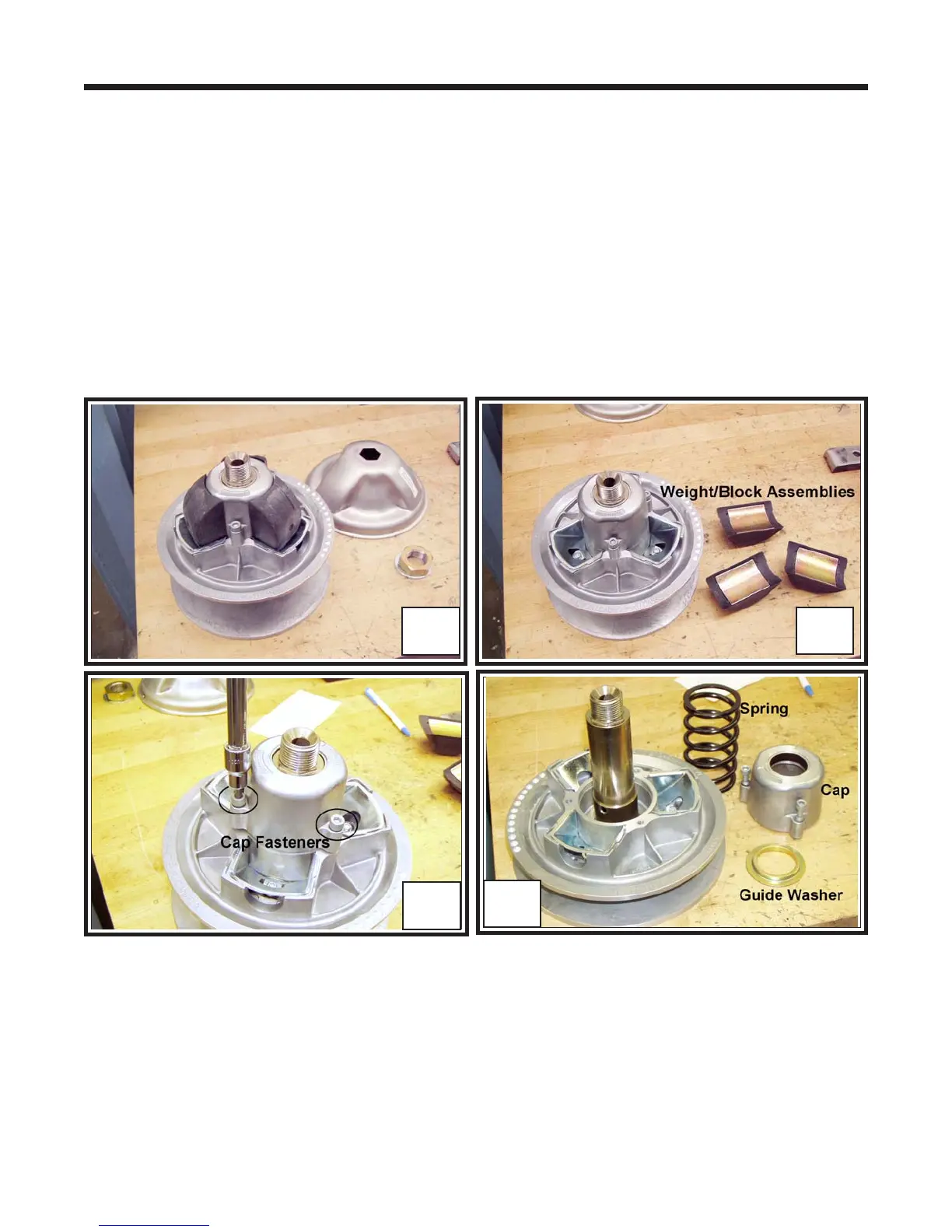

1. Remove the large hex nut, flat washer and cap. Photo 1
2. Remove the (3) block and 275gr weight assemblies. Photo 2
3. Remove the (3) fasteners securing spring cover to the sliding flange. Photo 3
4. Remove the cap, spring and spring guide washer. Photo 4
1
2
3
4
5. Slip off the 0410-0026 Sliding Flange. Photo 5
1. Slip on the 0410-0026 Sliding Flange followed by the spring guide washer. Photo 6
CA CA
CA CA
CA
UTIONUTION
UTIONUTION
UTION
Cap is under spring tension. Slowly unthread each fastener uniformly and a
little at a time until the cap is freed from the sliding flange.
2. Install the spring. Photo 7
3. Install the spring cap and secure with the (3) fasteners. Torque to 90 in. lbs. 10.0Nm
Photo 8 See IMPORTANT on following page.
CS-9A
