Brake System Argo Service Manual
BR-14
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-15
BR-16

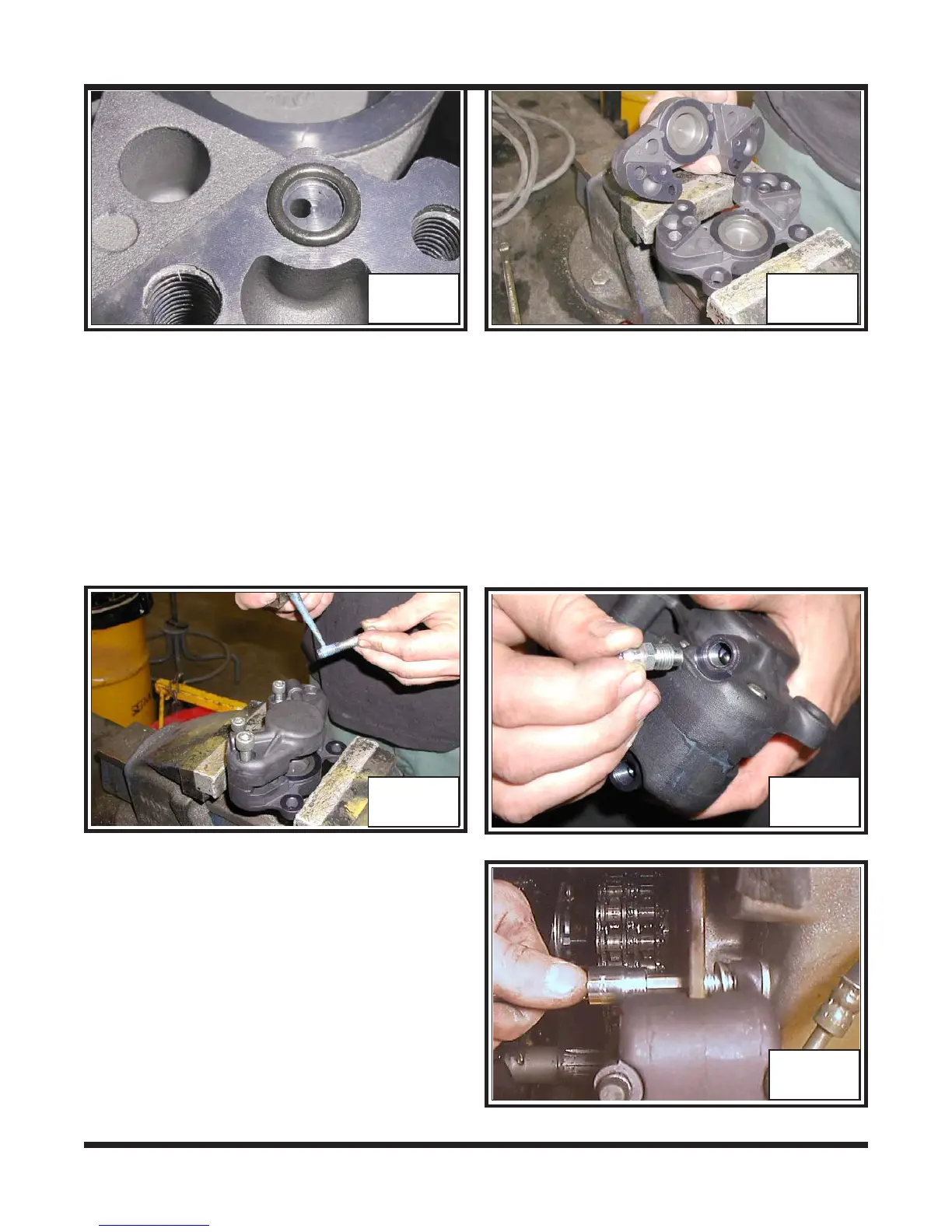

8. Reinstall the socket head bolts which hold the caliper assembly together. Use blue
LOCTITE on the threads of the fasteners. Torque the bolts to the specified torque.
Photo BR-17
9. Place the check ball and bleeding screw back into the threaded mount of the caliper
casting. Photo BR-18 Cap with the rubber plug.
10. Slide the brake pads into the calipers and secure with 2 new cotter pins.
BR-18BR-17
Hydraulic Brake Caliper Installation
1. Remount the caliper to the transmission
by aligning the access hole in the brake
disc with that of the threaded mounting
boss on the transmission. LOCTITE the
threads of the 2 hex head mounting bolts
with blue LOCTITE 242 and secure the
caliper (with the 2 flat washers) to the
transmission. Photo BR-19 Torque to
specifications. (See bottom NOTE on
page BR-10)
BR-19
