Argo S - Mechanical Brake Caliper Removal; Mechanical Brake Pad Inspection & Replacement

Brake System
Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-27
The mechanical brake caliper assembly probably needs adjustment and servicing
when:
• a drag on vehicle power and acceleration occurs
• a loss of braking effectiveness is noted
• steering does not respond properly
• excessive strength is required to steer or stop the vehicle
For a thorough examination of the brake pads, perform the servicing procedure,
Mechanical Brake Pad Inspection & Replacement.
Mechanical Brake Caliper Removal
2. Remove the front floor pan and the
firewall. See servicing procedure,
Removing the firewall in section VB
of this service guide.
3. Locate the brake caliper assemblies.
Photo BR-37
BR-36
Caliper
Mounting Bolts
Compression Springs
Ball Bearings
Brake Pads
See Mechanical Brake Pad Inspection & Replacement
Component Condition of Component Action Required
Bent, Cracked or Broken
Worn Shaft or Stripped Shaft
Twisted or Broken
Worn or Missing
Replace
Replace
Replace
Replace

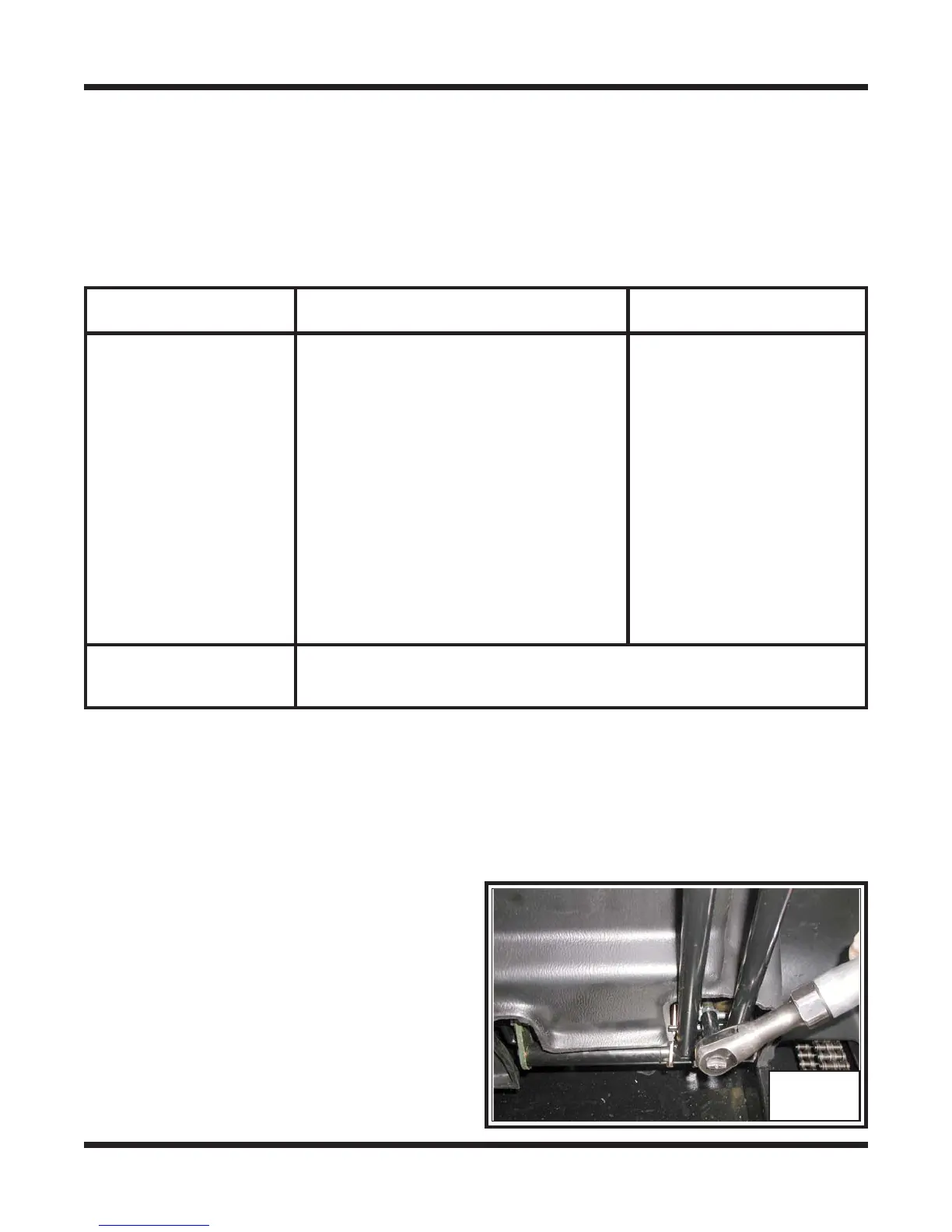

1. Remove the locknut from the brake
travel adjustment rod. BR-36
