Argo Service Manual Brake/Steering System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-3A
ST-6
ST-8

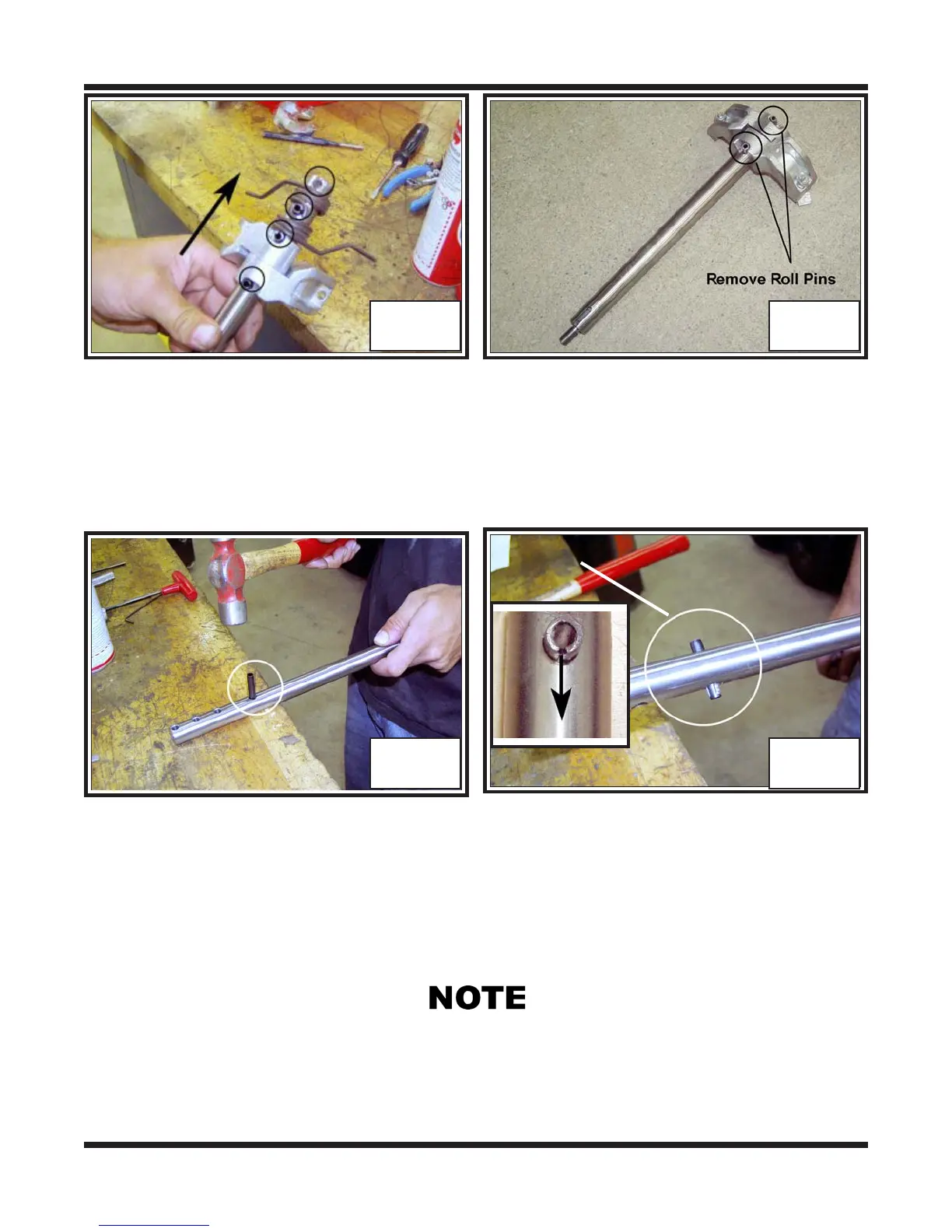

Reassembling Steering Column (Avenger Models Only - Prior to V22441)
ST-9
i. Install the Spring Pin into the Steering Shaft at the 4th hole from the end.
Photo ST-8 The roll pin should be installed such that the slot of the pin is parallel
to the shaft, and an equal amount of pin protrudes on each side of the shaft. Photo
ST-9
ii. Slip the first Steering Arm on to the Steering Shaft, followed by the Retaining ring,
seating it to the groove on the shaft. Install the second Steering arm. Orient them as
illustrated in Photo ST-10
iii. Install the 2nd Spring Pin, followed by a centering spring. Install the 3rd Spring Pin,
followed by a 2nd centering spring and 4th Spring Pin. Photo ST-11 & 12
Please observe the orientation of the free end of the springs. Each is pointing in the same
direction as the steering arms. Photo ST-13
ST-7
