Wheels, Axles & Chains Argo Service Manual

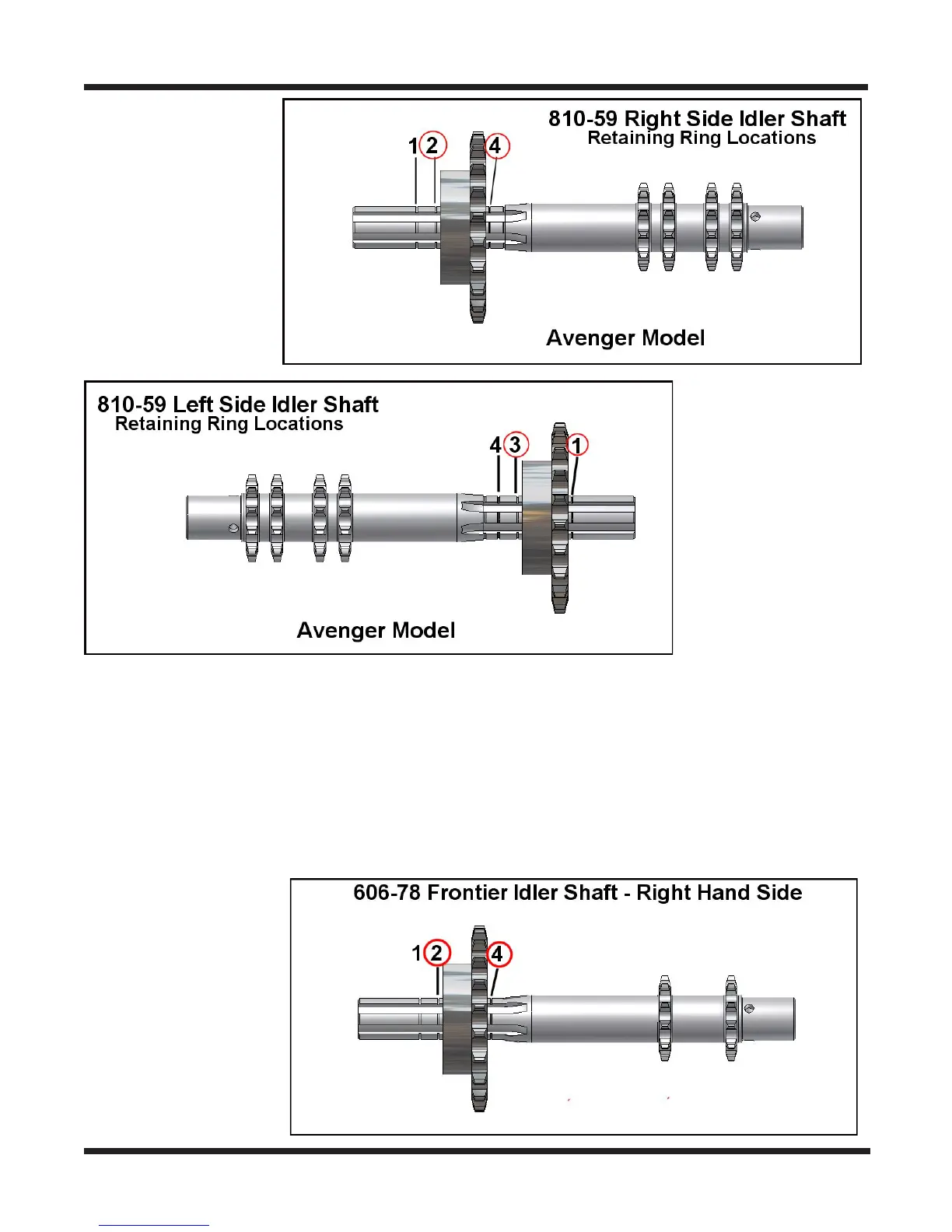

Diagram A
Diagram B
Assembling Frontier Idler Shafts to Vehicle
Installation of the 606-78 Idler Shaft assembly on ARGO Frontier models requires the
assembly of a 107-10 Retaining Ring to each side of the 606-81 Idler Sprocket. These
retaining rings help limit allowable movement of the idler sprocket under application.
Each 606-78 Idler Shaft has (4) four retaining ring grooves machined into the shaft to
accomodate either a left hand side or right hand side idler shaft replacement. For correct
retaining ring locations, refer to Diagram C and D
Diagram C
WA-35A
