Transmission Argo Service Manual
TR-10
Disassembling the Transmission
1. Remove the Drain Plug & drain the oil from the transmission. Photo TR-09
2. Remove the Dipstick.
3. Remove the Retaining Ring that secures the Reverse Idler Dowel Pin on the outside
of the Cover. Photo TR-10
4. Tap the Dowel pin back into the transmission far enough to free it from the Side
Cover. You will need a drift punch to tap it below the surface of the cover. TR-11
5. Remove all side cover fasteners. Photo TR-12

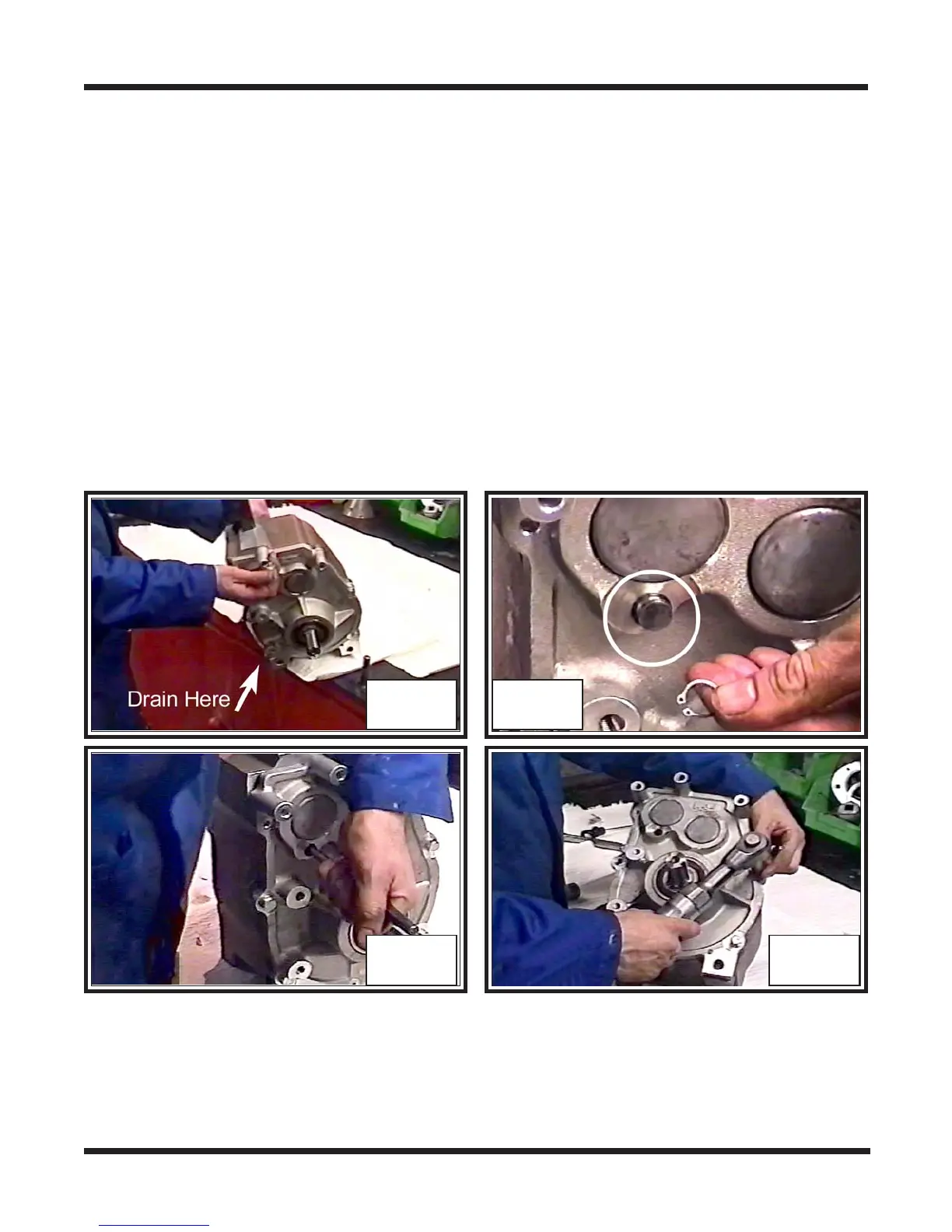

TR-09 TR-10
TR-11 TR-12
6. Position the transmission to remove the Retaining Ring on the Output Shaft of the
Housing side. Photo TR-13
7. Remove the Shim from the Output Shaft. Photo TR-14
