Argo Service Manual Transmission
TR-9

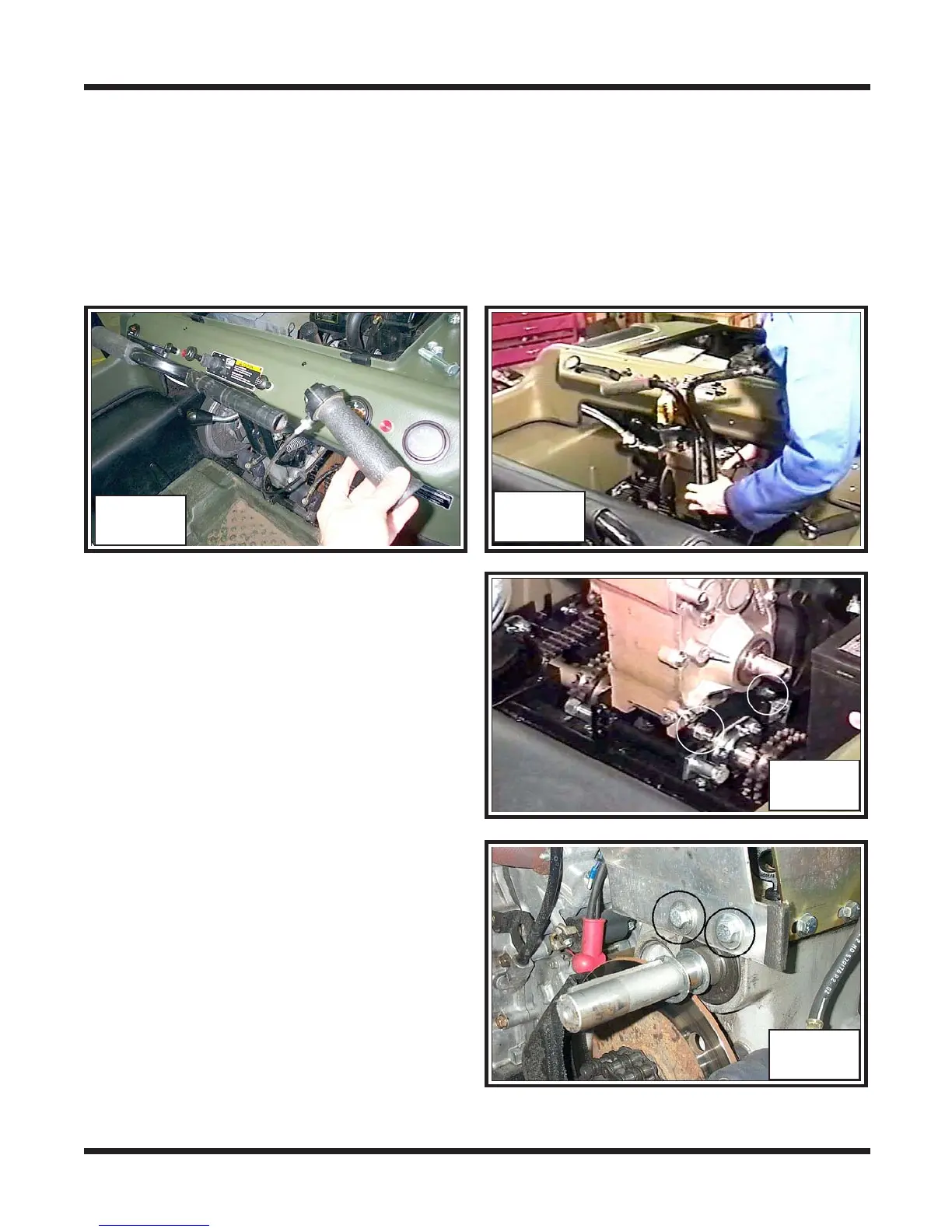

8. Unfasten the twist grip assembly from the steering handle and remove it.
Photo TR-05
9. Remove the entire hydraulic brake system from the vehicle. The calipers, master
cylinders and brake lines can all remain attached without the loss of any brake fluid.
Photo TR-06
TR-05
TR-06
10. Perform the servicing procedure Re-
moving the Drive Chains, in Section
WA of this service manual.
11. Perform the servicing procedure, Re-
moving the Brake Disc, in Section BR
of this service manual.
12. Locate, unfasten and remove the (2)
bolts, lock washers and nuts that secure
the transmission to the power pack
frame. Photo TR-07
14. Loosen off the carriage bolt of the dash
support and turn it 90 degrees. Tilt the
transmission back towards the drivers
compartment and lift it from the vehicle.
TR-07
TR-08
13. Remove the transmission guard from the
transmission. It is secured with (2) bolts
and (2) flatwashers. Photo TR-08
15. Place the transmission on a clean workbench for disassembly.
