TR-22A
Transmission Argo Service Manual
Assembling Transmission Components to Housing

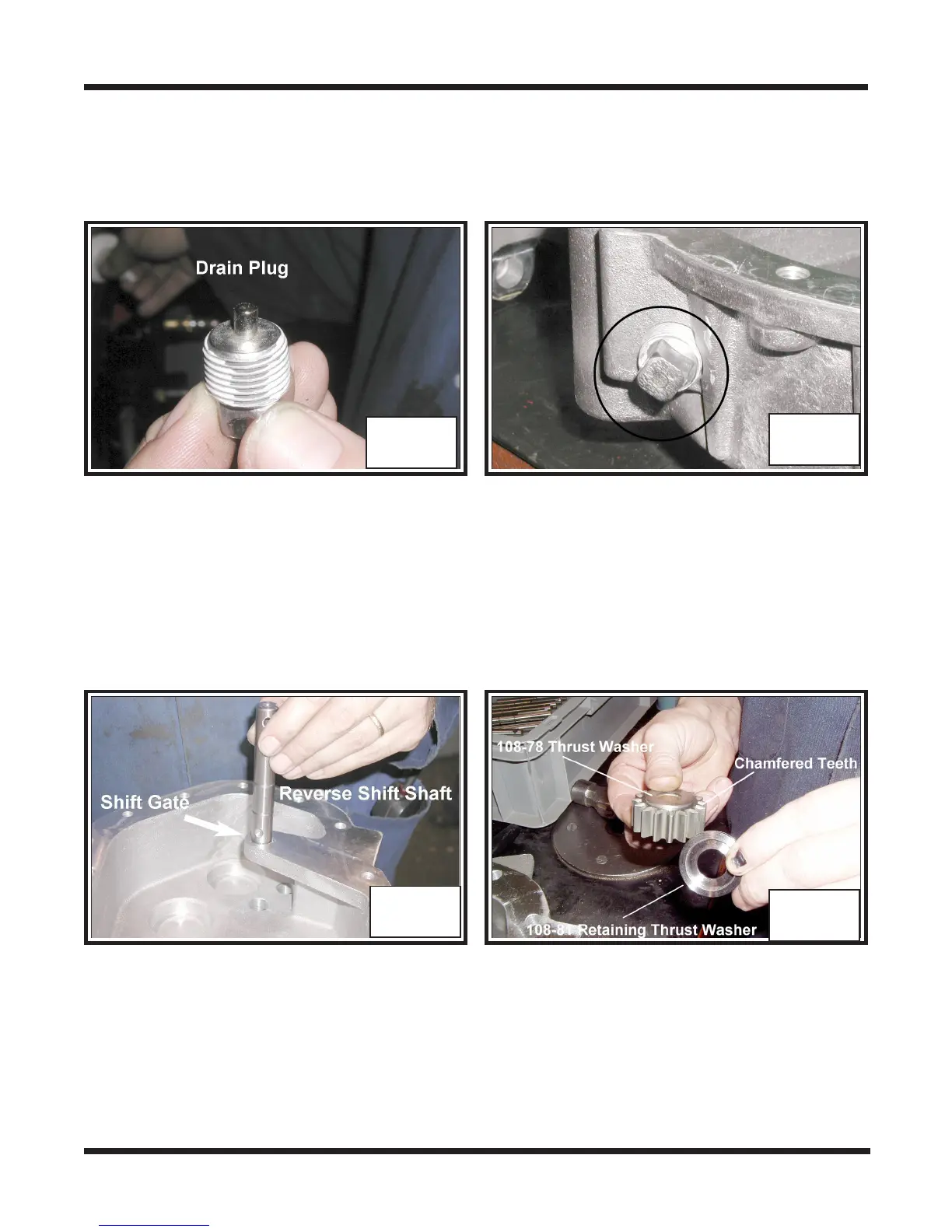

1. Apply some LOCTITE pipe sealant to the threads of the 103-02 drain plug and in-
stall into the housing. Photo TR-87 & 88
2. Start the 34-114 Reverse Shift Shaft into the housing boss as illustrated in
Photo TR-89.
3. Place a 108-78 Thrust washer above the 34-108 Reverse Idler, and a 108-81 Retain-
ing Thrust Washer (machined side down), below the Reverse Idler. Push the 34-114
Reverse Shift Shaft completely through the Reverse Gear and washers and into the
opposite side of the housing. Install the Reverse gear with the chamfered teeth fac-
ing up. Photo TR-90 & 91
5. Install the 34-32 Spring into the machined hole of the 34-102 Right Hand Housing at
the Reverse Shift Shaft location. Photo TR-92
6. Install the 109-05 Steel Ball to the top of the Spring. Photo TR-93
7. Push down on the Steel Ball using the access hole from the top of the Transmission
Housing. While the ball is compressed, press the shaft over top of the ball.
Photo TR-94
TR-87
TR-88
TR-89
TR-90
