Argo Service Manual Transmission
TR-81

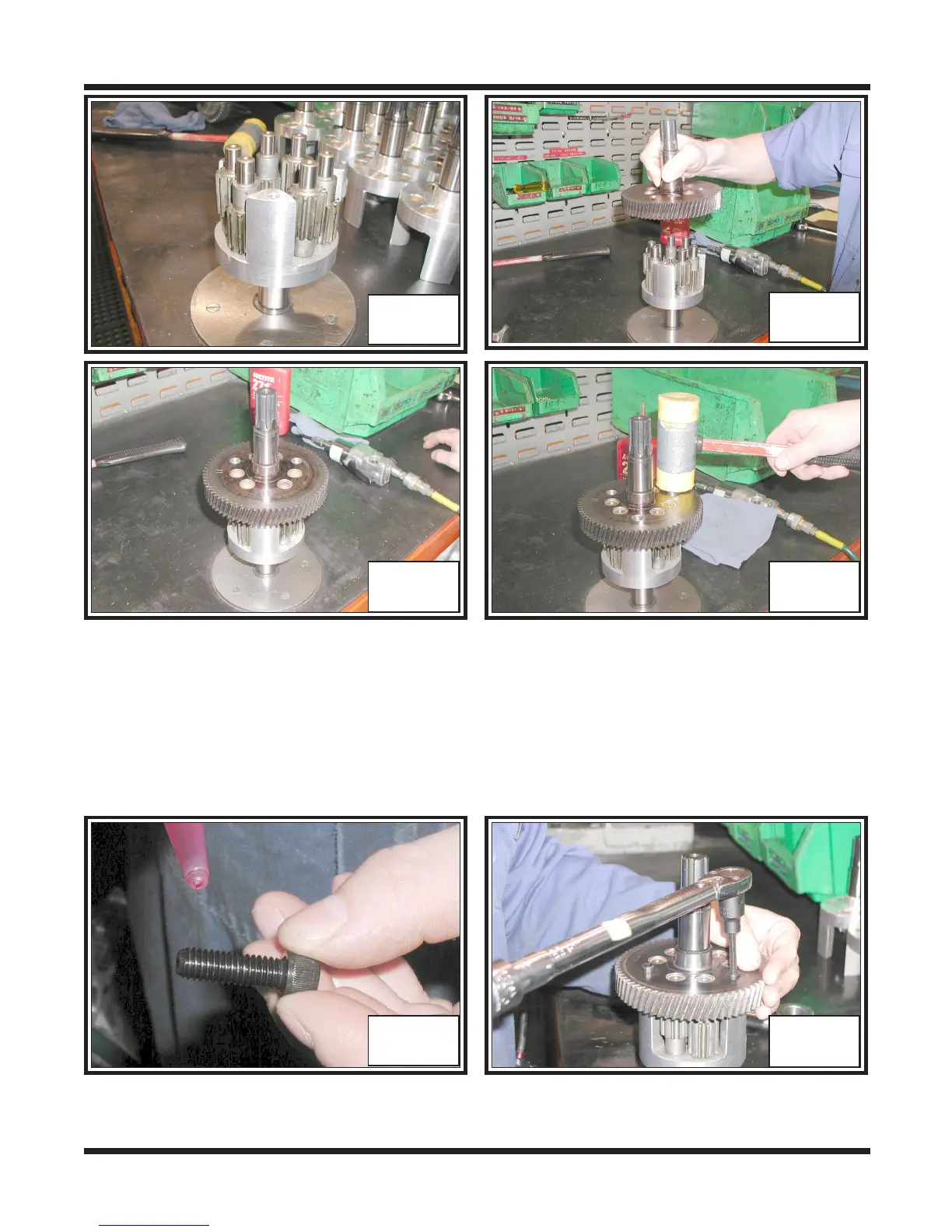

16. Assemble the Gear Plate to the Aluminum Cage. Align the top of the Pinions in the
Cage, with the Oilite Bushings in the Gear Plate. Photo TR-82 & 83
TR-82
TR-83
18 Apply Red 271 LOCTITE to each of the (3) 112-143 fasteners, Photo TR- 85, and
tighten down to 35 FT/LBS. Photo TR-86
17. Seat the Gear Plate to the Aluminum Cage using a soft faced mallet. Photo TR-84
TR-84
TR-85 TR-86
To Next Page
