Transmission Argo Service Manual
Assembling the Input Shaft (Transmissions built prior to A5883)
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT

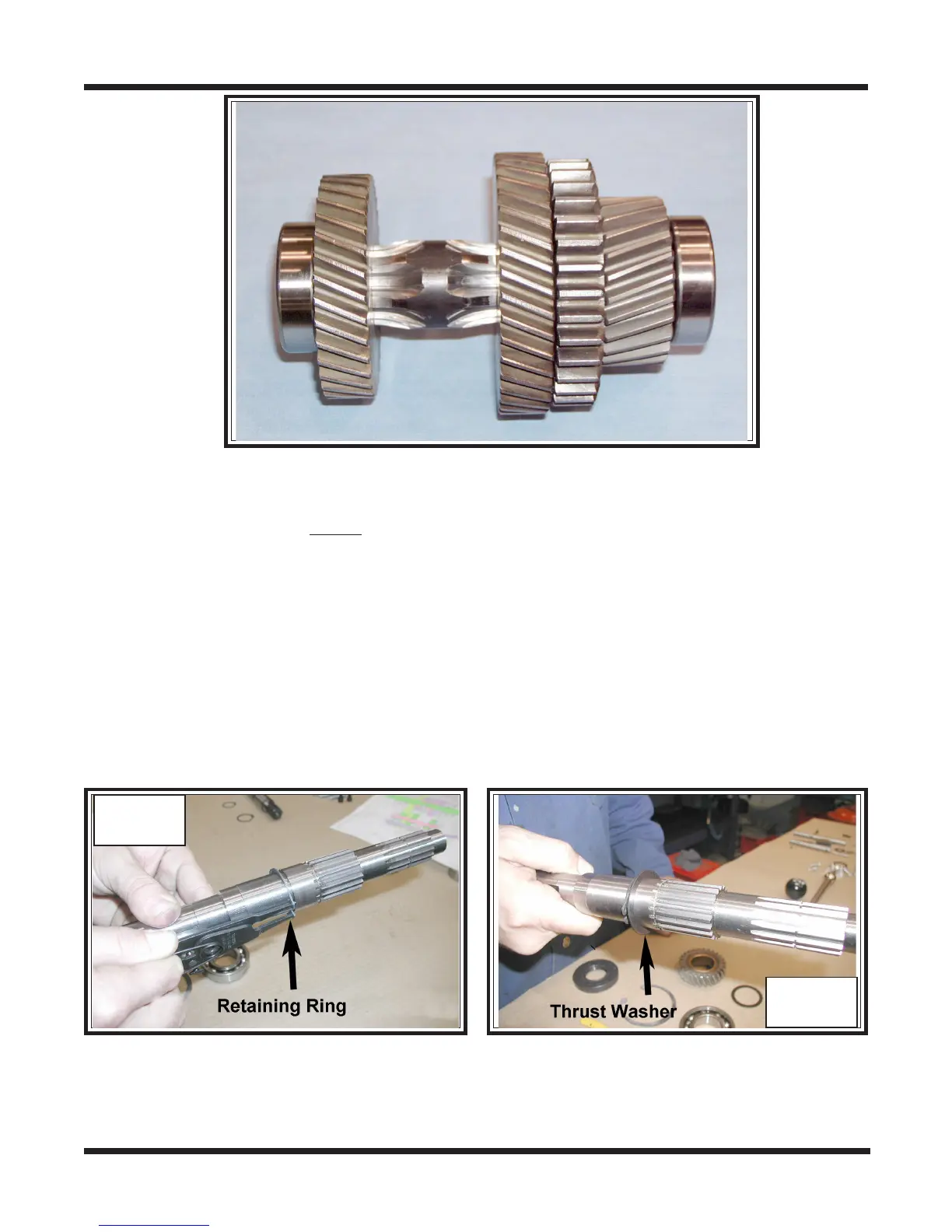

1. Install the 107-02 Retaining Ring to the 34-104 Input Shaft. Photo TR-48
Remember to do the comparison check of this retaining ring as described on page
TR-9
2. Slip a 108-79 Thrust Washer on to the Input Shaft and up against the previously
installed retaining ring. Photo TR-49
TR-48
TR-49
3. Slip the 34-105 High Gear Pinion (with 4 dog teeth), or 34-128 High Gear Pinion
(with 3 dog teeth), up against the Thrust Washer. Photo TR-50
See Note Regarding number of teeth on following page
For transmissions built from A5883 see Pages TR-35A for revised Input Shaft
Assembly guidance.
