Transmission Argo Service Manual
TR-18
TR-43 TR-44

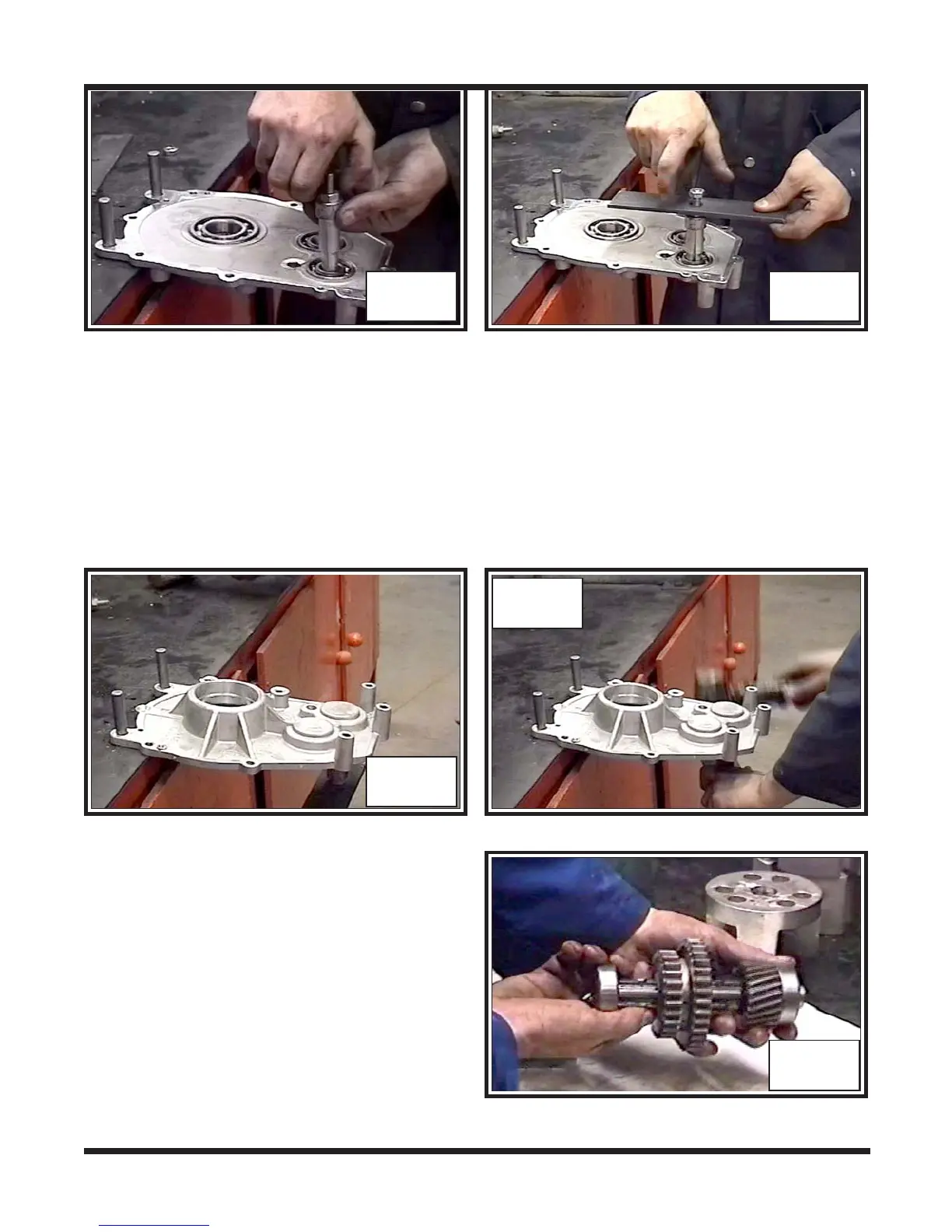

33. Take a piece of flat stock with a hole drilled to the center and slip it on to the
threaded adjustment rod of the puller. Secure it with a nut. Photo TR-44
34. Flip the Cover on the assembly jig so that the 101-01 Bearings are facing down.
Photo TR-45
35. Use a mallet to strike the flat stock and knock the 101-01 Bearing from the casting.
Photo TR-46
TR-45
TR-46
Disassembling the Shifter Assembly
36. The Shifter Assembly consists of the
Splined Shaft, Drive Gear and Double
Gear. Photo TR-47 The Double Gear
slides along the Splined Shaft and locks
into 4 different shift gate positions (Re-
verse, Neutral, Low & High Gear).
Each position is locked by a Ball &
Spring within the Double Gear, and
gates machined within the Splined
Shaft.
TR-47
