Brake/Steering System Argo Service Manual
BR-4A
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421

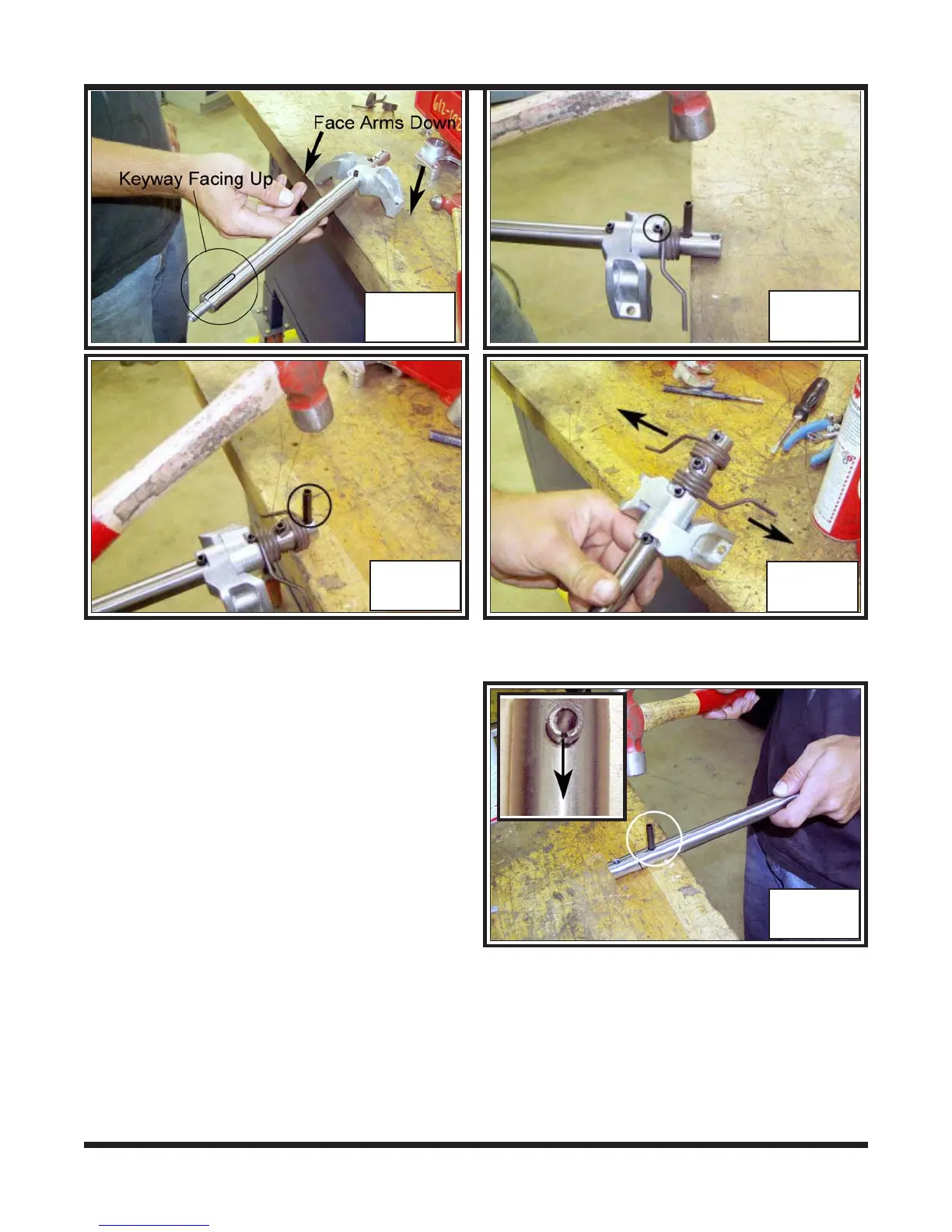

iii. Next, Install a Retaining Ring to the machined groove on the Steering Shaft. This
retaining ring will be located between the 2 steering arms.
ST-10
Roll pin slot parallel
with shaft
ST-11
ST-12
ST-13
Vehicles manufactured from V22441, C22453, R22452, B14700, A14743, N14708:
i. Install the Spring Pin at the 2nd hole
from the end on the Steering Shaft The
roll pin should be installed such that the
slot of the pin is parallel to the shaft,
and an equal amount of pin protrudes
on each side of the shaft. Photo ST-14
ii. Slip a steering arm on to the shaft and
up against the previously installed
Spring Pin.
iv. Install the second steering arm and last spring pin. Photo ST-15. Orient as in Photo
ST-16
ST-14
