Argo Service Manual Clutch System
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
CS-15

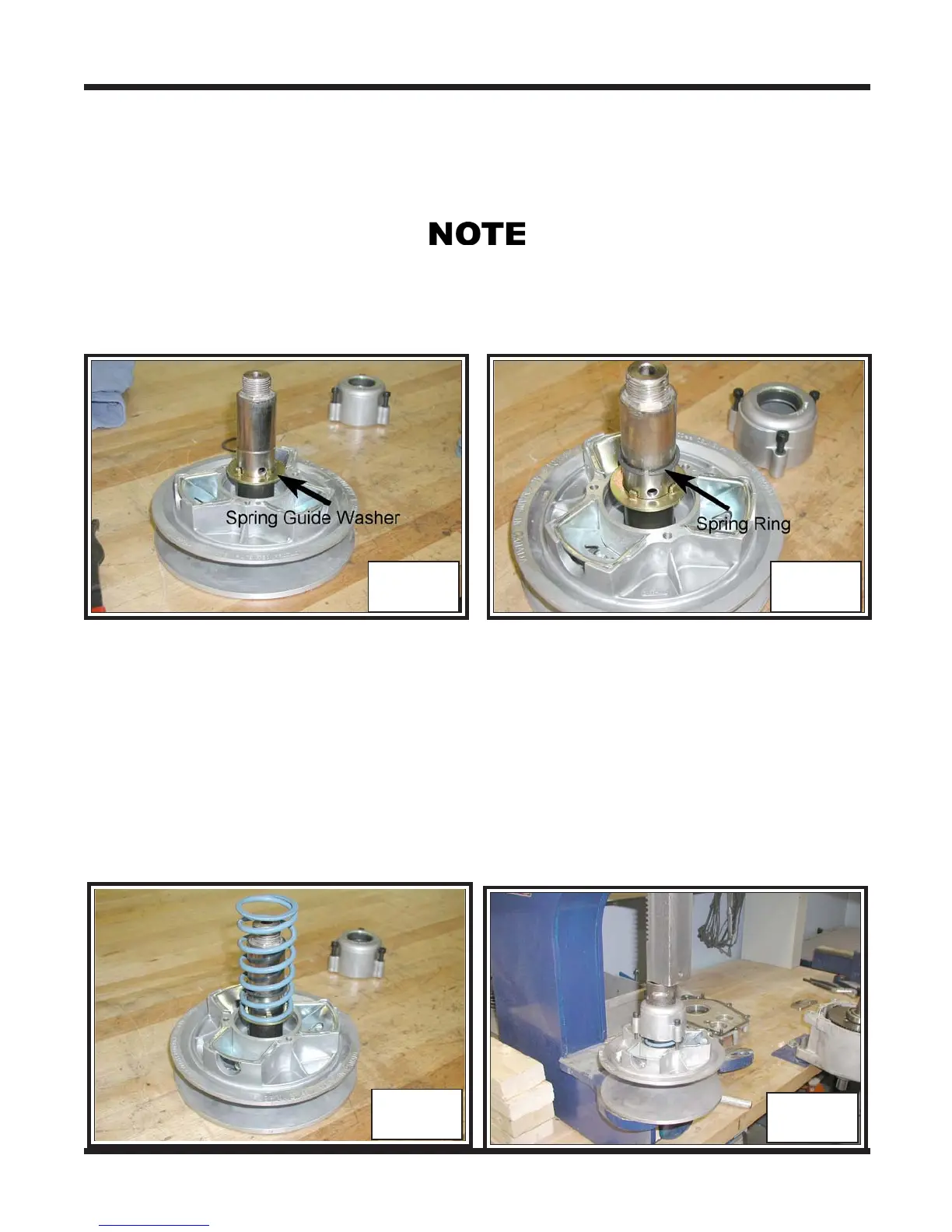

3. Place the spring guide washer on top of the retaining ring (or to the machined shoul-
der on Conquest clutches). Photo CS-34
4. Install the spring ring to the second position on the shaft of the fixed pulley.
Photo CS-35
This spring ring is only installed on vehicles manufactured from serial numbers CB17506,
RB17610, BF12007, SN12147, S12150 and all R, B, N, C & A models. Clutches prior to
the above serial numbered vehicles do not utilize this spring ring.
CS-34 CS-35
5. Set the spring to the top of the spring guide. Photo CS-36
6. Install the spring cap and fasten with the 3 cap screws. Place the clutch assembly
into an arbor press to assist in compressing the spring. Partially compress the spring
while at the same time raising the moveable face upwards. Be sure each cap screw is
started and tightened down evenly. Torque to specifications.
Photo CS-037
IMPORTANT
Each cap screw should have a locking style flat washer
CS-36
CS-37
