Transmission Argo Service Manual
TR-20

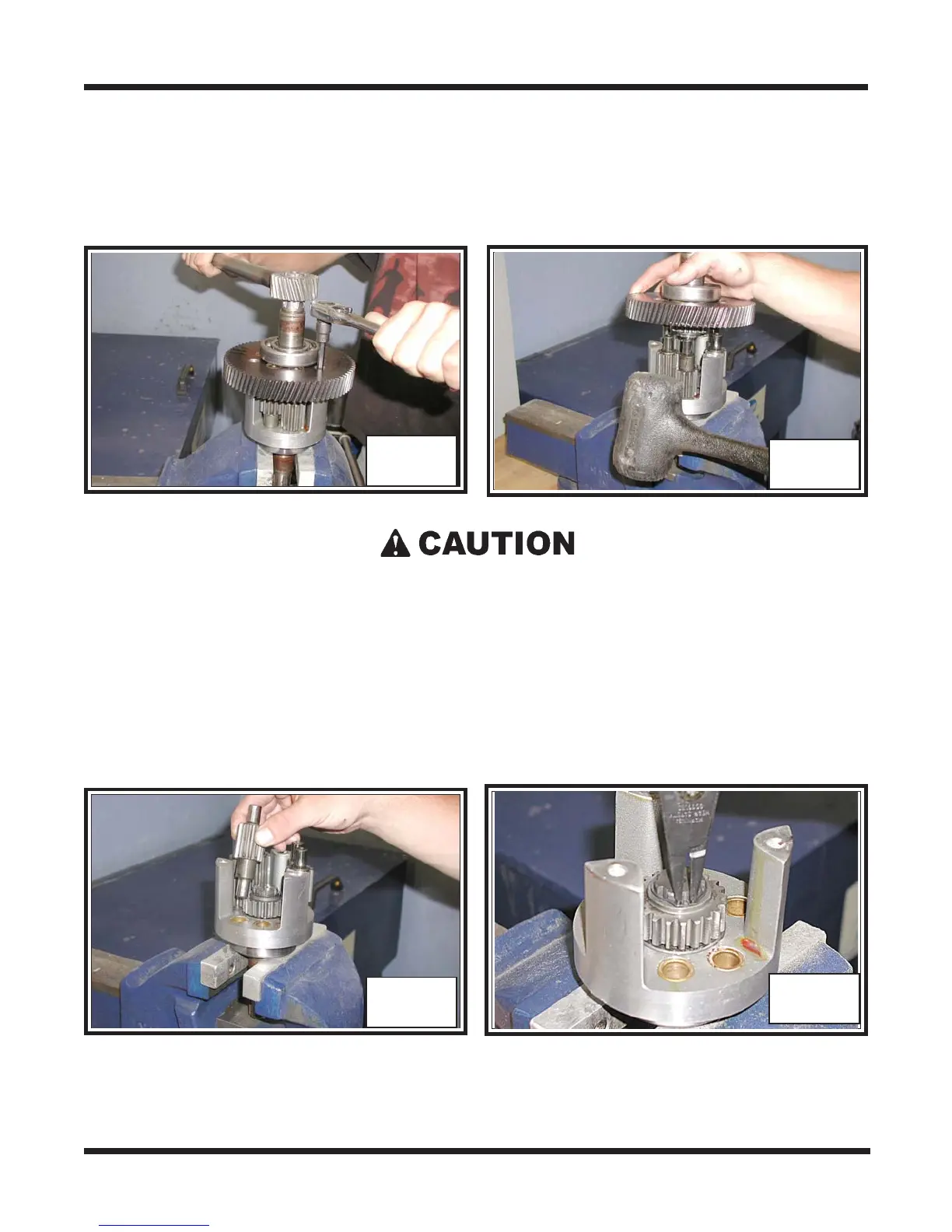

41. Hold the Output Shaft from turning while removing the 3 Fasteners that hold the
Gear Plate and Aluminum Cage together. Photo TR-52
42. With the Fasteners removed, gently tap the Gear Plate from the Aluminum Cage
using a soft faced mallet. Photo TR-53
TR-52
TR-53
TR-54
TR-55
When lifting the Gear Plate from the Cage, be aware of any Pinions that may come
with the Gear Plate. Avoid any of these falling to the floor. Any damage to these
pinions can result in reduction of gear life or noise issues.
43. Remove each of the (6) Pinions. Photo TR-54
44. Remove the Retaining Ring that secures the Sun Gear to the Output Shaft on the
Aluminum Cage side. Photo TR-55
45. Slip the Sun Gear from the Output Shaft. Photo TR-56
46. Remove the Retaining Ring that secures the second Sun Gear to the Output Shaft on
the Gear Plate side. Photo TR-57
