Brake System Argo Service Manual
BR-32
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-52

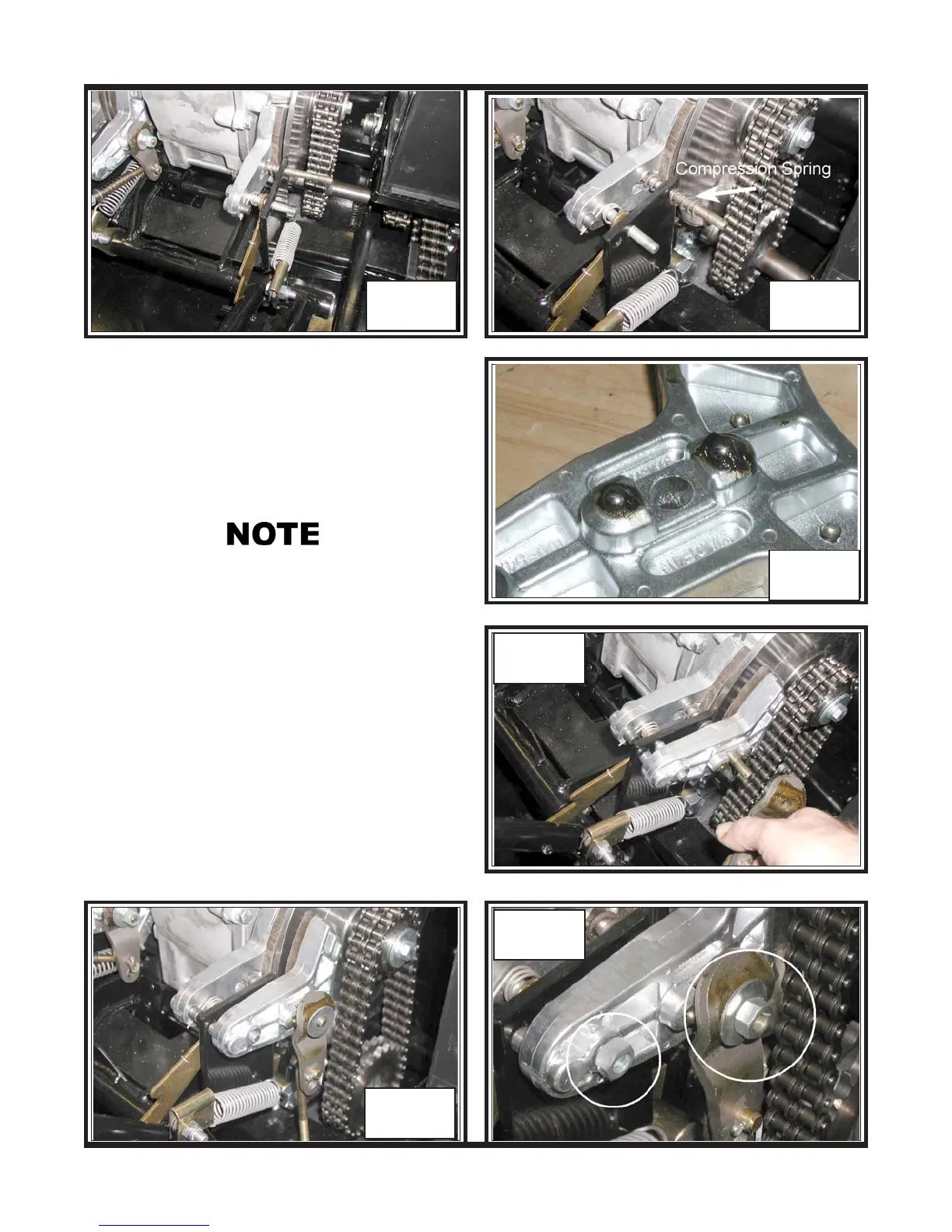

7. Apply a little axle grease to the two ball
bearing cavities of the second caliper
and place two ball bearings into these
cavities. Lightly tap each ball bearing
with a soft faced mallet to seat it within
the cavity. Photo BR-53
BR-53
The caliper with the 2 steel ball bearings are
always on the side of the brake cam
8. Place the second caliper to the mount-
ing bolts.
BR-54
BR-55
BR-56
BR-51
10. Install a flat washer and locking nut to
the mounting bolt at the cam and a lock-
ing nut at the rear mounting bolt. Photo
BR-56
9. Install the cam assembly and flat
washer, to the longer of the two
mounting bolts. Photo BR-54 & 55
To Next Page
