Brake System
Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
BR-45

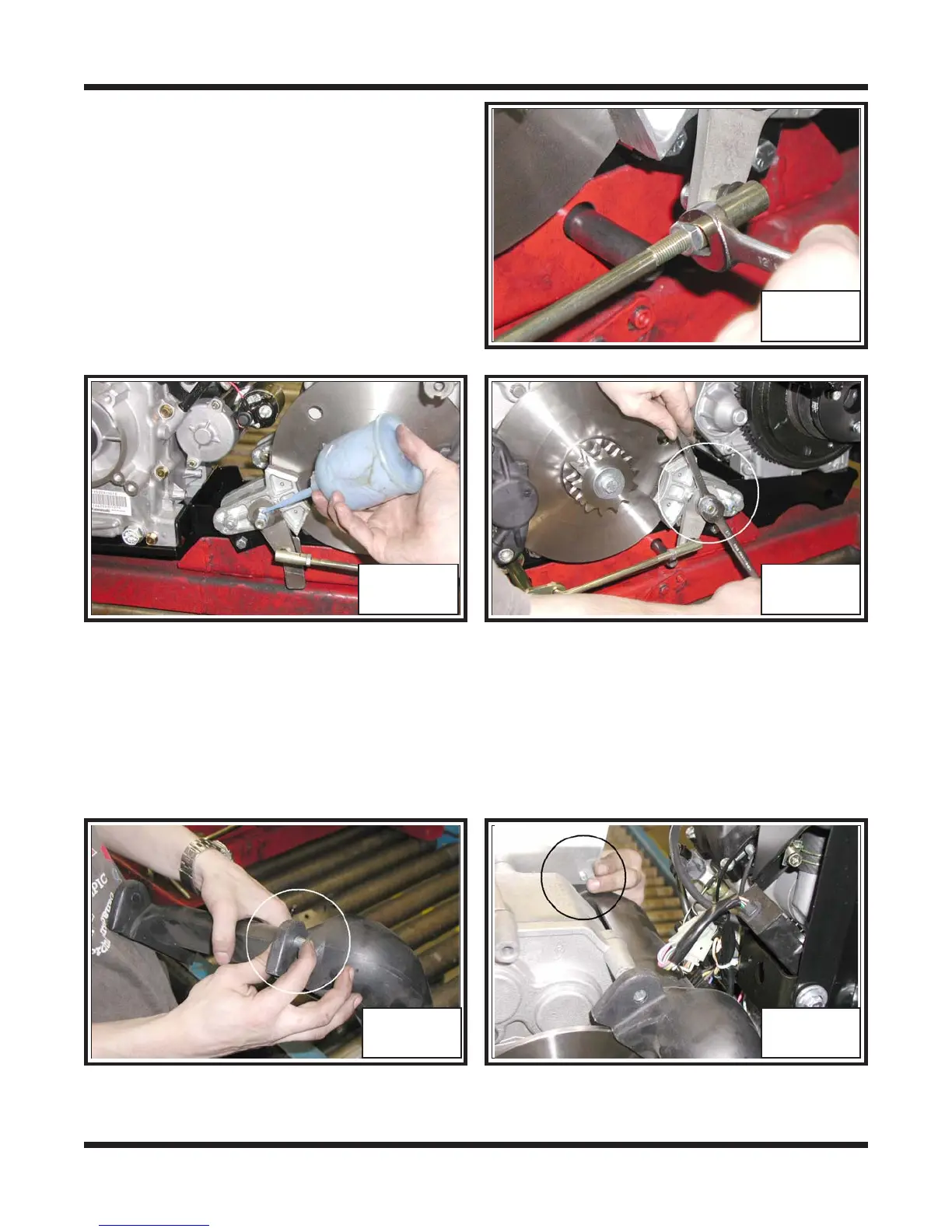

23. Tighten the jam nut at the ball joint on
the parking/emergency brake rod.
Photo BR-88
25. Locate the brake cooling duct and insert a spacer into the 2 mounting holes on each
side of the duct. Photo BR-91
24. Apply blue 242 LOCTITE to the threads
of the bolt at the brake cam and thread a
second locknut up to and against the first
one. Hold the inner nut with an open
end wrench while tightening the second
one up against it. Photo BR-89 & 90
26. Mount the brake cooling duct to the top of the transmission using a bolt, flat
washer and nylon locknut. Fasten this to the hole in the driven clutch guard.
Photo BR-92 & 93
BR-88
BR-89 BR-90
BR-91 BR-92
