14. Set the Handle Bar assembly into place
and cover with the Upper Handle Bar
Clamp. The Handle Bar clamp is se-
cured into place with four fasteners.
Tighten down the fasteners in an "X"
pattern indifferent to starting location
at a torque specification of 10 - 12 Ft.

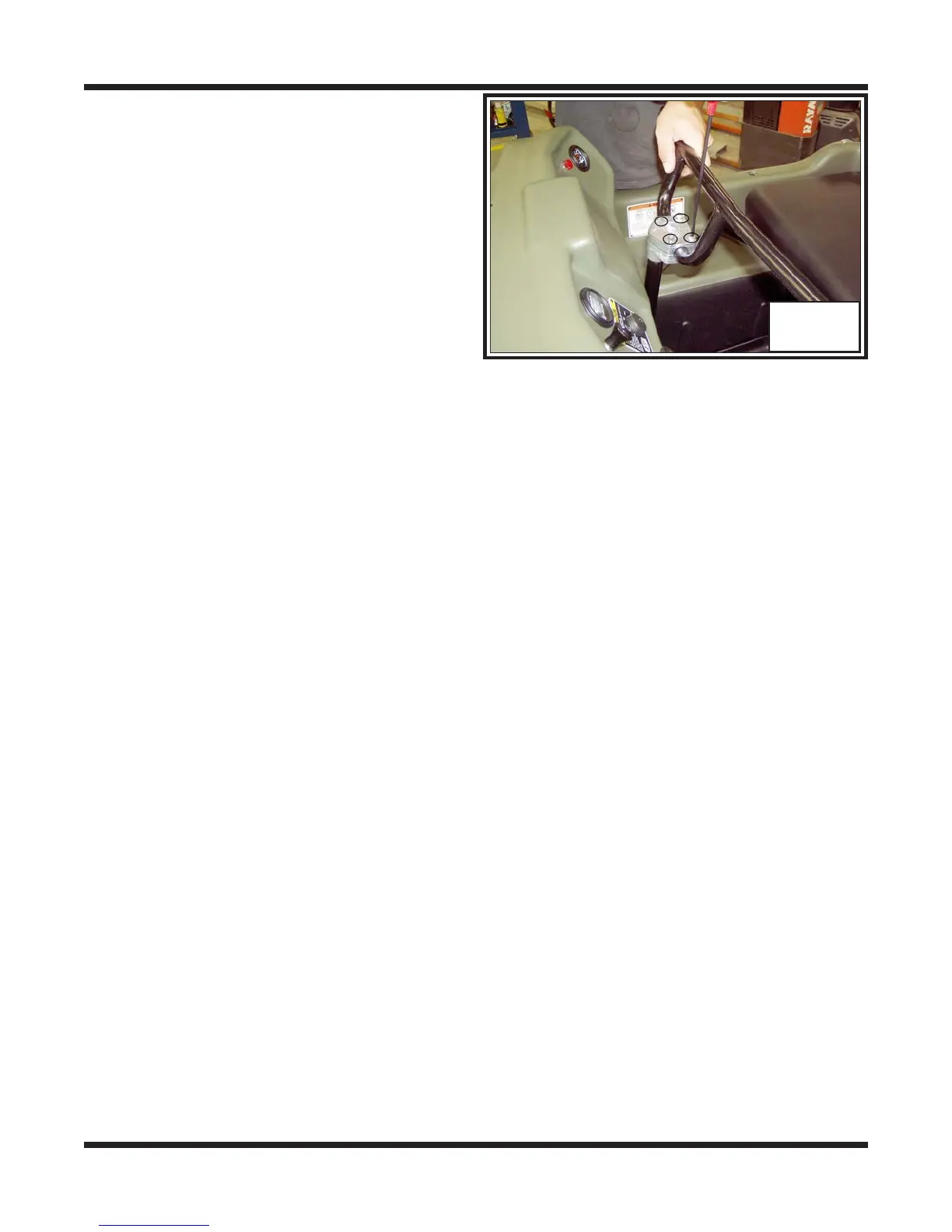

LBS (13.5 - 16N.m) Photo ST-24
ST-24
15. Apply firm pressure to handle bars in
each steering direction to seat the roll
pins.
17. Perform the servicing procedure, Hydraulic Plunger Pin Adjustment.
16. Reattach the hand brake lever Cable across the two brake Steering Arms.
