BR-14A

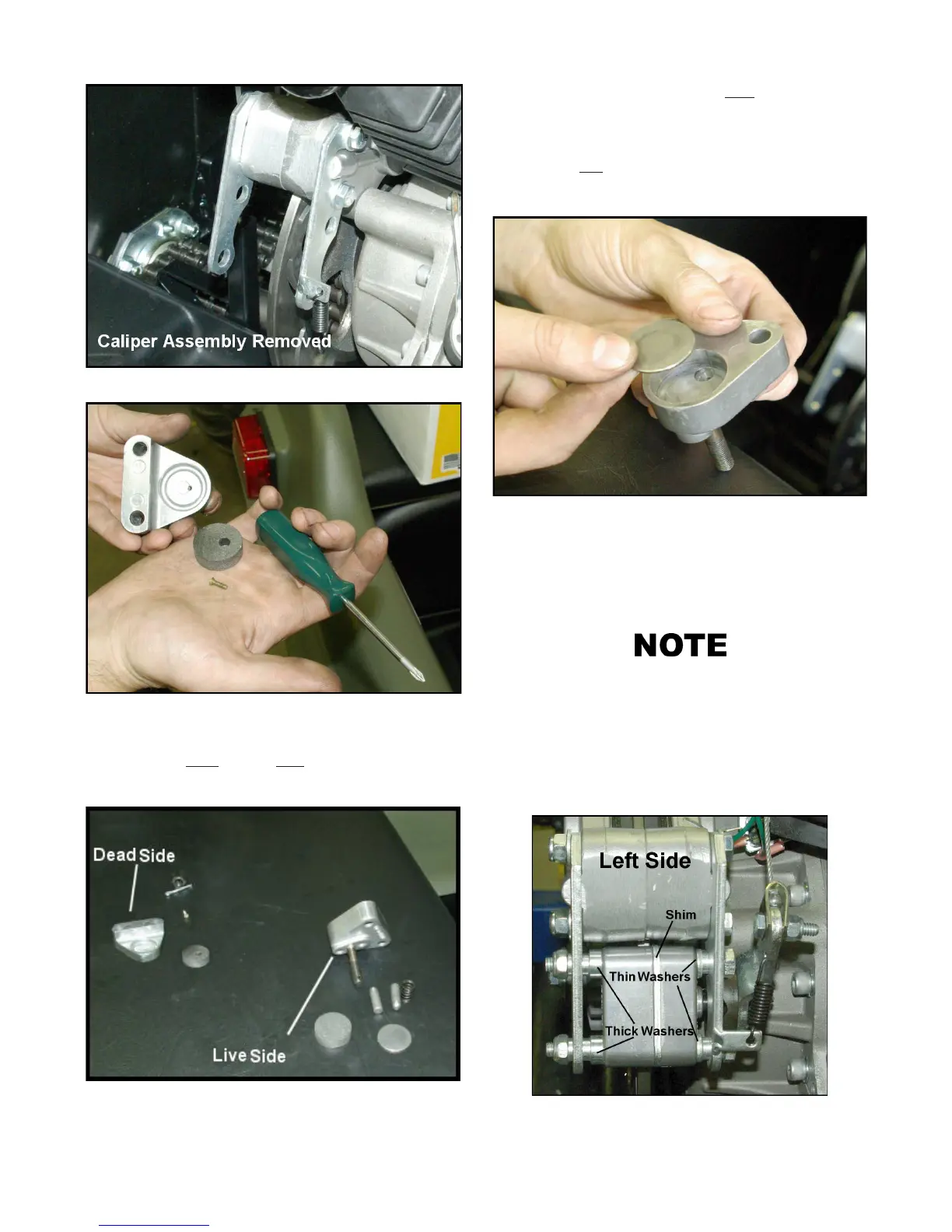

Figure 5 - Caliper Removed
Figure 6 - Pad Removed.
8. Lay out both Dead Side and Live Side Brake housings with
new brake pads. Figure 7.
Figure 7 - Lay Out Housings.
9. Install the new brake pad to the
dead side housing and
secure with screw. Apply some LOCTITE 242 Blue to the
threads of the screw before installing.
10. Locate the live side brake housing and slip the shim washer
into the cavity first (Figure 8), before installing the brake
pad.
Figure 8 - Installing Shim.
11. Install the second brake pad to the top of the previously
installed shim.
Reassembling the Emergency/Parking Brake Caliper to
the Vehicle
The following example illustrates the assembly of the Left
hand side Emergency/Parking Brake Caliper.
Mounting bolts for both calipers are always inserted facing
to the left with the head of the mounting bolt on the right
hand side of the caliper. Refer to Figures A & B for correct
orientation of mounting bolts as well as washer & shim loca-
tions.
Figure A - Left Side.
Ontario Drive & Gear
Phone (519) 662-2840 Fax (519) 662-2421
