Clutch System Argo Service Manual
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
CS-8

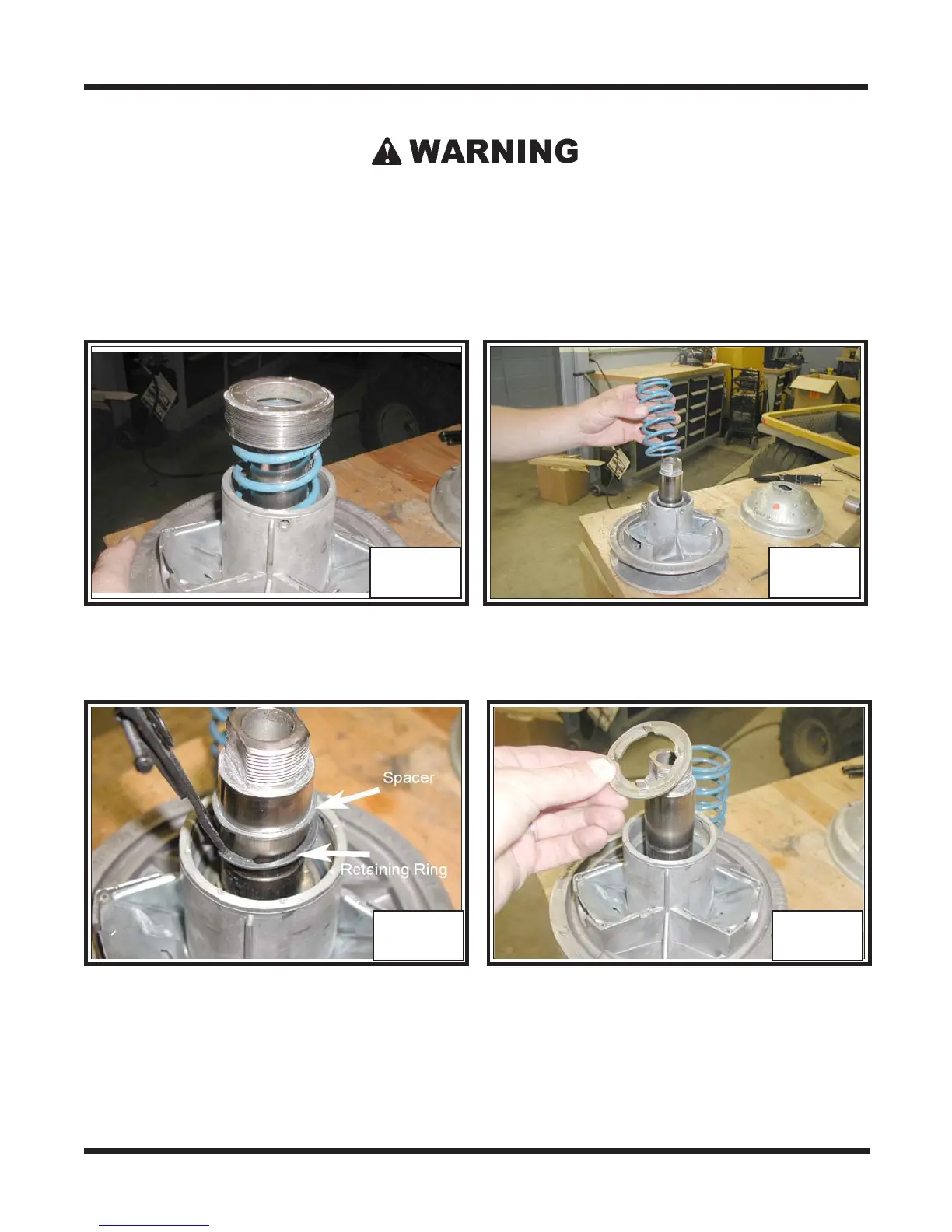

6. Unthread the bushing from the moveable face. Photo CS-6
7. Remove the spring. Photo CS-7
CS-6 CS-7
This cap is under spring tension and will fly apart if precautions are not taken to
hold it down while it is unthreaded from the moveable face. Be sure to always wear
eye protection when servicing the clutches, or any other vehicle component for that
matter, with the potential of flying parts.
9. Remove the spring guide plate. Photo CS-9
11. Separate the pulley halves. Photo CS-11
10. Remove the second retaining ring and any shim(s) that may be present.
Photo CS-10 (Response, Bigfoot, Vanguard2 and Vanguard models only).
Conquest clutches utilize a machined shoulder eliminating this retaining ring
application.
8. Remove the retaining ring and any spacer(s) that may be present. Photo CS-8
CS-8 CS-9
