Argo Service Manual Wheels, Axles & Chains
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
WA-37

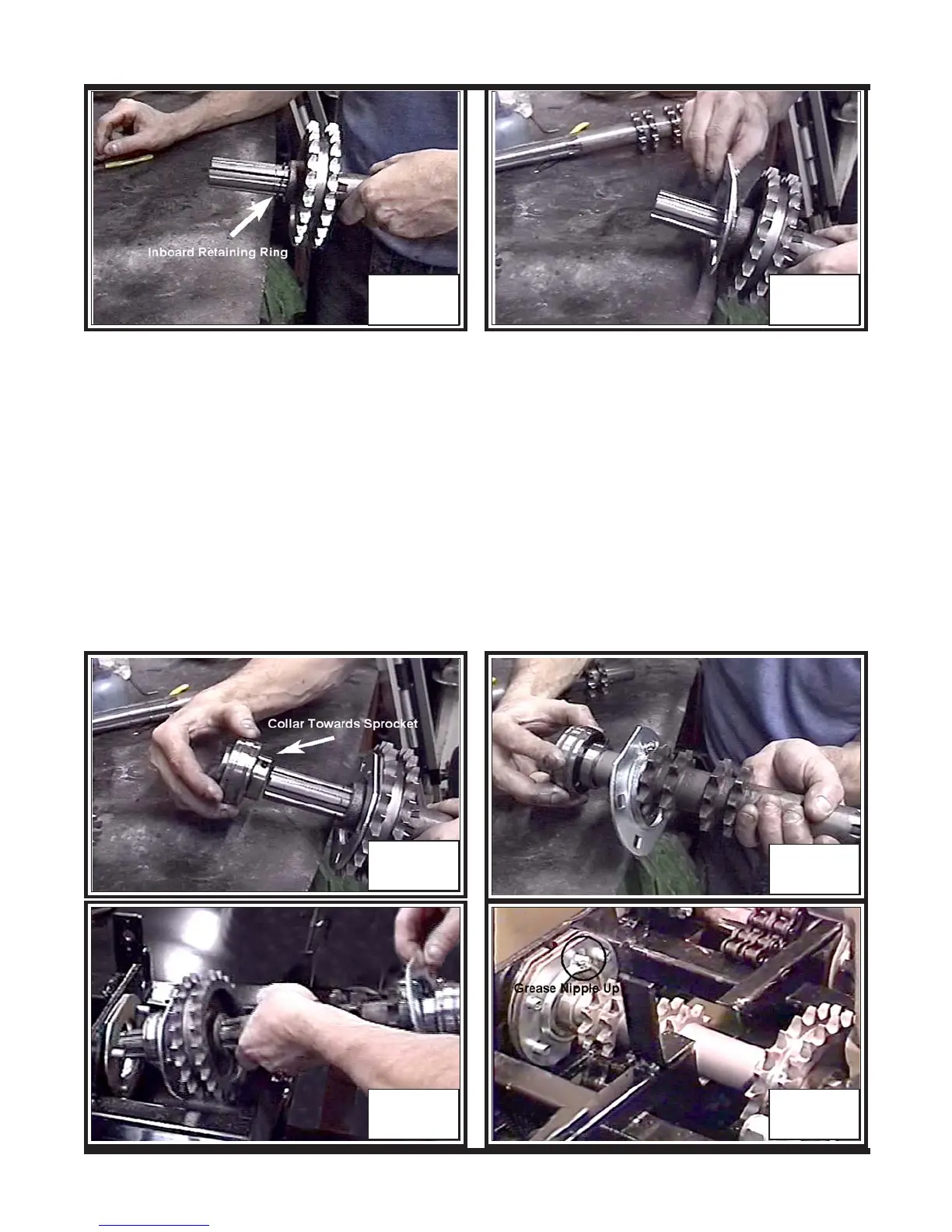

ii. Slip the greasable flange to the same side as the sprocket. Photo WA-82
iii. Slip the inner bearing on to the shaft with the set screws and collar facing towards
the sprocket. Photo WA-83
iv. Install a greasable flange and the outer bearing to the opposite side of the shaft, once
again facing the collar and set screws of the bearing inwards. Photo WA-84
v. Install the idler shaft assembly into the vehicle. Slip the inner bearing end of the
shaft in first, then drop the outer bearing end connecting bearing and flanges to the
studs. Photo WA-85
WA-81 WA-82
IMPORTANT
Ensure that the greasable flanges are installed with the greaseable fitting facing up.
Photo WA-86
WA-83
WA-84
WA-85 WA-86
