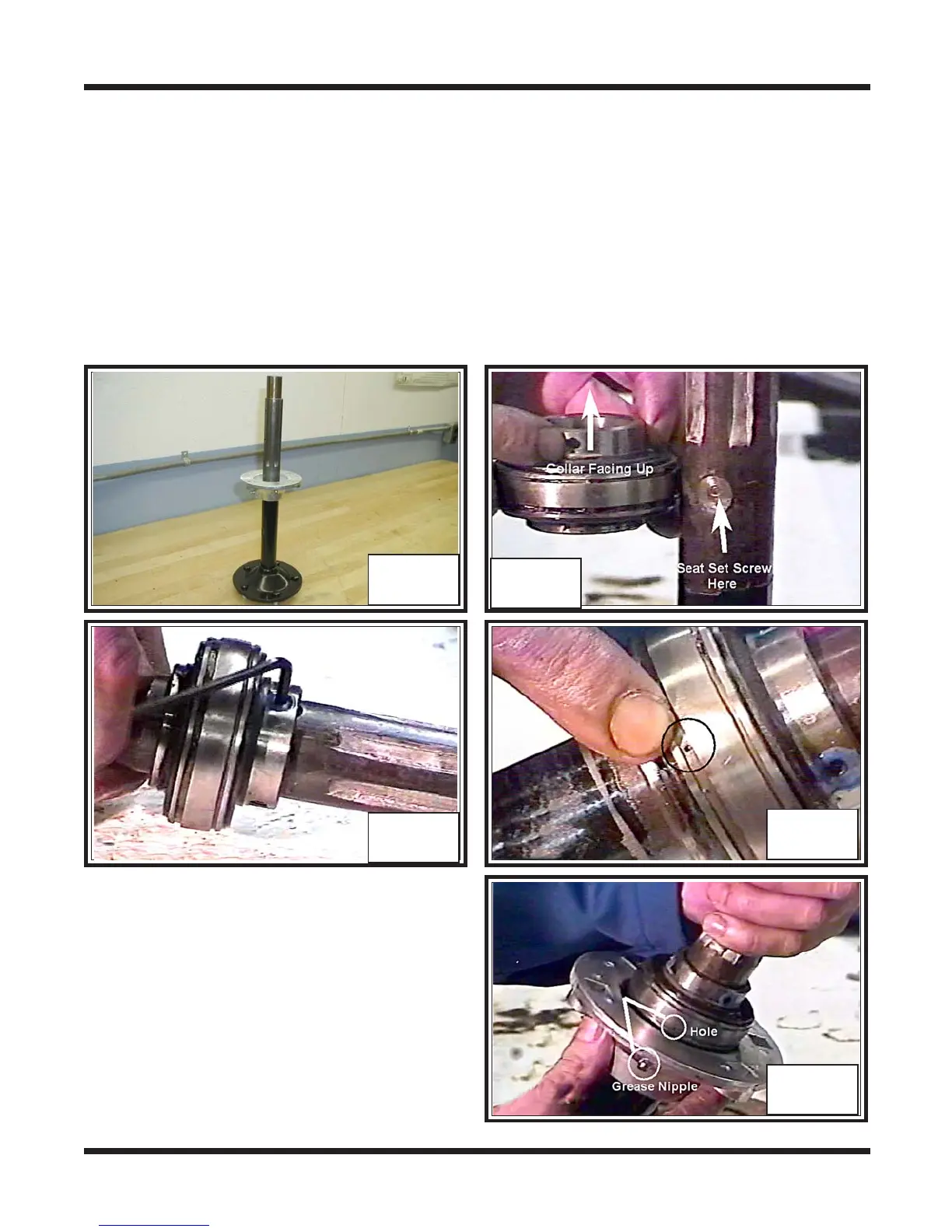

3. Slip the outer bearing greasable flange over the axle shaft. Photo WA-112
4. Slip the outer bearing over the axle shaft, orienting it with the collar facing up.
Photo WA-113
5. Align the flat machined surface closest to the sprocket end of the axle, with the set
screw hole of the bearing. Apply 242 blue LOCTITE to the threads of the set screw
and install. Torque to specifications. Photo WA-114
6. Install the second set screw as above.
7. Fill the outer bearing cavity with axle grease.
8. Pull the outer flange up and against
the bearing, taking note of the small
hole in the bearing. Align this hole
with the greasable fitting on the
flange. Photo WA-115 & 116
9. Apply anti-seize compound to the
spline of the axle.
WA-112
WA-113
WA-114
WA-115
WA-116
