Argo Service Manual Wheels, Axles & Chains
Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
WA-55

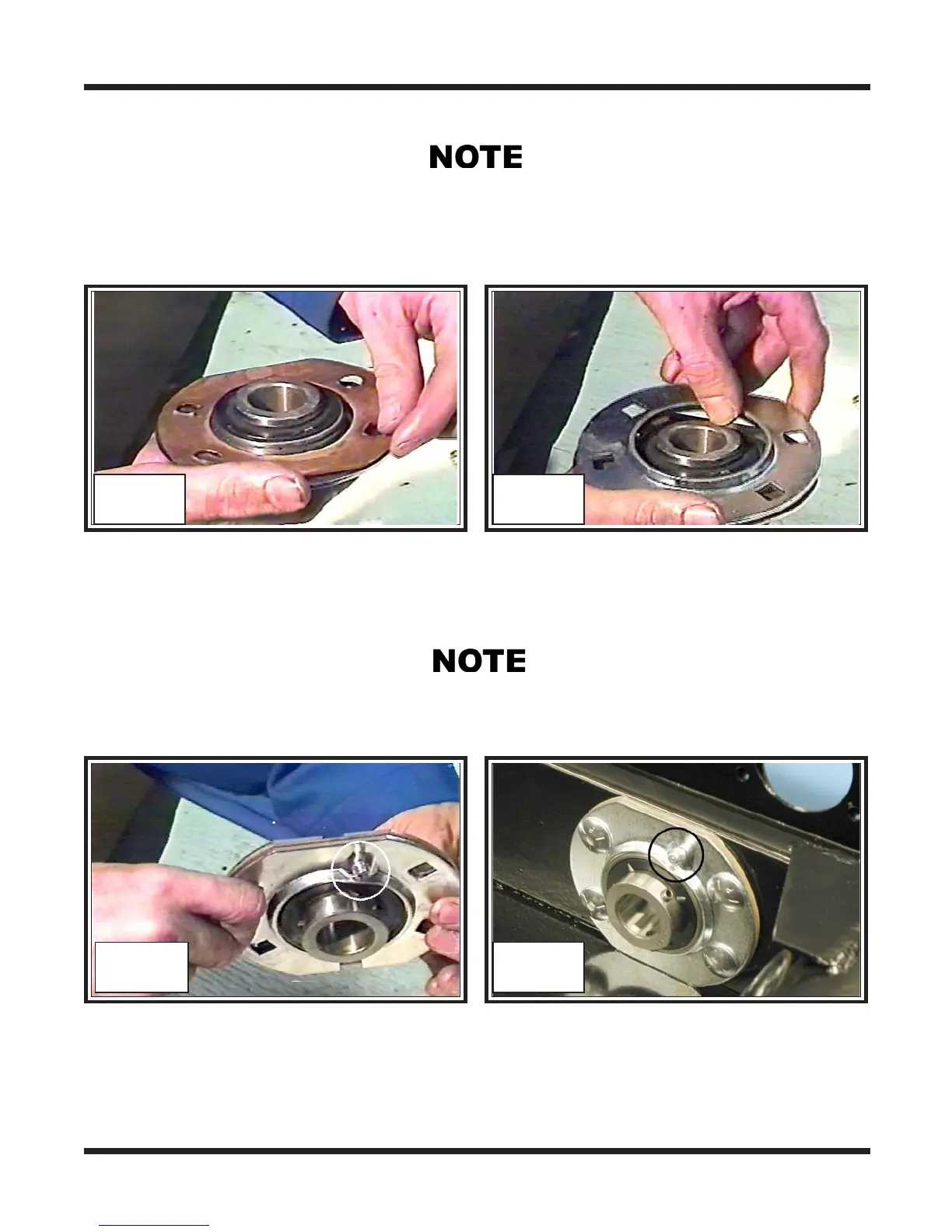

4. Assemble the bearing and flange assembly to the inner frame channel and secure
with the appropriate hardware. Orient the grease fitting facing up.
Photo WA-140 & 141
Be sure that the axle has been installed first to the inner bearing before tightening down
and torquing all flange mounting hardware.
2. Place a gasket to the top of the greasable flange. Photo WA-138
3. Place regular flange to the top of the gasket. Photo WA-139
WA-138
WA-140
WA-139
WA-141
5. Perform the servicing procedure, Installing an Axle.
6. Perform the servicing procedure, Drive Chain Installation.
Vehicles manufactured from serial numbers A13984, R20470, C20468 & B13985 do not
require this inner gasket due to a tooling change to the inner flange assembly.
