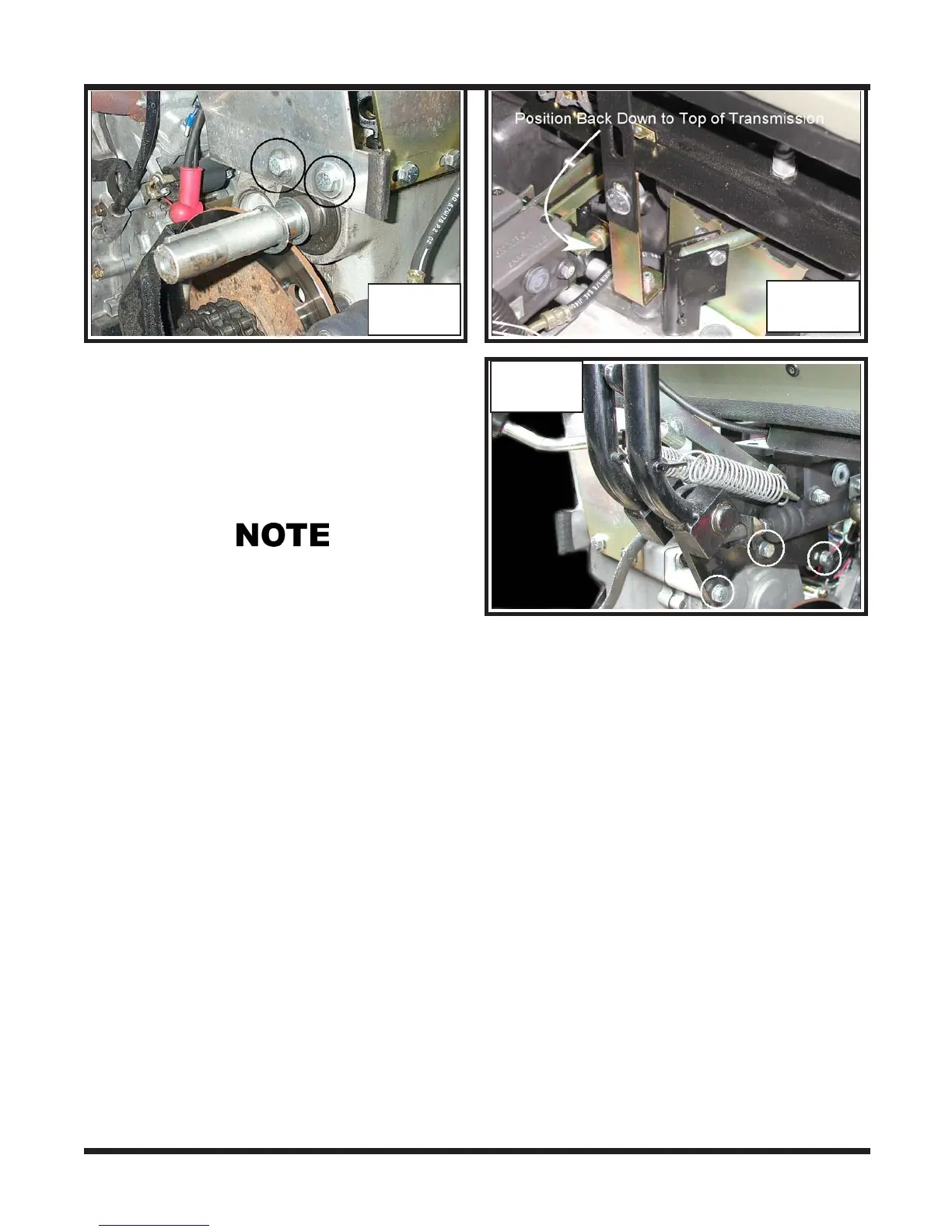

5. If the vehicle utilizes the hydraulic brake
system, reattach the entire assembly to
the transmission using the 3 mounting
bolts and lockwashers. Torque to speci-
fications. Photo TR-218
TR-218
All brake lines and calipers should still be
attached to the assembly. If not, once the
hydraulic brake calipers have been remounted to the transmission and the brake lines
reconnected, the brake fluid system will need to be filled with fresh new fluid and the brake
system will have to bled. Refer to Bleeding the Hydraulic Brake System in this service
guide if necessary.
6. Perform the servicing procedure, Installing the Brake Disc.
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
A small number of vehicles used a shim washer in behind the brake disc. This shim
washer will need to be installed to the output shaft before the brake disc is slipped
on. This is required to align the brake disc to the hydraulic caliper properly. Take
note of the transmission serial number to correctly identify these vehicles.
They are as follows:
All 6 wheel hydraulic brake vehicles with serial numbers between BF11321 & BF11390
All 8 wheel vehicles with serial numbers between RB16700 & CB16778
