Ontario Drive & Gear Limited www.odg.com
PH.(519)- 662-2840 FAX (519)- 662-2421
TR-8A
Transmission Argo Service Manual

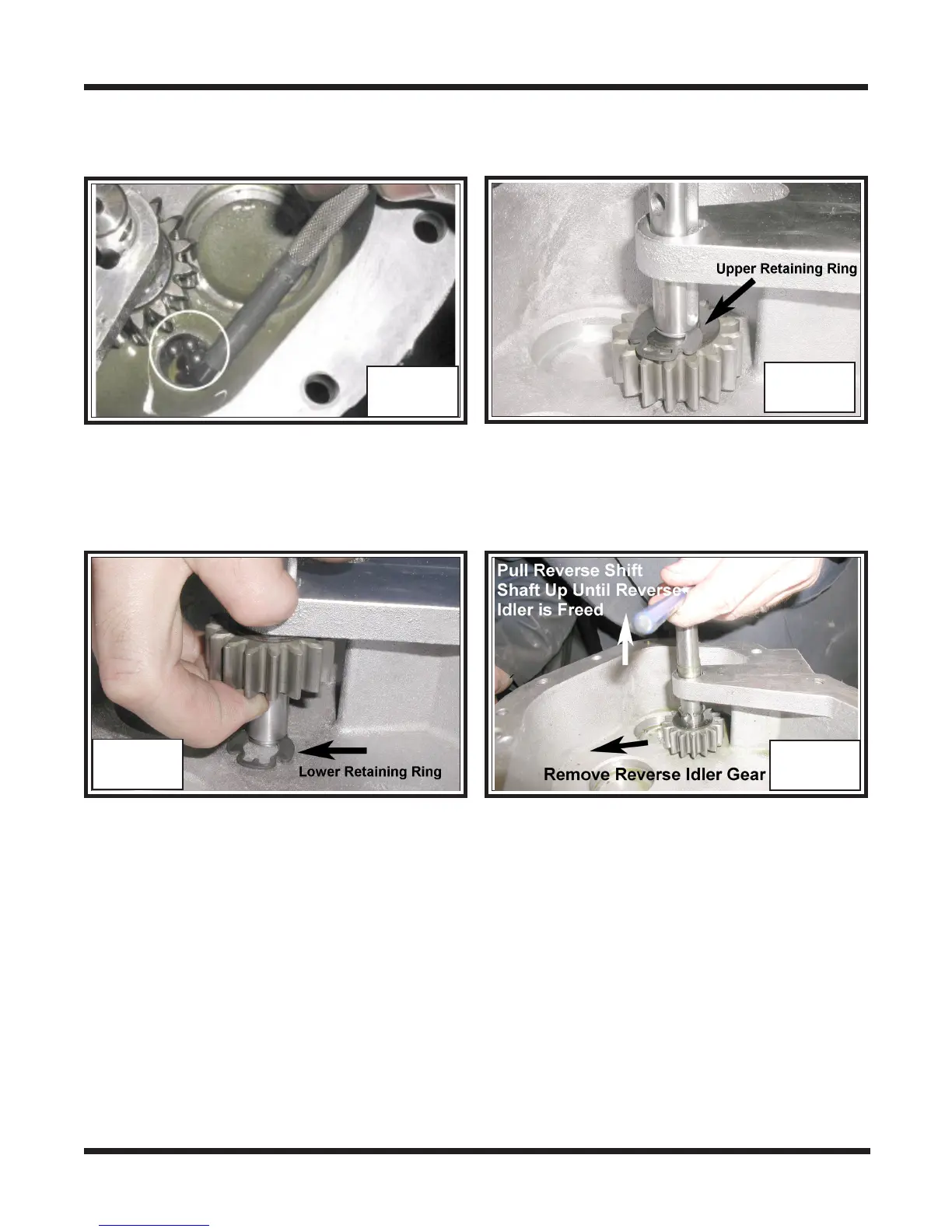

28. Remove the 3 steel balls located in the housing, between the hi/lo shift shaft and the
reverse shift shaft. Photo TR-34
TR-34
TR-36
29. To remove the reverse shift shaft and reverse idler gear from the housing, first re-
move the retaining ring located above the reverse idler. Photo TR-35
TR-35
TR-37
There is 1 Thrust Washer to the top side of the reverse idler gear and a Retaining
Thrust Washer to the underside of the reverse idler gear
33. Remove the reverse shift shaft from the housing. Photo TR-38
34. Remove the last ball and spring from the housing. Photo TR-39
30. Raise the reverse idler up and remove the retaining ring found below. Photo TR-36
31. Pull the reverse shift shaft up and free from the housing. Photo TR-37
IMPORIMPOR
IMPORIMPOR
IMPOR
TT
TT
T
ANTANT
ANTANT
ANT
32. Remove the Steel Dowel Pin from the reverse shift shaft.
