4.2.3.3. Altitude Level-O and Deviation Alert
The Altitude (level-o ) Alert is ARMED and rendered on-screen as a yellow alert ag
next to the Selected Altitude value when the aircraft altitude transitions to within 200
feet or 15 seconds of reaching the selected altitude (Figure 4-23).
When an optional Sonalert tone generator device is installed, a one-second tone
also sounds. Once the current altitude is within ± 25 feet of the Selected Altitude, the
Altitude Alert extinguishes (Figure 4-24).
After reaching the Selected Altitude, if the aircraft’s current altitude diers from
the selected altitude by more than 200 feet, the yellow alert ag ashes. When an
optional Sonalert tone generator device is installed, a one-second tone also sounds.
NOTE
Rotating the knob quickly will change the altitude
value in larger increments.

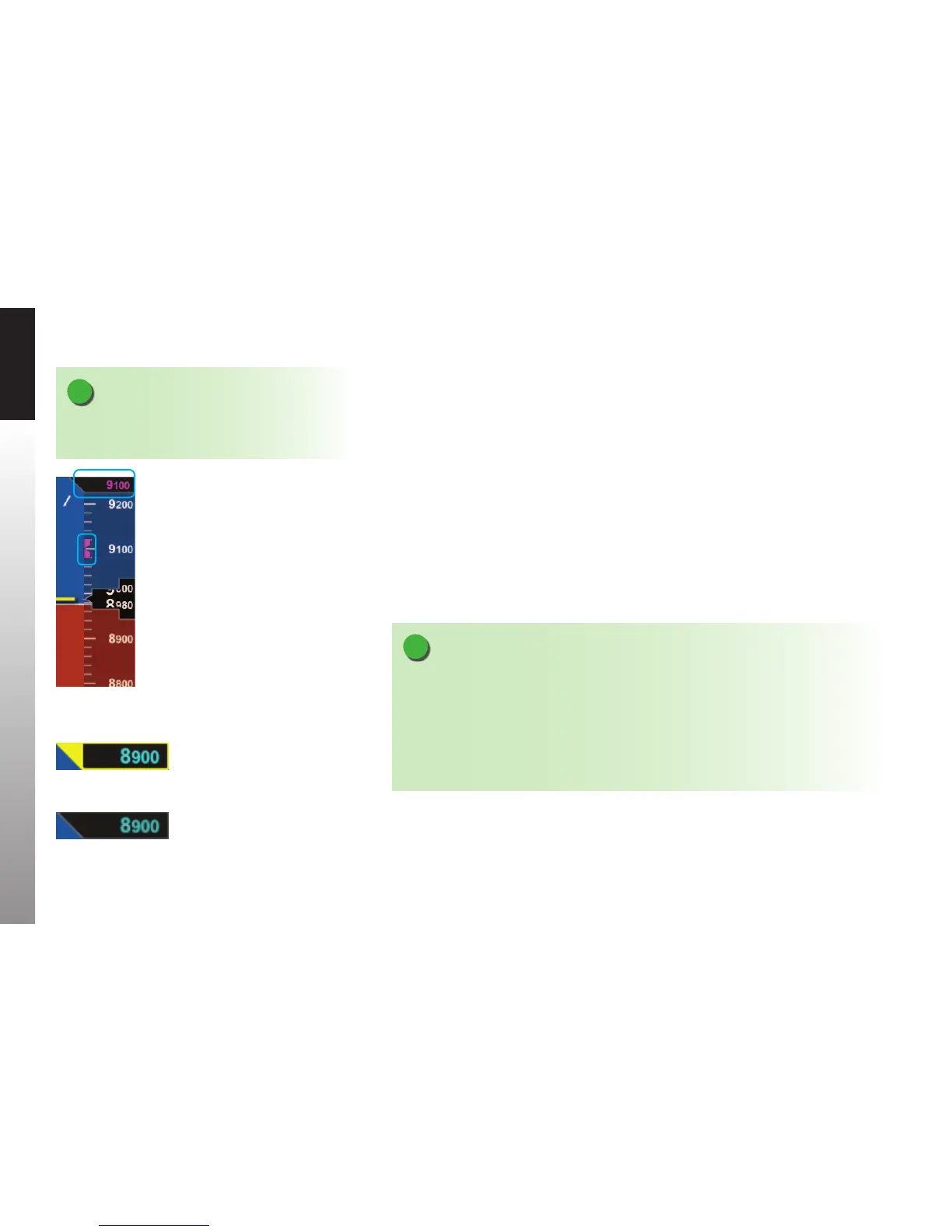

Figure 4-22
Altitude Bug and Altitude Alerter Enabled
Figure 4-23
Altitude Alert
Figure 4-24
Altitude Alert Extinguishes at Selected Altitude
NOTE
Setting the Altitude Alerter provides visual and aural cues to help the pilot capture and
maintain target altitudes. When set to a new altitude, the Alerter will illuminate a yellow ag
adjacent to the target altitude display and sound a one-second tone; 15 seconds (or 200 feet)
before the aircraft will reach the target altitude (based on current rate of climb or descent).
The yellow ag will extinguish once the target is reached. Subsequently, if the aircraft deviates
more than 200 feet above or below the target altitude, the ag will again illuminate, and
another one-second tone will sound to alert the pilot to thedeviation.
