CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000 C3 Pro PFD Pilot’s Guide
CAUTION

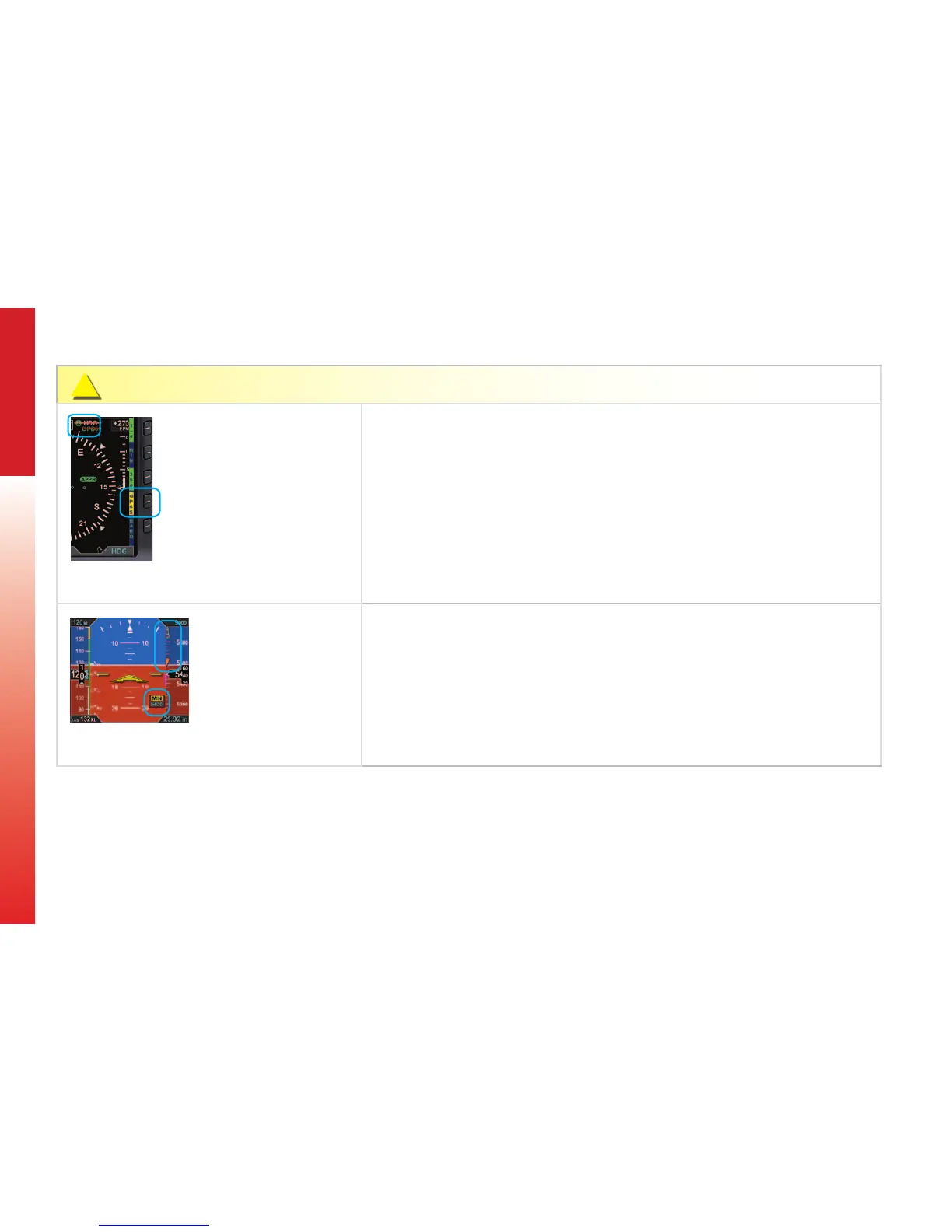

Figure 6-27
GPSS Source Lost/Changed
Presented when the previously enabled and valid GPSS source is lost or has changed. Indicates the
GPSS Wings Level mode.
Figure 6-28
Minimums Caution
The Minimums Markers are presented on the altitude tape and the Selected Minimums Field is
presented on the Attitude Display when the MIN Hot Key is selected. The markers include three
components – a green triangle at 500 ft. above minimums, a hollow yellow triangle at 100 ft. to 200
ft. above minimums, and a red and yellow striped triangle at the selected minimums.
The MIN legend in the Selected Minimums Field turns inverse amber to alert the pilot whenever
the aircraft is at or below the selected minimums setting. When congured, an optional Sonaltert
generates a one-second stuttered tone .
Table 6-2
Caution Annunciations
