CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000 C3 Pro PFD Pilot’s Guide
ADVISORY

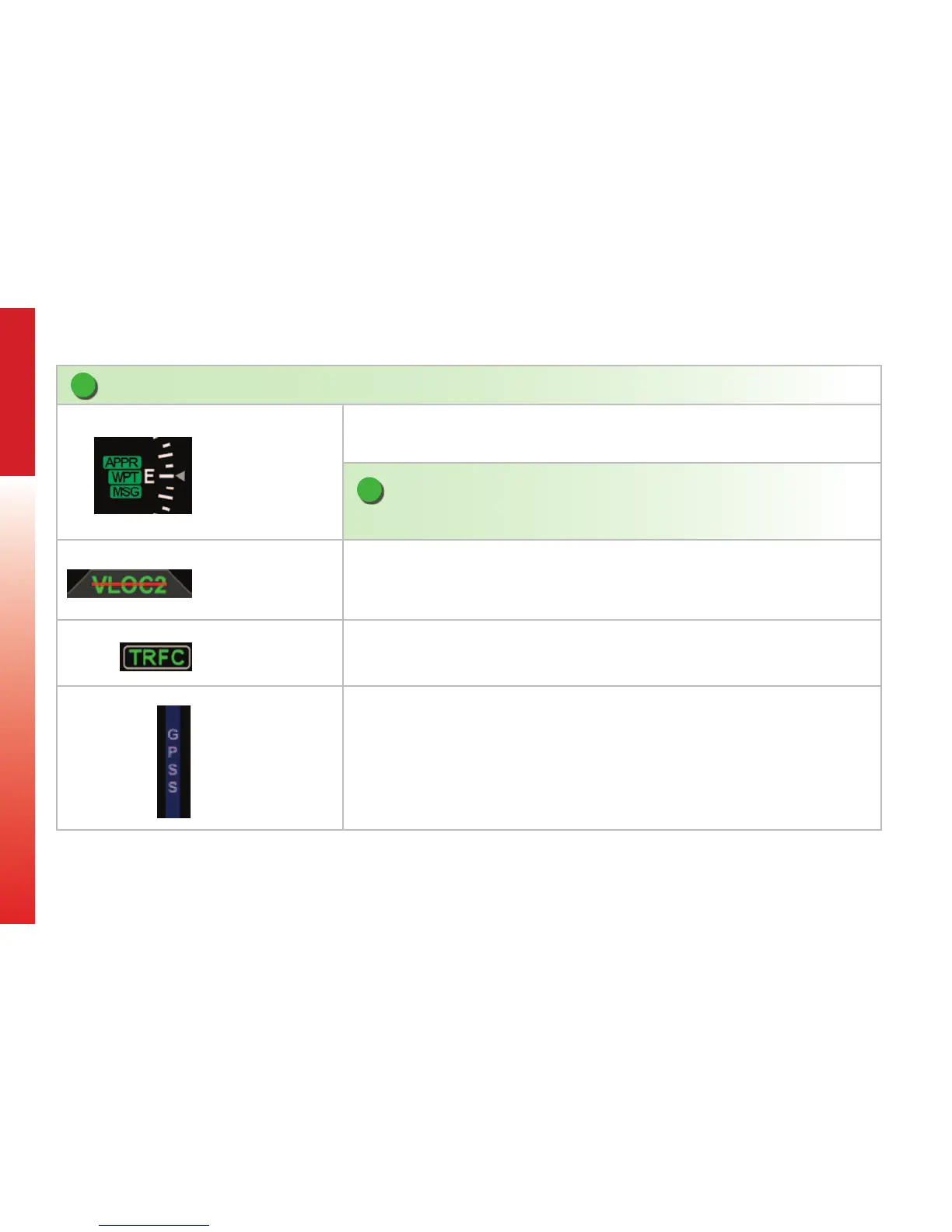

Figure 6-31
GPS Annunciations
Associated with the GPS and the Selected CDI Navigation Source (see the GPS AFMS for
moreinformation).
NOTE
These annunciations do not display for RS232-based GPS.
Figure 6-32
Navigation Source Invalid or
Unavailable
A horizontal red line through the Selected CDI Navigation Source indicates that the data from the
source is invalid or unavailable.
Figure 6-33
Trac Enabled
Indicates the trac sensor is enabled.
Figure 6-34
GPSS Disabled
GPSS Hot Key label with a blue background and gray letters indicate that the GPSS is disabled.
Table 6-3
Advisory Annunciations
