CHAPTER 2 CONTROLS AND DISPLAY
Page 2-2
091-00019-001 REV B
Page 2-3
091-00019-001 REV BEFD1000 C3 Pro PFD Pilot’s Guide
2.1. Controls & Display Orientation
ATTITUDE DISPLAY
16 Attitude Display
17 Aircraft Reference Symbol
18 Single-Cue Flight Director
2
19 Roll Pointer
20 Slip/Skid Indicator
21 Altitude Tape
22 Selected Altitude Field (controls the Altitude Bug)
23 Altitude Alerter
24 Numerical Altitude Indication, Altitude Drum/
Pointer
25 Altitude Trend Vector
26 Altitude Bug
27 Decision Height Annunciation
3, 4
28 Selected Minimums Field
29 Radio Altitude
3, 4
30 MINIMUMS Marker
31 LDI Navigation Source Indication
32 Airspeed Tape
33 Selected Airspeed Field (controls the Airspeed Bug)
34 Airspeed Bug
35 Numerical Airspeed Indicator, Airspeed Drum/
Pointer
36 Vertical Deviation Indicator (VDI)
37 Lateral Deviation Indicator (LDI)

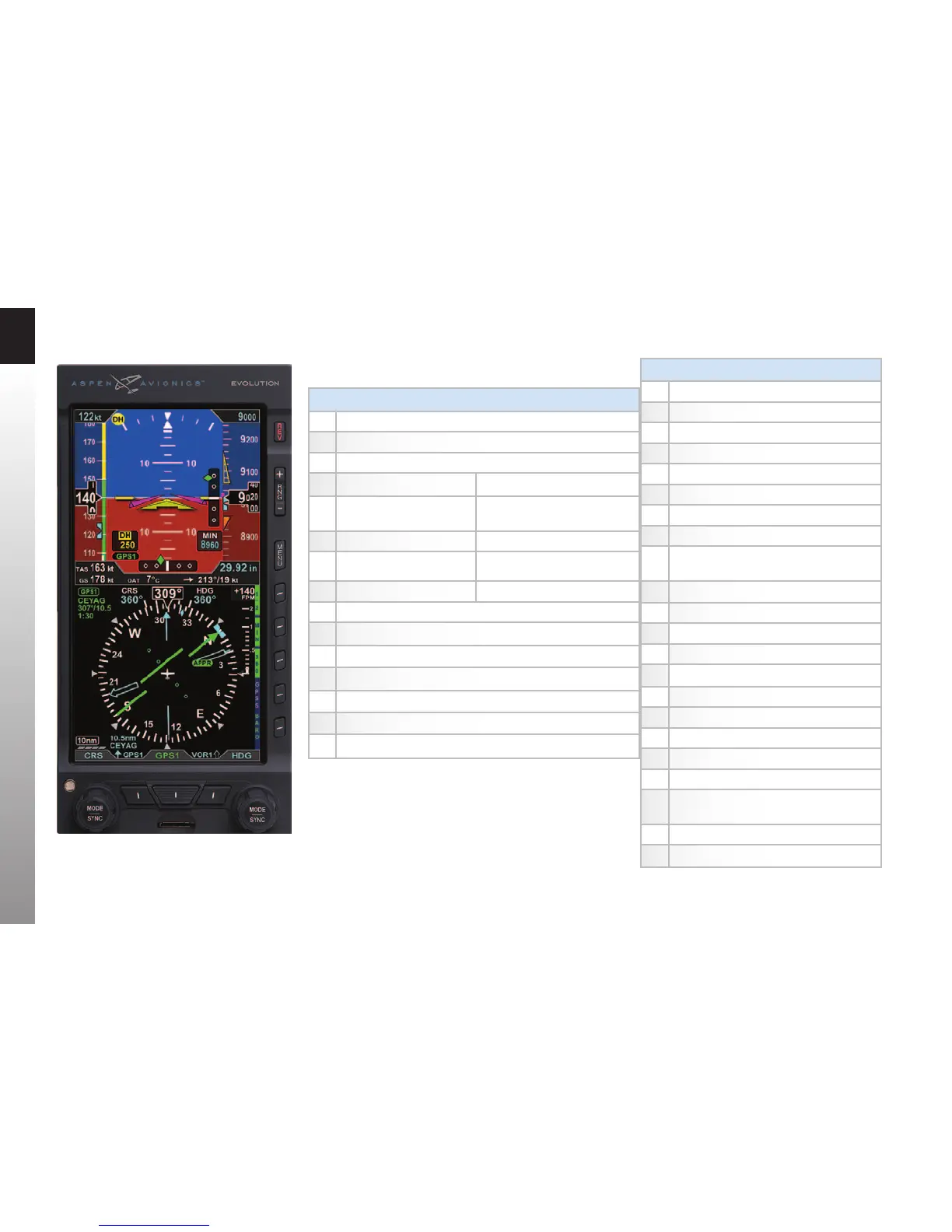

Figure 2-1
EFD1000 C3 Pro PFD
CONTROLS
1 Reversion and Power Button
2 Range Buttons
3 Menu Button
4 1/2 Hot Key Menu 1 of 2
4
2/2 Hot Key Menu 2 of 2
1, 4
5 MIN - Minimums
On/O
4
No function
6 360/ARC View No function
7 GPSS - GPS Steering On/O
4
TRFC – Trac Overlay On/O
8 BARO BARO
9 Right Knob
10 Lower Right Button, Double-Line Bearing Pointer Source Select
11 CDI Navigation Source Select Button
12 Lower Left Button, Single-Line Bearing Pointer Source Select
13 Left Knob
14 Automatic Dimming Photocell
15 microSD Card Slot
