CHAPTER 3 FLYING THE EFD1000 C3 PRO PFD
Page 3-10
091-00019-001 REV B
Page 3-11
091-00019-001 REV B EFD1000 C3 Pro PFD Pilot’s Guide
Select Map Declutter Level
The Map Declutter function can be found in the 360 MAP SETTINGS page or in the ARC
MAP SETTINGS page of the MENU (Figure 3-13). The Map Declutter Icon is located
on the bottom left of the Nav Display (Figure 3-13a) The Declutter settings can be
congured to Levels 4, 3, 2, 1, or 0 (Figures 3-13b thru 3-13f) (see Chapter 5, Table 5-9
for more details).
To change the Map Declutter Level
1. Press the MENU Button and rotate the Right Knob to the 360 MAP SETTINGS
or the ARC MAP SETTINGS page.
2. Press the DCLTR LVL Menu Key and rotate the Right Knob to select the
desired declutter level, then press MENU Button to exit.

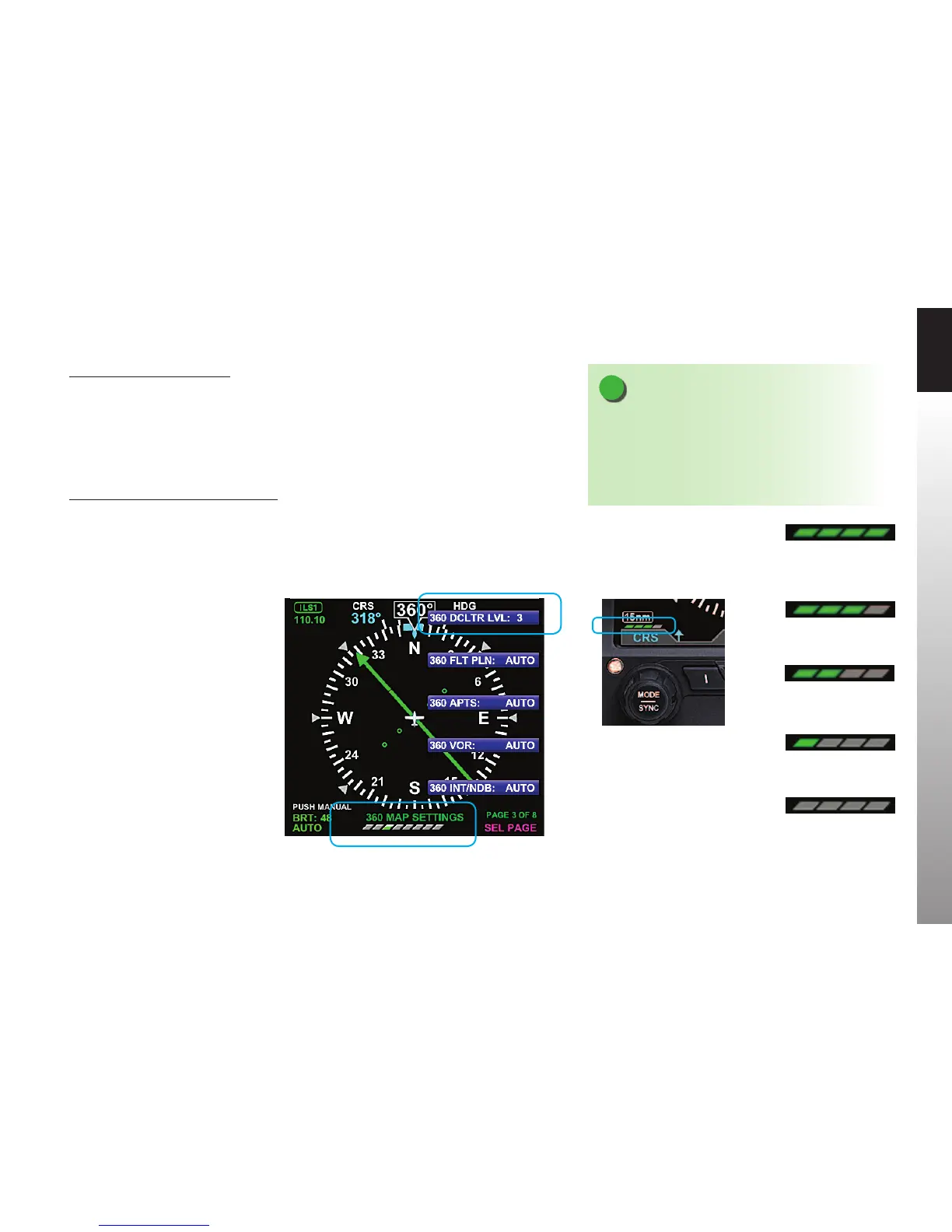

Figure 3-13
Changing the Map Declutter Level
NOTE
The Basemap symbols and flight plan legs rendered
for each of the map’s declutter levels (4, 3, 2, 1, or 0) are
based on the selected map range. These are manually
configured to display or not from the MENU. Detailed
information is provided in Chapter 5, Section 5.2.
Figure 3-13b
Declutter Level 4
Figure 3-13c
Declutter Level 3
Figure 3-13d
Declutter Level 2
Figure 3-13e
Declutter Level 1
Figure 3-13f
Declutter Level 0
Figure 3-13a
Map Declutter Icon Location
