4.2.3.4. MINIMUMS Annunciation
The PFD provides an adjustable MINIMUMS eld to enhance situational awareness
during instrument approaches. The PFD provides a MINIMUMS annunciation with a
series of markers on the Altitude Tape that provide the pilot with improved awareness
when approaching and operating at minimums. There are three dierent color
markers that are shown on the Altitude Tape that are associated with the MINIMUMS
Annunciation, as described in Table 4-1.

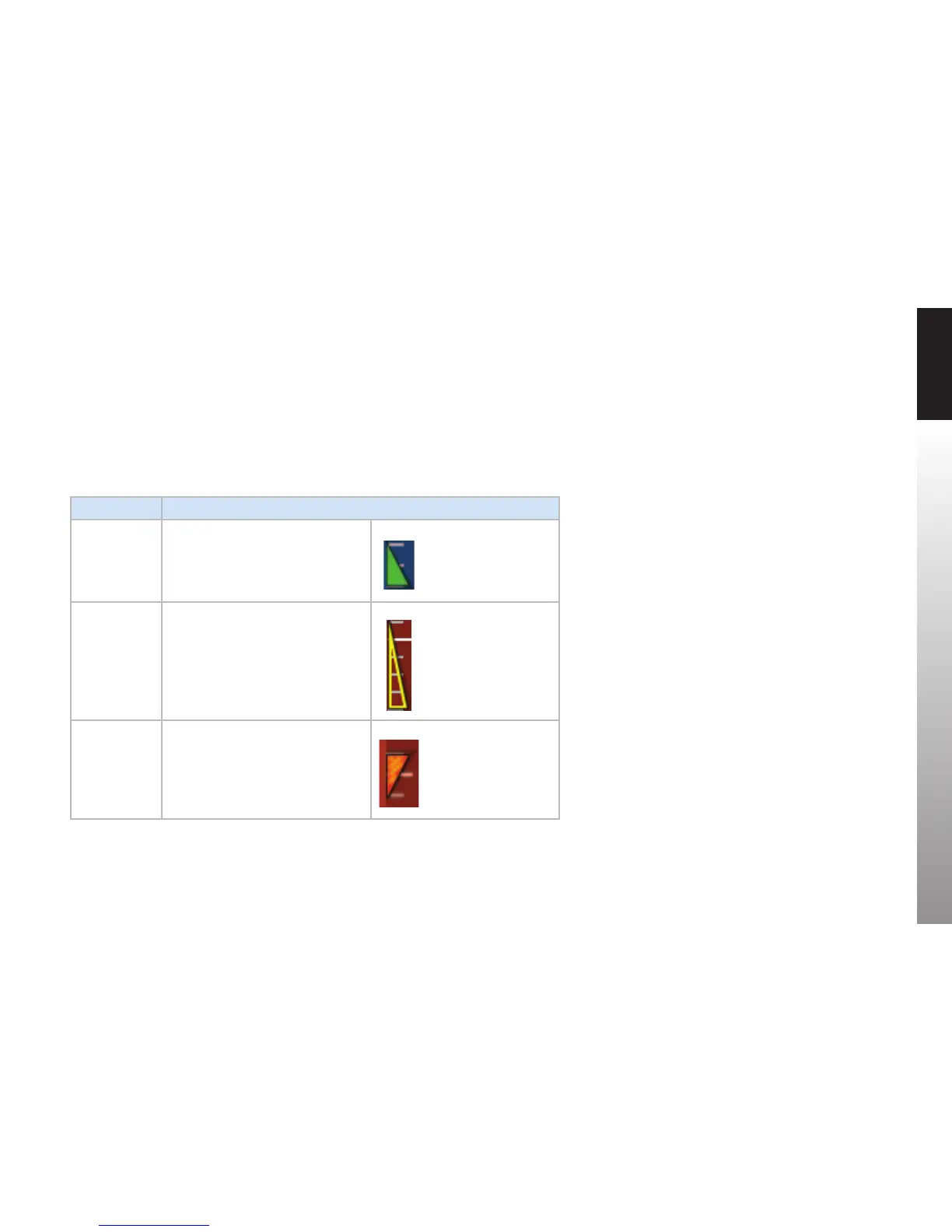

Marker Color Description
Green
The aircraft is 500 feet above selected
MINIMUM.
Figure 4-25
Minimums Green Triangle
Hollow Yellow
The aircraft is 100 feet to 200 feet
above the selected MINIMUM.
The marker base is at 100 feet above
MINIMUM, and the tip is at 200 feet
above MINIMUM.
Figure 4-26
Minimums Hollow Yellow
Triangle
Red and
Yellow stripes
The aircraft is at the selected
MINIMUM.
Figure 4-27
Minimums Red/Yellow Striped
Triangle
Table 4-1
Selected MINIMUMS Markers
