Aspen Avionics Evolution EFD 1000 C3 Pro PFD - Figure 2-35 Navigation Display Components

CHAPTER 2 CONTROLS AND DISPLAY
Page 2-30
091-00019-001 REV B
Page 2-31
091-00019-001 REV B EFD1000 C3 Pro PFD Pilot’s Guide
66
59
60
70
69
65
51 50
44
61
53
49
46
48
45
55
54
58
47
52 56
57
68
63
62
64 67

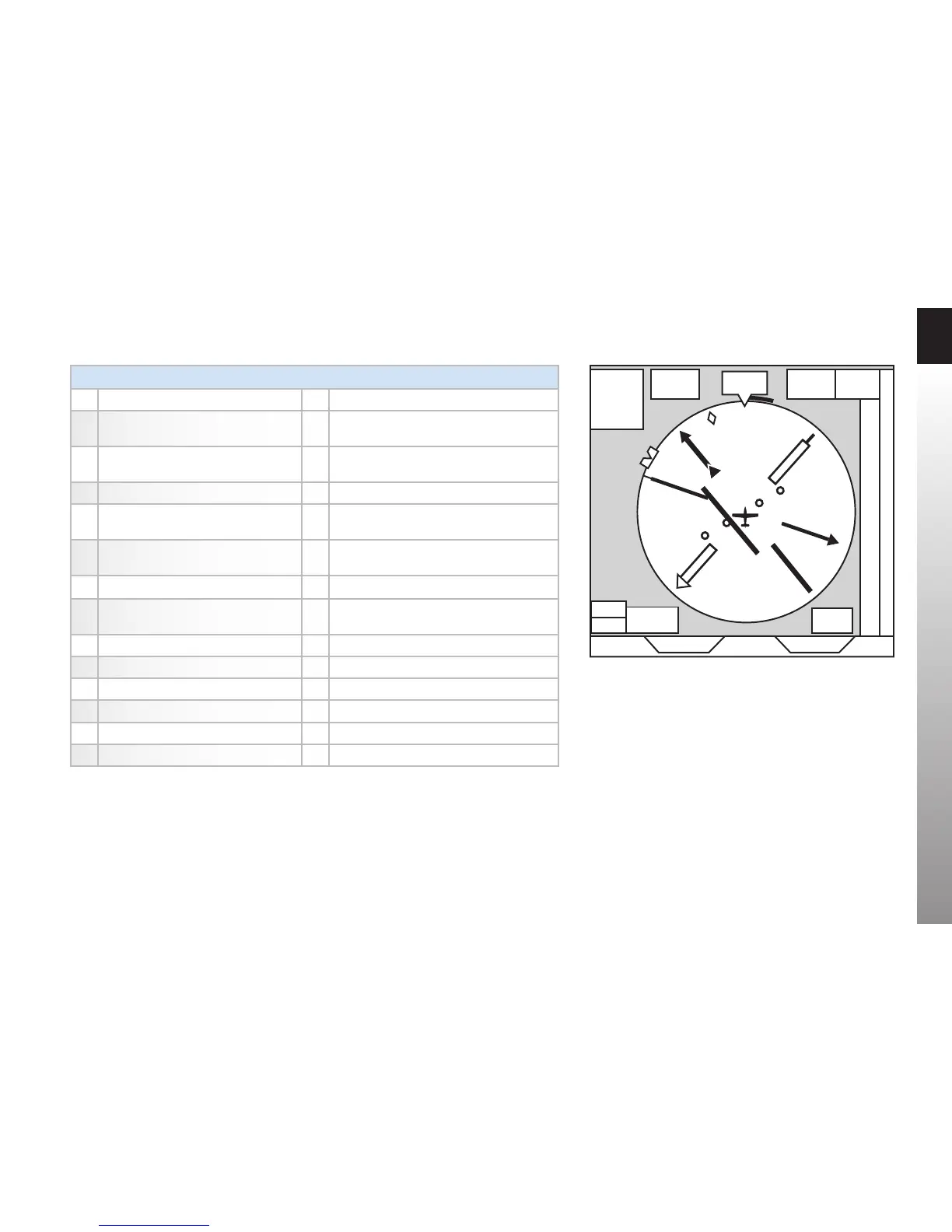

Figure 2-35
Navigation Display Components
NAVIGATION DISPLAY
44 Navigation Display 58 Single-Line Bearing Pointer
45 Ownship Symbol 59 Single-Line Bearing Pointer Navigation
Source
46 Course Pointer 60 Single-Line Bearing Pointer Navigation
Source Info Block
47 TO/FROM Indicator 61 Double-Line Bearing Pointer
48 Rate of Turn Indicator 62 Double-Line Bearing Pointer Navigation
Source
49 Ground Track Marker 63 Double-Line Bearing Pointer Navigation
Source Info Block
50 Magnetic Heading 64 Selected CDI Navigation Source
51 Selected Course (CRS) Field 65 Selected CDI Navigation Source
Information Block
52 Selected Heading Field 66 Left Knob State
53 Heading Bug 67 Right Knob State
54 Course Deviation Scale 68 Hot Key Legend
55 Course Deviation Indicator 69 Navigation Display Range
56 Vertical Speed Numerical Value 70 Navigation Display Declutter Level
57 Vertical Speed Indicator Tape
Table 2-9
Navigation Display Components
